Module: Leaflet Map


Recommended Posts

The ProcessWire modules directory link for Fieldtype Leaflet Map Marker is pointing to the master branch's ZIP archive which is the 2.8.1 version. I'm assuming that needs to be updated to point to the proper Github location.

  • Like 2
Link to post
Share on other sites

I installed the version 3.0.3 (PW3) and tested the geocoding and It can't find many places and even street numbers. Please correct me if I'm wrong but Google Geocoding can't work without an API key and the module doesn't ask for a key so it's probably using Leaflet's default geocoding cause when I search for example "Terra Vibe Park" I'm getting Nothing found but if I go on this sample that uses Leaflet with Esri Geocoding and search for "Terra Vibe Park" it will find it. Shouldn't be better to update the module to use Esri Geocoding? According to that sample code it doesn't seem to require any API key.

Link to post
Share on other sites

I started working on a module that will use exclusively the Esri Geocoding.

Since you're using the Leaflet Control Geocoder on your module that supports various geocoders, you should update it to let the user select which one they want to use by supplying their API key if the selected geocoder requires it.

EDIT: Unfortunately Esri isn't free.

Link to post
Share on other sites

Is it possible to use Leaflet's layer groups with this module? I have three pages, each containing a map, each one showing a different kind of data. I'd like to be able to have one map that shows all three types of data with the ability to turn layers on and off, each type being a different layer.

I'm thinking that the best way to do this is going to be by using the module to handle the backend, geocoding the data in the relevant pages/child pages, but using plain Leaflet.js to output the data on the front-end. Any other thoughts/suggestions would be appreciated though.

Link to post
Share on other sites

Dear Mats,

I'm trying to get your Leaflet Map Module with PJAX to work. I'm using the MoXo https://github.com/MoOx/pjax library but seem to have some troubles with it: I managed to configure PJAX that the inline JavaScript is executed after every page fetch, but I get Error: Map container is already initialized.

Any ideas how to approach this?

EDIT:

I decided to use my own code with the standard Leaflet library and getting the marker with data attributes:

.map(data-lat=$map->lat data-lng=$map->lng data-zoom=$map->zoom data-address=$map->address)

initializing the map with

import L from "leaflet";
document.addEventListener("DOMContentLoaded", function(event) {
  let container = document.querySelector(".map");
  let mymap = L.map(container).setView([container.dataset.lat, container.dataset.lng], container.dataset.zoom);
  L.tileLayer('https://api.tiles.mapbox.com/v4/{id}/{z}/{x}/{y}.png?access_token={accessToken}', {
  maxZoom: 18,
  id: 'mapbox.outdoors'}).addTo(mymap);
  let marker = L.marker([container.dataset.lat, container.dataset.lng])
  }).addTo(mymap);
});

and triggering DOMContentLoaded in pjax:

document.addEventListener("pjax:success", function(event){
  window.document.dispatchEvent(new Event("DOMContentLoaded", {
    bubbles: true,
    cancelable: true
  }));
});



  • Like 1
Link to post
Share on other sites
  • 2 weeks later...

I tried using this module on a new website and it looks like it's no longer functioning, probably due to the Google Api issues.

When I add a new Field I immediately get the error "Error geocoding address" and cannot update the address without getting this error, and it no longer returns the lat/lng points when I change the address.

Link to post
Share on other sites
  • 4 weeks later...

This module is great, essential. Unfortunately I can't yet get it to work on my front end. The map doesn't show up due to a javascript/jquery conflict.

The module outputs regular jquery script starting with $(function() { ... If I manually add the following alternative to the footer it works fine, the map shows up in all its CartoDB glory:

Spoiler

var jMap = jQuery.noConflict();

jMap(function() {
var mleafletmap1 = new jsMarkupLeafletMap();
mleafletmap1.setOption('zoom', 18);
mleafletmap1.setOption('scrollWheelZoom', 1);

mleafletmap1.init('mleafletmap1', 43.660072, -79.354134, 'CartoDB.Positron');
var default_marker_icon = L.AwesomeMarkers.icon({ icon: 'home', iconColor: 'white', prefix: 'fa', markerColor: 'darkblue' });
mleafletmap1.addMarkerIcon(default_marker_icon, 43.660072, -79.354134, '/events/myeventtitle/', 'My Event Title', '');
});



How can I get the module to do the same? Or get around this problem some other way?

Edit:

I have replaced the following line in MarkupLeafletMap.module:

$inlineScript = "<script type='text/javascript'>\n$(function() {\n" .

with this:

$inlineScript = "<script type='text/javascript'>\nvar jMap = jQuery.noConflict();\njMap(function() {\n" .

Now the module works as expected.

Could you make that part of the module for next updates? With jLeaflet instead of the more generic jMap. Or is there a good reason not to do it like this or a more cleverer way to avoid jquery conflicts?







Link to post
Share on other sites
  • 2 weeks later...

The 'address' field is supposed to output the address you entered.

echo $page->map->address;	// outputs the address you entered

But it actually outputs whatever the map thinks is at that lat-long, with a lot of unnecessary details added, something like this:

Quote

WhatThisPlaceUsedToBeCalled, 12, Street Name, Corktown, Old Toronto, Toronto, Ontario, M4M 1L9, Canada

The address search also insists Water Street is in lower Manhattan when I mean Water Street in Brooklyn. Brooklyn becomes Kings County in map->address; nobody calls it that!

You can force the map to select the right location by dragging the pointer. Now the address is:

Quote

DUMBO Historic District Proposal, Manhattan Bridge lower level, Two Bridges, Manhattan, Manhattan Community Board 3, New York County, New York City, New York, 10002, USA

Which is hilarious and completely useless.

Is there a way to keep/store the actual "address you entered"? Or else a way to format that map->address into something usable?

Link to post
Share on other sites

Thank you for this module!
It works great but I have some problems with the options not getting recognised.
(Iam using the dev version, because of the geocoding issues with google maps)

Since I use the map as a fullscreen background I need to disable the zoom on scroll feature for usability.
The option for the marker are working but the leaflet options scrollWheelZoom and dragging are ignored.
This is my code:

$map = $modules->get('MarkupLeafletMap');

$options = array('markerIcon' => 'flag', 'markerColour' => 'red', 'scrollWheelZoom' => false, 'dragging' => false);
echo $map->render($page, 'map', $options);

another option would be to disable this after init with map.scrollWheelZoom.disable()
But this is also not working, because map is not defined. Whats the name of the map instance in js?

Link to post
Share on other sites
  • 2 weeks later...

Hi everybody,

I'm using the dev-version, sans google api with ProcessWire 3.0.123 but unfortunately my map doesn't appear (blank div on the page): http://processwire.marcoangeli.net/about/

here are my settings:



_init.php

$map = $modules->get('MarkupLeafletMap');


_head.php

<?php echo $map->getLeafletMapHeaderLines(); ?>

<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.0/jquery.min.js"></script>


basic-page.php

echo $map->render($page, 'map');



Do I miss some basic setting?



Thanks!







Link to post
Share on other sites

There's a problem with your JavaScript and CSS Files, many 404 Errors (Console output of google chrome):

font-awesome.min.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
MarkerCluster.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
MarkerCluster.Default.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet-providers.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet.awesome-markers.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet.markercluster.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
MarkupLeafletMap.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet.awesome-markers.min.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet-providers.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
MarkupLeafletMap.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet.awesome-markers.min.js:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet.awesome-markers.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
(index):67 Uncaught ReferenceError: jsMarkupLeafletMap is not defined
    at HTMLDocument.<anonymous> ((index):67)
    at j (jquery.min.js:2)
    at Object.fireWith [as resolveWith] (jquery.min.js:2)
    at Function.ready (jquery.min.js:2)
    at HTMLDocument.K (jquery.min.js:2)
/favicon.ico:1 Failed to load resource: the server responded with a status of 404 (Not Found)
font-awesome.min.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
leaflet.awesome-markers.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
MarkerCluster.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)
MarkerCluster.Default.css:1 Failed to load resource: the server responded with a status of 404 (Page Not Found)

And the links:

		<link rel="stylesheet" type="text/css" href="/site/modules/FieldtypeLeafletMapMarker/assets/font-awesome-4.6.3/css/font-awesome.min.css">        <!-- Styles supporting the use of Leaflet.js -->
        <link rel="stylesheet" type="text/css" href="https://unpkg.com/leaflet@1.0.3/dist/leaflet.css" />
        <link rel="stylesheet" type="text/css" href="/site/modules/FieldtypeLeafletMapMarker/assets/leaflet-markercluster/MarkerCluster.css" />
        <link rel="stylesheet" type="text/css" href="/site/modules/FieldtypeLeafletMapMarker/assets/leaflet-markercluster/MarkerCluster.Default.css" />

        <!-- Scripts supporting the use of Leaflet.js -->
        <script type="text/javascript" src="https://unpkg.com/leaflet@1.0.3/dist/leaflet.js"></script>
        <script type="text/javascript" src="/site/modules/FieldtypeLeafletMapMarker/assets/leaflet-markercluster/leaflet.markercluster.js"></script>
        <script type="text/javascript" src="/site/modules/FieldtypeLeafletMapMarker/assets/leaflet-providers/leaflet-providers.js"></script>
        <script type="text/javascript" src="/site/modules/FieldtypeLeafletMapMarker/MarkupLeafletMap.js"></script>

        <!-- Extend Leaflet with Awesome.Markers -->
        <link rel="stylesheet" type="text/css" href="/site/modules/FieldtypeLeafletMapMarker/assets/leaflet-awesome-markers/leaflet.awesome-markers.css" />
        <script type="text/javascript" src="/site/modules/FieldtypeLeafletMapMarker/assets/leaflet-awesome-markers/leaflet.awesome-markers.min.js"></script>



  • Like 1
Link to post
Share on other sites

hey zoeck,

thanks for the suggestions.

On my html I've got this code:

<link rel="stylesheet" type="text/css" href="/site/modules/FieldtypeLeafletMapMarker/assets/font-awesome-4.6.3/css/font-awesome.min.css">

but there's no FieldtypeLeafletMapMarker folder inside my module directory.

Instead I have MarkupLeafletMap folder with all the assets inside...

very strange.

I'll investigate further...

Link to post
Share on other sites

hey zoeck, thank you for the feedback.

I finally resolved the issue: I installed the module by uploading the zip file: that didn't work. Then I uninstalled everything and followed the instructions:

I created a folder named "FieldtypeLeafleftMapMarker" with everything inside and that worked.

Thanks again.

Link to post
Share on other sites
  • 3 weeks later...

Hey @Mats,
great module! I was playing around with pages->find today and was getting matches for pages that didn't have map markers stored to them, or at least I thought. On closer inspection in MySQL I found that there were DB rows for all pages that had the template with my map marker field, not just the ones with actual markers stored.

Most of the empty records look like this

data: EMPTY lat: 0.000000 lng: 0.000000 status: -1 zoom: 0

Some like

data: EMPTY lat: 0.000000 lng: 0.000000 status: -100 zoom: 0

Which I'm assuming would be the ones that once had a marker which was later removed through "Clear"

And some like this:

data: EMPTY lat: 0.000000 lng: 0.000000 status: -100 zoom: 16

Which I guess are pages that someone just fumbled around with the zoom on in the backend 🙂

So in order to find pages with actual map markers right now I'd need to set up my selector like

 template=mytemplate, map_marker.lat!=0, map_marker.lng!=0

Instead of just

map_marker!=""

This might also explain why the marker input field keeps popping up in page edit mode, even though I've set the visibilty to "closed when blank & open when populated".

Am I missing something obvious or is this unintentional behaviour?

Best regards!

Link to post
Share on other sites
  • 3 months later...

Great module.

I had some problems upgrading from 2.8.1 to 3.0.3. Using processwire upgrade doesn't work after several attempts on different sites I had multiple instances of MarkupAddInlineScript different versions and different paths. I finally made a backup of the database table for the field and the field definition (via export) removed the inputfield, then the complete module(s), reinstalled 3.0.3 and restored the field definition and the content to the database.

In this version in the frontend the map with several markers from a pagearray didn't show, Script console said arg.split is not a function.

Took me some time to realize that the init-function was wrong.  The default lat, lng options came with a comma instead of a point

$karte = $map->render($regLocations, 'geolocation', array('width' => '50%', 'height' => '350px', 'id' => 'locMap'));

results in:

locMap.init('locMap', 53,016109, 14,005830, 'OpenStreetMap.Mapnik');

I have to grab the lat, lng values of the first item and put them in the initialization

$karte = $map->render($regLocations, 'geolocation', array('width' => '50%', 'height' => '350px', 'id' => 'locMap', 'lat'=>$firstLoc->lat, 'lng'=>$firstLoc->lng));

to get the right output:

locMap.init('locMap', 53.016109, 14.005830, 'OpenStreetMap.Mapnik');

This might be a localization problem, since the sytem works with german settings.

Link to post
Share on other sites
  • 1 month later...

Hello,
i have imported locations as seperate variables
longtitude and latitude

How to use the module with this templatevars ?
Can anybody give me an example from scratch ? I have to add the css and js files manuelly ? And the how to call the map ?

Thanks

Link to post
Share on other sites
  • 2 weeks later...

Hello

I used this module and all work very well. Thanks for this 😄

I have just 2 questions :

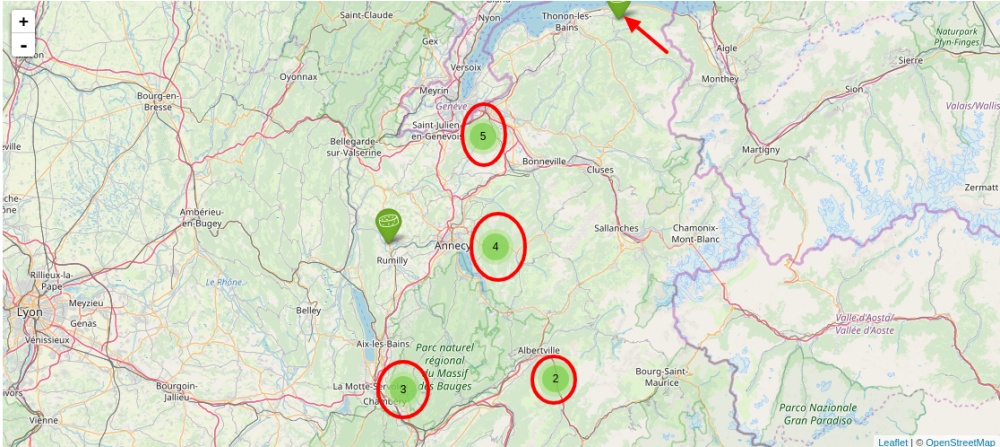

  1. Is there a way/option/hook to not appy the clustering in a multi-markers map ? OR define a threshold (10 markers for example or 100 kilometers between markers or 100 pixels between markers) ?
  2. Is there a way/option/hook to add margin or padding when fitToMarkers is true ? Because some edge markers are cut...

1658934703_pwtommedesavoielocalhost_acteurs_affineurs_.thumb.png.0a31db5eaef7c82ea3a78b5d099527d2.png

Thanks a lot for your help

Link to post
Share on other sites
  • 1 month later...

I'm trying to automatically add pages containing a field with this fieldtype. while all other fields are populated as expected the lat/lng part of my geolocation field keeps its default values. Is there a special syntax to address these

$newPoi = $pages->add("tmbPoi", "$parentPageId->url", [
                'name' => $poi['id'],
                'title' => $poi['name'],
                'PLZ' => $PLZ,
                'Adresse' => $Adresse,
                'body' => $descriptionHtml,
                'geolocation->lat' => $lat,
                'geolocation->lng' => $lng,
                'canonical' => $poi->canonical
            ]);
Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By monollonom
      (once again I was surprised to see a work of mine pop up in the newsletter, this time without even listing the module on PW modules website 😅. Thx @teppo !)
      Github: https://github.com/romaincazier/FieldtypeQRCode
      Modules directory: https://processwire.com/modules/fieldtype-qrcode/
      This is a simple module I made so a client could quickly grab a QR Code of the page's url in the admin.
      There's not much to it for now, but if need be you can output anything using a hook:
      $wire->addHookAfter("FieldtypeQRCode::getQRText", function($event) { $event->return = "Your custom text"; }) You can also output the QR code on your front-end by calling the field:
      echo $page->qr_code_field; The module uses the PHP library QR Code Generator by Kazuhiko Arase. When looking for a way to generate a QR Code in PW I came across @ryan's integration in his TFA module. I'm not very familiar with fieldtype/inputfield module development so I blindly followed @bernhard (great) tutorial and his BaseFieldtypeRuntime. At some point I'll take a deeper look to make a module on my own.
      Some ideas for improvements :
      add the ability to choose what to ouput : page's url / editUrl / file(s) / image(s) / ... allow to output multiple QR codes ?
    • By Chris Bennett
      https://github.com/chrisbennett-Bene/AdminThemeTweaker
      Inspired by @bernhard's excellent work on the new customisable LESS CSS getting rolled into the core soon, I thought I would offer up the module for beta testing, if it is of interest to anyone.

      It takes a different approach to admin styling, basically using the Cascade part of CSS to over-ride default UiKit values.
      Values are stored in ModuleConfig Module creates a separate AdminThemeTweaker Folder at root, so it can link to AdminThemeTweaker.php as CSS AdminThemeTweaker.php reads the module values, constructs the CSS variables then includes the CSS framework Can be switched on and off with a click. Uninstall removes everything, thanks to bernhard's wonderful remove dir & contents function.
      It won't touch your core. It won't care if stuff is upgraded. You won't need to compile anything and you don't need to touch CSS unless you want to.

      It won't do much at all apart from read some values from your module config, work out the right CSS variables to use (auto contrast based on selected backgrounds) and throw it on your screen.
      You can configure a lot of stuff, leave it as it comes (dark and curvy), change two main colors (background and content background) or delve deep to configure custom margins, height of mastheads, and all manner of silly stuff I never use.

      Have been developing it for somewhere around 2 years now. It has been (and will continue to be) constantly tweaked over that time, as I click on something and find something else to do.
      That said, it is pretty solid and has been in constant use as my sole Admin styling option for all of those 2 years.

      If nothing else, it would be great if it can provide any assistance to @bernhard or other contributor's who may be looking to solve some of the quirkier UiKit behavior.
      Has (in my opinion) more robust and predictable handling of hidden Inputfields, data-colwidths and showIf wrappers.
      I am very keen to help out with that stuff in any way I can, though LESS (and any css frameworks/tools basically) are not my go.
      I love CSS variables and banging-rocks-together, no-dependency CSS you can write with notepad.





    • By opalepatrick
      I see old posts saying that repeaters are not the way to go in Custom Process Modules. If that is the case, when using forms (as I am trying to do) how would one tackle things like repeat contact fields where there can be multiple requirements for contact details with different parameters? (Like point of contact, director, etc) or even telephone numbers that have different uses?
      Just for background I am creating a process module that allows me to create types of financial applications in the admin area (no need to publish any of this, pure admin) that require a lot of personal or company information.
      Maybe I am thinking about this incorrectly?
    • By HMCB
      I ran across a reference to IftRunner module. The post was 6 years ago. I cant find it in available modules. Has it been pulled?
    • By tcnet
      PageViewStatistic for ProcessWire is a module to log page visits of the CMS. The records including some basic information like IP-address, browser, operating system, requested page and originate page. Please note that this module doesn't claim to be the best or most accurate.
      Advantages
      One of the biggest advantage is that this module doesn't require any external service like Google Analytics or similar. You don't have to modify your templates either. There is also no Javascript or image required.
      Disadvantages
      There is only one disadvantage. This module doesn't record visits if the browser loads the page from its browser cache. To prevent the browser from loading the page from its cache, add the following meta tags to the header of your page:
      <meta http-equiv="Cache-Control" content="no-cache, no-store, must-revalidate" /> <meta http-equiv="Pragma" content="no-cache" /> <meta http-equiv="Expires" content="0" /> How to use
      The records can be accessed via the Setup-menu of the CMS backend. The first dropdown control changes the view mode.

      Detailed records
      View mode "Detailed records" shows all visits of the selected day individually with IP-address, browser, operating system, requested page and originate page. Click the update button to see new added records.

      Cached visitor records
      View modes other than "Detailed records" are cached visitor counts which will be collected on a daily basis from the detailed records. This procedure ensures a faster display even with a large number of data records. Another advantage is that the detailed records can be deleted while the cache remains. The cache can be updated manually or automatically in a specified time period. Multiple visits from the same IP address on the same day are counted as a single visitor.

      Upgrade from older versions
      Cached visitor counts is new in version 1.0.8. If you just upgraded from an older version you might expire a delay or even an error 500 if you display cached visitor counts. The reason for this is that the cache has to be created from the records. This can take longer if your database contains many records. Sometimes it might hit the maximally execution time. Don't worry about that and keep reloading the page until the cache is completely created.
      Special Feature
      PageViewStatistic for ProcessWire can record the time a visitor viewed the page. This feature is deactivated by default. To activate open the module configuration page and activate "Record view time". If activated you will find a new column "S." in the records which means the time of view in seconds. With every page request, a Javascript code is inserted directly after the <body> tag. Every time the visitor switches to another tab or closes the tab, this script reports the number of seconds the tab was visible. The initial page request is recorded only as a hyphen (-).

      Settings
      You can access the module settings by clicking the Configuration button at the bottom of the records page. The settings page is also available in the menu: Modules->Configure->ProcessPageViewStat.
      IP2Location
      This module uses the IP2Location database from: http://www.ip2location.com. This database is required to obtain the country from the IP address. IP2Location updates this database at the begin of every month. The settings of ProcessPageViewStat offers the ability to automatically download the database monthly. Please note, that automatically download will not work if your webspace doesn't allow allow_url_fopen.
      Dragscroll
      This module uses DragScroll. A JavaScript available from: http://github.com/asvd/dragscroll. Dragscroll adds the ability in view mode "Day" to drag the records horizontally with the mouse pointer.
      parseUserAgentStringClass
      This module uses the PHP class parseUserAgentStringClass available from: http://www.toms-world.org/blog/parseuseragentstring/. This class is required to filter out the browser type and operating system from the server request.
×
×
  • Create New...
