On 5/29/2018 at 2:57 PM, ethanbeyer said:

@Jon this sounds a little strange. Reading most of your comment, I would think that this might have something to do with your Office365 having sending limits that you're going over. The TLS issue is what makes it weird, though - because if it was a limits problem, that would not be happening.

Is there anything in the logs that gives what error is encountered, rather than saying it just stops sending?

Hello Ethan,

Nothing in the logs I've now setup sendinblue and this has resolved the issues so I assumes its 365 like you suggested. The limit would be odd though as its not sending out that many emails

Cheers

Jon

Share this post


Link to post
Share on other sites

Solution to problem found on another forum post but cannot see how to delete this post.




Quote





Edited by MrKing
Problem solved

Share this post


Link to post
Share on other sites

We are getting the "WireMailSmtpConfig: ERROR: SMTP settings did not work" error with these settings (real address replaced with ***).

Local hostname: www.***.com
SMTP Hostname: ***.mail.protection.outlook.com
SMTP Port: 25
SMTP User: (required to be left empty)
SMTP Password: (required to be left empty)
Use START-TLS: Yes

Authentication is made using something called O365 (assuming it means Office 365). Could this be the reason nothing works? Does WireMail: SMTP even work with user and password left empty?

What does the Authentication Mechanism stand for? An IP address?

In the front end when trying to submit from by Formbuilder I get "Notice: Undefined index: replyToName in ***.com/httpdocs/wire/core/WireMail.php on line 319

Share this post


Link to post
Share on other sites

For an outlook.com email address, I use this successfully. Do these work for you?


Share this post


Link to post
Share on other sites

@adrian Unfortunately no. Tech support from the hosting company was also quite sure that the information we've entered is correct.

Share this post


Link to post
Share on other sites

Does anyone know if using SMTP user without a password is a problem? Authentication is taken care of by something else in this case.

Share this post


Link to post
Share on other sites
1 hour ago, MSP01 said:

Authentication is taken care of by something else in this case.

Based on what you have provided so far, here are some links that may or may not help you with your situation:

https://www.fastmail.com/help/technical/ssltlsstarttls.html

https://www.limilabs.com/blog/ssl-vs-tls-vs-starttls-stls

https://www.sparkpost.com/resources/email-explained/ssl-tls-starttls-encyption/





  • Like 1

Share this post


Link to post
Share on other sites

Thank you guys,

The problem was eventually solved. Somebody handling the web server had left some checkbox or other unchecked and that's why nothing worked.

  • Like 2

Share this post


Link to post
Share on other sites

I am having trouble setting this module up on the client's webspace.

Locally it works like charme with the given data (as seen here - only in German: https://www.ionos.de/hilfe/e-mail-office/allgemeine-themen/einstellungen-fuer-ihr-e-mail-programm/)

Locally I use SSL via port 465 (host: smtp.ionos.de)

After copying the whole processwire installation to the clients webspace I updated the hostname but then out of the sudden the SMTP server isn't reachable anymore via SSL (nor TLS). Only unecrypted connections are working. Is there anything obvious I am missing?

Thanks a lot for your support!



Share this post


Link to post
Share on other sites

Is hosting provided by 1&1 as well?

If so... you could ask their support if you have to use another server/port or whatever in that case.

Have you tried another mail service like Gmail? Does that work?

If so... 1&1 might have the right answer.
if not... there is another problem.

What's the complete error message WireMailSmtp shows?

  • Like 1

Share this post


Link to post
Share on other sites

Hi,

I was wondering if there is a reply option too, not only in the back-end...

$mail->sendSingle(true)->to($toEmail, $toName)->replyto($repEmail, $repName)

similar to: $headers.= "Reply-To: $emailFrom\r\n";

Thanks!

Share this post


Link to post
Share on other sites

Hi,

2 minutes ago, videokid said:

a reply option too

One can set such a header entry like: $mail->header('Reply-To', 'my@replyto.address');

  • Like 2

Share this post


Link to post
Share on other sites
On 2/25/2019 at 9:22 PM, wbmnfktr said:

Is hosting provided by 1&1 as well?

If so... you could ask their support if you have to use another server/port or whatever in that case.

Have you tried another mail service like Gmail? Does that work?

If so... 1&1 might have the right answer.
if not... there is another problem.

What's the complete error message WireMailSmtp shows?

Yes, the site is also hosted on 1&1.



And no, also gmail does not work. So proabably something wrong with 1und1. Will ask the support.

Error message is

Quote

ERROR: SMTP settings did not work. +1
could not connect to the host "smtp.ionos.de": Connection timed out



Thanks for pointing me to the obvious things 😉

Share this post


Link to post
Share on other sites

Hi Horst,

would it be possible to implement a feature that overwrites the configuration variables (server, password...) from a config or .env File?
We've got several sites that do auto-deployments to different servers based on the git branch that is used. Currently, when deploying the local development version to a staging system we're copying the dev database and need to adjust the settings by "hand" (we've written a script for that). Having a file based configuration would make it possible to just dump a file on the server and save the config variables in it.

  • Like 1

Share this post


Link to post
Share on other sites
54 minutes ago, felix said:

Hi Horst,

would it be possible to implement a feature that overwrites the configuration variables (server, password...) from a config or .env File?
We've got several sites that do auto-deployments to different servers based on the git branch that is used. Currently, when deploying the local development version to a staging system we're copying the dev database and need to adjust the settings by "hand" (we've wrote a script for that). Having a file based configuration would make it possible to just dump a file on the server and save the config variables in it.

Just in case it's helpful, this is what I do for Tracy - anything that is defined in the $config->tracy() array overwrites the settings stored in the DB.

https://github.com/adrianbj/TracyDebugger/blob/3f1fb2cf0016b8b27cc1019f47e58bce8e2cbd3d/TracyDebugger.module.php#L322-L325

  • Like 1
  • Thanks 1

Share this post


Link to post
Share on other sites
14 hours ago, felix said:

would it be possible to implement a feature that overwrites the configuration variables (server, password...) from a config or .env File?

Hi @felix, I don't want to enable plain text files with server & password settings, but going with the already needed and available site/config.php, as @adrian suggested, seems to be fine. (As it already stores the DB-credentials).

I try to look into it and implement it this weekend. I think this can be useful for a lot of us.

  • Like 3

Share this post


Link to post
Share on other sites

Announcement:

I've created a new branch on github with the requested feature by @felix. Please can you and / or anybody else try this out and give some feedback. If everything is working as expected, I will push this to the master branch.

Short introduction:

You can specify how many and what ever params you want into an array that is called $config->wirmailsmtp. Every valid key of this array will override the key of the stored modules config setting.

// example entry in site/config.php

$config->wiremailsmtp = array(
    "smtp_host"                => "smtp.example.com",
    "smtp_port"                => 587,
    "smtp_ssl"                 => 0,
    "smtp_start_tls"           => 1,
    "smtp_user"                => "yourusersname",
    "smtp_password"            => "youruserspassword",
    "extra_headers"            => array("Organization" => "Horst Nogajski - Fotografie & Webdesign", "X-Header" => "Some Content")
);

To see your resulting (merged) settings you can var_dump the output of the method getSettings():

// debug example in a template file

$mail = wireMail();
echo "<pre>";
var_dump($mail->getSettings());


I tested it here myself and it seems to work fine.



EDIT:

I forgott to mention that I removed the required flags from the modules config settings for smtp_host and smtp_port.
This way, both settings now may stay empty in the config screen, but can be set via the $config->wiremailsmtp array. The downside would be that the modules config screen isn't that robust anymore in regard of misconfiguration.

Is this acceptable, or should there also be a required setting in the modules config screen? This is open for discussion. 🙂



Edited by horst
EDIT
  • Like 6

Share this post


Link to post
Share on other sites

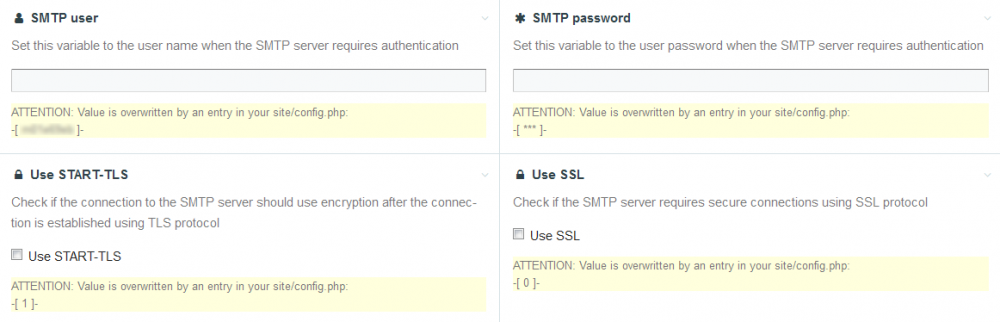

The modules configscreen now is aware of overrides from the site/config.php


  • Like 4

Share this post


Link to post
Share on other sites

Hi @horst

I just wanted to draw attention to a problem that might affect some in the future if TLS (or STARTTLS) is used.

I wasn't sure where to put my concerns, so I decided to write them down in the support forum.

Some email hosting providers will shut down TLS 1.0 support in the future (or already did so). The way your module currently relies on the SMTP class (when using PHP version >= 5.6.7) it only (and exclusively) supports TLS version 1.0 (see here https://github.com/horst-n/WireMailSmtp/blob/master/smtp_classes/smtp.php#L1295).

The issue is better described by one comment on the PHP forum: https://www.php.net/manual/en/function.stream-socket-enable-crypto.php#119122.

Can you maybe integrate an option to allow specifying one of the available PHP crypto type constants?

Hopefully I don't bother you with this and maybe it is useful for somebody.

Thank you for your work in any case!



  • Like 1

Share this post


Link to post
Share on other sites

Hi @androbey

many thanks for pointing me to this. I add it to my todo list with an urgent flag. 😀

  • Like 2

Share this post


Link to post
Share on other sites

We'd like to send email from WireMailSMTP using G Suite. Google offers three different options:

https://support.google.com/a/answer/176600?hl=en

We've tried every variant we can, without success. For anyone using G Suite, which Google option works for you? What settings have you used in G Suite admin, and which settings have you used in the WireMailSMTP config?

(We have enabled the "allow less secure apps" option, and are not using 2-factor authentication.)

Your help is much appreciated.



Share this post


Link to post
Share on other sites
6 hours ago, chcs said:

We'd like to send email from WireMailSMTP using G Suite. Google offers three different options:

https://support.google.com/a/answer/176600?hl=en

We've tried every variant we can, without success. For anyone using G Suite, which Google option works for you? What settings have you used in G Suite admin, and which settings have you used in the WireMailSMTP config?

(We have enabled the "allow less secure apps" option, and are not using 2-factor authentication.)

Your help is much appreciated.



This has been resolved. The issue was with the WHM firewall.

  • Like 1

Share this post


Link to post
Share on other sites
On 4/18/2019 at 2:36 PM, androbey said:

Can you maybe integrate an option to allow specifying one of the available PHP crypto type constants?

Hi @androbey,

I have created a dev-branch on github with the requested functionality. Please can you try it out and give some feedback?
   https://github.com/horst-n/WireMailSmtp/tree/5600cb0230531327438d6a333b2c8a3eb29cc08d

There is also a new $mail->debugSend() method available that you can use instead of the regular $mail->send() method.
With calling the debugSend() method in a template file you will get detailed log information like this:

C STARTTLS
S 220 2.0.0 Ready to start TLS
Starting TLS cryptographic protocol
TLS started: STREAM_CRYPTO_METHOD_TLSv1_2_CLIENT



Spoiler

Resolving SMTP server domain "www.example.com"...
Connecting to SMTP server "www.example.com" port 587...
Connected to SMTP server "www.example.com".
S 220 www.example.com ESMTP
C EHLO wiremailsmtp.kawobi.local
S 250-www.example.com
S 250-PIPELINING
S 250-SIZE 102400000
S 250-VRFY
S 250-ETRN
S 250-STARTTLS
S 250-AUTH PLAIN LOGIN
S 250-AUTH=PLAIN LOGIN
S 250-ENHANCEDSTATUSCODES
S 250-8BITMIME
S 250 DSN
C STARTTLS
S 220 2.0.0 Ready to start TLS
Starting TLS cryptographic protocol
TLS started: STREAM_CRYPTO_METHOD_TLSv1_2_CLIENT
C EHLO wiremailsmtp.kawobi.local
S 250-www.example.com
S 250-PIPELINING
S 250-SIZE 102400000
S 250-VRFY
S 250-ETRN
S 250-AUTH PLAIN LOGIN
S 250-AUTH=PLAIN LOGIN
S 250-ENHANCEDSTATUSCODES
S 250-8BITMIME
S 250 DSN
C AUTH PLAIN bTAxZTY5ZWIAbTAxZTY5ZWIARU1zaVdnc3VzMUVoZXBNdTI=
S 235 2.7.0 Authentication successful
C MAIL FROM:<info@nogajski.de>
C RCPT TO:<info@nogajski.de>
C DATA
S 250 2.1.0 Ok
S 250 2.1.5 Ok
S 354 End data with <CR><LF>.<CR><LF>
C To:  <info@nogajski.de>
Subject: Wiremail-SMTP Test 18:50:39 =?UTF-8?q?=C3=A4=C3=B6=C3=BC_=C3=84=C3=96=C3=9C_=C3=9F?=
From: LocalTestmail <info@nogajski.de>
Return-Path: info@nogajski.de
Reply-To:  <info@nogajski.de>
Organization: Horst Nogajski - Fotografie & Webdesign
X-Mailer: ProcessWire/WireMailSmtp
Date: Fri, 19 Apr 2019 16:50:40 GMT
MIME-Version: 1.0
Content-Type: multipart/alternative; boundary="d9f4656ffd3ae4b2a17b6891ed0a92ad"
Message-ID: <20190419185040.2103.relay@nogajski.de>
C --d9f4656ffd3ae4b2a17b6891ed0a92ad
Content-Type: text/plain; charset=UTF-8
Content-Transfer-Encoding: quoted-printable
Titel=0A=0Atext text TEXT text text=0A
--d9f4656ffd3ae4b2a17b6891ed0a92ad
Content-Type: text/html; charset=UTF-8
Content-Transfer-Encoding: quoted-printable
<h1>Titel</h1><p>text text <strong>TEXT</strong> text text</p>
--d9f4656ffd3ae4b2a17b6891ed0a92ad--
C
.
S 250 2.0.0 Ok: queued as 4CDD02C0143E
C QUIT
S 221 2.0.0 Bye
Disconnected.



  • Thanks 1

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By horst
      ---------------------------------------------------------------------------------------------------------------------------------
        when working with PW version 2.6+, please use Pim2, not Pim!
        read more here  on how to change from the older to the newer version in existing sites
      ---------------------------------------------------------------------------------------------------------------------------------
      PageImage Manipulator, API for version 1 & 2

      The Page Image Manipulator is a module that let you in a first place do ImageManipulations with your PageImages. - And in a second place there is the possibility to let it work on any imagefile that exists in your servers filesystem, regardless if it is a 'known PW-image'.

      The Page Image Manipulator is a Toolbox for Users and Moduledevelopers. It is written to be as close to the Core ImageSizer as possible. Besides the GD-filterfunctions it contains resize, crop, canvas, rotate, flip, sharpen, unsharpMask and 3 watermark methods.



      How does it work?

      You can enter the ImageManipulator by calling the method pim2Load(). After that you can chain together how many actions in what ever order you like. If your manipulation is finished, you call pimSave() to write the memory Image into a diskfile. pimSave() returns the PageImage-Object of the new written file so we are able to further use any known PW-image property or method. This way it integrates best into the ProcessWire flow.

      The three examples above put out the same visual result: a grayscale image with a width of 240px. Only the filenames will slightly differ.

      You have to define a name-prefix that you pass with the pimLoad() method. If the file with that prefix already exists, all operations are skipped and only the desired PageImage-Object gets returned by pimSave(). If you want to force recreation of the file, you can pass as second param a boolean true: pim2Load('myPrefix', true).

      You may also want to get rid of all variations at once? Than you can call $pageimage->pim2Load('myPrefix')->removePimVariations()!

      A complete list of all methods and actions are at the end of this post.

      You may also visit the post with tips & examples for users and module developers.


      How to Install
      Download the module Place the module files in /site/modules/PageImageManipulator/ In your admin, click Modules > Check for new modules Click "install" for PageImageManipulator Done! There are no configuration settings needed, just install and use it. Download    (version 0.2.0)
      get it from the Modules Directory History of origins

      http://processwire.com/talk/topic/3278-core-imagemanipulation/


      ----------------------------------------------------------------------------------------------------------


      Page Image Manipulator - Methods

      * pimLoad  or  pim2Load, depends on the version you use!

      pimLoad($prefix, $param2=optional, $param3=optional)
      param 1: $prefix - (string) = mandatory! param 2: mixed, $forceRecreation or $options param 3: mixed, $forceRecreation or $options return: pim - (class handle) $options - (array) default is empty, see the next method for a list of valid options! $forceRecreation - (bool) default is false It check if the desired image variation exists, if not or if forceRecreation is set to true, it prepares all settings to get ready for image manipulation
      -------------------------------------------------------------------

      * setOptions

      setOptions(array $options)
      param: $options - (array) default is empty return: pim - (class handle) Takes an array with any number valid options / properties and set them by replacing the class-defaults and / or the global config defaults optionally set in the site/config.php under imageSizerOptions or imageManipulatorOptions.

      valid options are:
      quality = 1 - 100 (integer) upscaling = true | false (boolean) cropping = true | false (boolean) autoRotation =true | false (boolean) sharpening = 'none' | 'soft' | 'medium' | 'strong' (string) bgcolor = (array) css rgb or css rgba, first three values are integer 0-255 and optional 4 value is float 0-1, - default is array(255,255,255,0) thumbnailColorizeCustom = (array) rgb with values for colorize, integer -255 - 255 (this can be used to set a custom color when working together with Thumbnails-Module)
        outputFormat = 'gif' | 'jpg' | 'png' (Attention: outputFormat cannot be specified as global option in $config->imageManipulatorOptions!) set {singleOption} ($value)
      For every valid option there is also a single method that you can call, like setQuality(90), setUpscaling(false), etc.
      -------------------------------------------------------------------

      * pimSave

      pimSave()
      return: PageImage-Object If a new image is hold in memory, it saves the current content into a diskfile, according to the settings of filename, imagetype, targetFilename and outputFormat. Returns a PageImage-Object!
      -------------------------------------------------------------------

      * release

      release()
      return: void (nothing) if you, for what ever reason, first load image into memory but than do not save it, you should call release() to do the dishes! 😉 If you use pimSave() to leave the ImageManipulator, release() is called automatically.
      -------------------------------------------------------------------

      * getOptions

      getOptions()
      return: associative array with all final option values example:
      ["autoRotation"] bool(true) ["upscaling"] bool(false) ["cropping"] bool(true) ["quality"] int(90) ["sharpening"] string(6) "medium" ["targetFilename"] string(96) "/htdocs/site/assets/files/1124/pim_prefix_filename.jpg" ["outputFormat"] string(3) "jpg" get {singleOption} ()
      For every valid option there is also a single method that you can call, like getQuality(), getUpscaling(), etc. See method setOptions for a list of valid options!
      -------------------------------------------------------------------

      * getImageInfo

      getImageInfo()
      return: associative array with useful informations of source imagefile example:
      ["type"] string(3) "jpg" ["imageType"] int(2) ["mimetype"] string(10) "image/jpeg" ["width"] int(500) ["height"] int(331) ["landscape"] bool(true) ["ratio"] float(1.5105740181269) ["bits"] int(8) ["channels"] int(3) ["colspace"] string(9) "DeviceRGB" -------------------------------------------------------------------

      * getPimVariations

      getPimVariations()
      return: array of Pageimages Collect all pimVariations of this Pageimage as a Pageimages array of Pageimage objects. All variations created by the core ImageSizer are not included in the collection.
      -------------------------------------------------------------------

      * removePimVariations

      removePimVariations()
      return: pim - (class handle) Removes all image variations that was created using the PIM, all variations that are created by the core ImageSizer are left untouched!
      -------------------------------------------------------------------
      * width

      width($dst_width, $sharpen_mode=null)
      param: $dst_width - (integer) param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you prioritize the width, like with pageimage. Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * height

      height($dst_height, $sharpen_mode=null)
      param: $dst_height - (integer) param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you prioritize the height, like with pageimage. Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * resize

      resize($dst_width=0, $dst_height=0, $sharpen_mode=null)
      param: $dst_width - (integer) default is 0 param: $dst_height - (integer) default is 0 param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you have to set width and / or height, like with pageimage size(). Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * stepResize

      stepResize($dst_width=0, $dst_height=0)
      param: $dst_width - (integer) default is 0 param: $dst_height - (integer) default is 0 return: pim - (class handle) this performs a resizing but with multiple little steps, each step followed by a soft sharpening. That way you can get better result of sharpened images.
      -------------------------------------------------------------------

      * sharpen

      sharpen($mode='soft')
      param: $mode - (string) possible values 'none' | 'soft'| 'medium'| 'strong' return: pim - (class handle) Applys sharpening to the current memory image. You can call it with one of the three predefined pattern, or you can pass an array with your own pattern.
      -------------------------------------------------------------------

      * unsharpMask

      unsharpMask($amount, $radius, $threshold)
      param: $amount - (integer) 0 - 500, default is 100 param: $radius - (float) 0.1 - 50, default is 0.5 param: $threshold - (integer) 0 - 255, default is 3 return: pim - (class handle) Applys sharpening to the current memory image like the equal named filter in photoshop.
      Credit for the used unsharp mask algorithm goes to Torstein Hønsi who has created the function back in 2003.
      -------------------------------------------------------------------

      * smooth

      smooth($level=127)
      param: $level - (integer) 1 - 255, default is 127 return: pim - (class handle) Smooth is the opposite of sharpen. You can define how strong it should be applied, 1 is low and 255 is strong.
      -------------------------------------------------------------------

      * blur

      blur()
      return: pim - (class handle) Blur is like smooth, but cannot called with a value. It seems to be similar like a result of smooth with a value greater than 200.
      -------------------------------------------------------------------

      * crop

      crop($pos_x, $pos_y, $width, $height)
      param: $pos_x - (integer) start position left param: $pos_y - (integer) start position top param: $width - (integer) horizontal length of desired image part param: $height - (integer) vertical length of desired image part return: pim - (class handle) This method cut out a part of the memory image.
      -------------------------------------------------------------------

      * canvas

      canvas($width, $height, $bgcolor, $position, $padding)
      param: $width = mixed, associative array with options or integer, - mandatory! param: $height = integer, - mandatory if $width is integer! param: $bgcolor = array with rgb or rgba, - default is array(255, 255, 255, 0) param: $position = one out of north, northwest, center, etc, - default is center param: $padding = integer as percent of canvas length, - default is 0 return: pim - (class handle) This method creates a canvas according to the given width and height and position the memory image onto it.
      You can pass an associative options array as the first and only param. With it you have to set width and height and optionally any other valid param. Or you have to set at least width and height as integers.
      Hint: If you want use transparency with rgba and your sourceImage isn't of type PNG, you have to define 'png' as outputFormat with your initially options array or, for example, like this: $image->pimLoad('prefix')->setOutputFormat('png')->canvas(300, 300, array(210,233,238,0.5), 'c', 5)->pimSave()
      -------------------------------------------------------------------

      * flip

      flip($vertical=false)
      param: $vertical - (boolean) default is false return: pim - (class handle) This flips the image horizontal by default. (mirroring)
      If the boolean param is set to true, it flips the image vertical instead.
      -------------------------------------------------------------------

      * rotate

      rotate($degree, $backgroundColor=127)
      param: $degree - (integer) valid is -360 0 360 param: $backgroundColor - (integer) valid is 0 - 255, default is 127 return: pim - (class handle) This rotates the image. Positive values for degree rotates clockwise, negative values counter clockwise. If you use other values than 90, 180, 270, the additional space gets filled with the defined background color.
      -------------------------------------------------------------------

      * brightness

      brightness($level)
      param: $level - (integer) -255 0 255 return: pim - (class handle) You can adjust brightness by defining a value between -255 and +255. Zero lets it unchanged, negative values results in darker images and positive values in lighter images.
      -------------------------------------------------------------------

      * contrast

      contrast($level)
      param: $level - (integer) -255 0 255 return: pim - (class handle) You can adjust contrast by defining a value between -255 and +255. Zero lets it unchanged, negative values results in lesser contrast and positive values in higher contrast.
      -------------------------------------------------------------------

      * grayscale

      grayscale()
      return: pim - (class handle) Turns an image into grayscale. Remove all colors.
      -------------------------------------------------------------------

      * sepia

      sepia()
      return: pim - (class handle) Turns the memory image into a colorized grayscale image with a predefined rgb-color that is known as "sepia".
      -------------------------------------------------------------------

      * colorize

      colorize($anyColor)
      param: $anyColor - (array) like css rgb or css rgba - but with values for rgb -255 - +255,  - value for alpha is float 0 - 1, 0 = transparent  1 = opaque return: pim - (class handle) Here you can adjust each of the RGB colors and optionally the alpha channel. Zero lets the channel unchanged whereas negative values results in lesser / darker parts of that channel and higher values in stronger saturisation of that channel.
      -------------------------------------------------------------------

      * negate

      negate()
      return: pim - (class handle) Turns an image into a "negative".
      -------------------------------------------------------------------

      * pixelate

      pixelate($blockSize=3)
      param: $blockSize - (integer) 1 - ??, default is 3 return: pim - (class handle) This apply the well known PixelLook to the memory image. It is stronger with higher values for blockSize.
      -------------------------------------------------------------------

      * emboss

      emboss()
      return: pim - (class handle) This apply the emboss effect to the memory image.
      -------------------------------------------------------------------

      * edgedetect

      edgedetect()
      return: pim - (class handle) This apply the edge-detect effect to the memory image.
      -------------------------------------------------------------------

      * getMemoryImage

      getMemoryImage()
      return: memoryimage - (GD-Resource) If you want apply something that isn't available with that class, you simply can check out the current memory image and apply your image - voodoo - stuff
      -------------------------------------------------------------------

      * setMemoryImage

      setMemoryImage($memoryImage)
      param: $memoryImage - (GD-Resource) return: pim - (class handle) If you are ready with your own image stuff, you can check in the memory image for further use with the class.
      -------------------------------------------------------------------

      * watermarkLogo

      watermarkLogo($pngAlphaImage, $position='center', $padding=2)
      param: $pngAlphaImage - mixed [systemfilepath or PageImageObject] to/from a PNG with transparency param: $position - (string) is one out of: N, E, S, W, C, NE, SE, SW, NW,
      - or: north, east, south, west, center, northeast, southeast, southwest, northwest
      default is 'center' param: $padding - (integer) 0 - 25, default is 5, padding to the borders in percent of the images length! return: pim - (class handle) You can pass a transparent image with its filename or as a PageImage to the method. If the watermark is bigger than the destination-image, it gets shrinked to fit into the targetimage. If it is a small watermark image you can define the position of it:
      NW - N - NE | | | W - C - E | | | SW - S - SE
      The easiest and best way I have discovered to apply a big transparency watermark to an image is as follows:
      create a square transparent png image of e.g. 2000 x 2000 px, place your mark into the center with enough (percent) of space to the borders. You can see an example here! The $pngAlphaImage get centered and shrinked to fit into the memory image. No hassle with what width and / or height should I use?, how many space for the borders?, etc.
      -------------------------------------------------------------------

      * watermarkLogoTiled

      watermarkLogoTiled($pngAlphaImage)
      param: $pngAlphaImage - mixed [systemfilepath or PageImageObject] to/from a PNG with transparency return: pim - (class handle) Here you have to pass a tile png with transparency (e.g. something between 150-300 px?) to your bigger images. It got repeated all over the memory image starting at the top left corner.
      -------------------------------------------------------------------

      * watermarkText

      watermarkText($text, $size=10, $position='center', $padding=2, $opacity=50, $trueTypeFont=null)
      param: $text - (string) the text that you want to display on the image param: $size - (integer) 1 - 100, unit = points, good value seems to be around 10 to 15 param: $position - (string) is one out of: N, E, S, W, C, NE, SE, SW, NW,
      - or: north, east, south, west, center, northeast, southeast, southwest, northwest
      default is 'center' param: $padding - (integer) 0 - 25, default is 2, padding to the borders in percent of the images length! param: $opacity- (integer) 1 - 100, default is 50 param: $trueTypeFont - (string) systemfilepath to a TrueTypeFont, default is freesansbold.ttf (is GPL & comes with the module) return: pim - (class handle) Here you can display (dynamic) text with transparency over the memory image. You have to define your text, and optionally size, position, padding, opacity for it. And if you don't like the default font, freesansbold, you have to point to a TrueTypeFont-File of your choice.
      Please have a look to example output: http://processwire.com/talk/topic/4264-release-page-image-manipulator/page-2#entry41989
      -------------------------------------------------------------------





      PageImage Manipulator - Example Output


    • By d'Hinnisdaël
      Format Datetime fields as Carbon instances.
      You can find the latest release and the complete readme on Github.
      Installation
      composer require daun/datetime-carbon-format Usage
      All Datetime fields will now be formatted as Carbon instances instead of strings. Some examples:
      // $page->date is a Datetime field // Output format: j/n/Y echo $page->date; // 20/10/2020 echo $page->date->add('7 days'); // 27/10/2020 echo $page->date->format('l, F j'); // Monday, October 20 echo $page->date->year; // 2020 echo $page->date->diffForHumans(); // 28 minutes ago Frontend only
      The ProcessWire admin seems to expect datetime fields to be strings. This module will only return Carbon instances on frontend page views.
      Date output format
      When casting a Carbon instance to a string (usually when outputting the field in a template), the field's date output format will be respected.
      Links
      GitHub • Readme • Carbon docs


      PS. I remember reading about a Carbon module in a recent newsletter, but couldn't find it anywhere. Was that you, @bernhard?
    • By MoritzLost
      TrelloWire
      This is a module that allows you to automatically create Trello cards for ProcessWire pages and update them when the pages are updated. This allows you to setup connected workflows. Card properties and change handling behaviour can be customized through the extensive module configuration. Every action the module performs is hookable, so you can modify when and how cards are created as much as you need to. The module also contains an API-component that makes it easy to make requests to the Trello API and build your own connected ProcessWire-Trello workflows.
      Warning: This module requires ProcessWire 3.0.167 which is above the current stable master release at the moment.
      Features
      All the things the module can do for you without any custom code: Create a new card on Trello whenever a page is added or published (you can select applicable templates). Configure the target board, target list, name and description for new cards. Add default labels and checklists to the card. Update the card whenever the page is updated (optional). When the status of the card changes (published / unpublished, hidden / unhidden, trashed / restored or deleted), move the card to a different list or archive or delete it (configurable). You can extend this through hooks in many ways: Modifiy when and how cards are created. Modify the card properties (Target board & list, title, description, et c.) before they are sent to Trello. Create your own workflows by utilizing an API helper class with many convenient utility methods to access the Trello API directly. Feedback & Future Plans
      Let me know what you think! In particular:
      If you find any bugs report them here or on Github, I'll try to fix them. This module was born out of a use-case for a client project where we manage new form submissions through Trello. I'm not sure how many use-cases there are for this module. If you do use it, tell me about it! The Trello API is pretty extensive, I'll try to add some more helper methods to the TrelloWireApi class (let me know if you need anything in particular). I'll think about how the module can support different workflows that include Twig – talk to me if you have a use-case! Next steps could be a dashboard to manage pages that are connected to a Trello card, or a new section in the settings tab to manage the Trello connection. But it depends on whether there is any interest in this 🙂 Links
      Repository on Github Complete module documentation (getting started, configuration & API documentation) TrelloWire in the modules directory Module configuration

    • By David Karich
      ProcessWire InputfieldRepeaterMatrixDuplicate
      Thanks to the great ProModule "RepeaterMatrix" I have the possibility to create complex repeater items. With it I have created a quite powerful page builder. Many different content modules, with many more possible design options. The RepeaterMatrix module supports the cloning of items, but only within the same page. Now I often have the case that very design-intensive pages and items are created. If you want to use a content module on a different page (e.g. in the same design), you have to rebuild each item manually every time.
      This module extends the commercial ProModule "RepeaterMatrix" by the function to duplicate repeater items from one page to another page. The condition is that the target field is the same matrix field from which the item is duplicated. This module is currently understood as proof of concept. There are a few limitations that need to be considered. The intention of the module is that this functionality is integrated into the core of RepeaterMatrix and does not require an extra module.
      Check out the screencast
      What the module can do
      Duplicate multible repeater items from one page to another No matter how complex the item is Full support for file and image fields Multilingual support Support of Min and Max settings Live synchronization of clipboard between multiple browser tabs. Copy an item and simply switch the browser tab to the target page and you will immediately see the past button Support of multiple RepeaterMatrix fields on one page Configurable which roles and fields are excluded Configurable dialogs for copy and paste Duplicated items are automatically pasted to the end of the target field and set to hidden status so that changes are not directly published Automatic clipboard update when other items are picked Automatically removes old clipboard data if it is not pasted within 6 hours Delete clipboard itself by clicking the selected item again Benefit: unbelievably fast workflow and content replication What the module can't do
      Before an item can be duplicated in its current version, the source page must be saved. This means that if you make changes to an item and copy this, the old saved state will be duplicated Dynamic loading is currently not possible. Means no AJAX. When pasting, the target page is saved completely No support for nested repeater items. Currently only first level items can be duplicated. Means a repeater field in a repeater field cannot be duplicated. Workaround: simply duplicate the parent item Dynamic reloading and adding of repeater items cannot be registered. Several interfaces and events from the core are missing. The initialization occurs only once after the page load event Attention, please note!
      Nested repeaters cannot be supported technically. Therefore a check is made to prevent this. However, a nested repeater can only be detected if the field name ends for example with "_repeater1234". For example, if your MatrixRepeater field is named like this: "content_repeater" or "content_repeater123", this field is identified as nested and the module does not load. In version 2.0.1 the identification has been changed so that a field ending with the name repeater is only detected as nested if at least a two-digit number sequence follows. But to avoid this problem completely, make sure that your repeater matrix field does NOT end with the name "repeater".
      Changelog

      2.0.1
      Bug fix: Thanks to @ngrmm I could discover a bug which causes that the module cannot be loaded if the MatrixRepeater field ends with the name "repeater". The code was adjusted and information about the problem was provided 2.0.0
      Feature: Copy multiple items at once! The fundament for copying multiple items was created by @Autofahrn - THX! Feature: Optionally you can disable the copy and/or paste dialog Bug fix: A fix suggestion when additional and normal repeater fields are present was contributed by @joshua - THX! 1.0.4
      Bug fix: Various bug fixes and improvements in live synchronization Bug fix: Items are no longer inserted when the normal save button is clicked. Only when the past button is explicitly clicked Feature: Support of multiple repeater fields in one page Feature: Support of repeater Min/Max settings Feature: Configurable roles and fields Enhancement: Improved clipboard management Enhancement: Documentation improvement Enhancement: Corrected few typos #1 1.0.3
      Feature: Live synchronization Enhancement: Load the module only in the backend Enhancement: Documentation improvement 1.0.2
      Bug fix: Various bug fixes and improvements in JS functions Enhancement: Documentation improvement Enhancement: Corrected few typos 1.0.1
      Bug fix: Various bug fixes and improvements in the duplication process 1.0.0
      Initial release Support this module
      If this module is useful for you, I am very thankful for your small donation: Donate 5,- Euro (via PayPal – or an amount of your choice. Thank you!)
      Download this module (Version 2.0.1)
      > Github: https://github.com/FlipZoomMedia/InputfieldRepeaterMatrixDuplicate
      > PW module directory: https://modules.processwire.com/modules/inputfield-repeater-matrix-duplicate/
      > Old stable version (1.0.4): https://github.com/FlipZoomMedia/InputfieldRepeaterMatrixDuplicate/releases/tag/1.0.4
×
×
  • Create New...
