ukyo

Mystique (Fieldtype, Inputfield) build dynamic fields and store data by using config file

Recommended Posts


Mystique Module for ProcessWire CMS/CMF

Github repo : https://github.com/trk/Mystique

Mystique module allow you to create dynamic fields and store dynamic fields data on database by using a config file.

Requirements

  • ProcessWire 3.0 or newer
  • PHP 7.0 or newer
  • FieldtypeMystique
  • InputfieldMystique

Installation

Install the module from the modules directory:

Via Composer:

composer require trk/mystique

Via git clone:

cd your-processwire-project-folder/
cd site/modules/
git clone https://github.com/trk/Mystique.git

Module in live reaction with your Mystique config file

This mean if you remove a field from your config file, field will be removed from edit screen. As you see on youtube video.

Using Mystique with your module or use different configs path, autoload need to be true for modules

Default configs path is site/templates/configs/, and your config file name need to start with Mystique. and need to end with .php extension.

Adding custom path not supporting anymore !

// Add your custom path inside your module class`init` function, didn't tested outside
public function init()
{
    $path = __DIR__ . DIRECTORY_SEPARATOR . 'configs' . DIRECTORY_SEPARATOR;
    Mystique::add($path);
}

Mystique module will search site/modules/**/configs/Mystique.*.php and site/templates/Mystique.*.php paths for Mystique config files.

All config files need to return a PHP ARRAY like examples.

Usage almost same with ProcessWire Inputfield Api, only difference is set and showIf usage like on example.

<?php

namespace ProcessWire;

/**
 * Resource : testing-mystique
 */
return [
    'title' => __('Testing Mystique'),
    'fields' => [
        'text_field' => [
            'label' => __('You can use short named types'),
            'description' => __('In file showIf working like example'),
            'notes' => __('Also you can use $input->set() method'),
            'type' => 'text',
            'showIf' => [
                'another_text' => "=''"
            ],
            'set' => [
                'showCount' => InputfieldText::showCountChars,
                'maxlength' => 255
            ],
            'attr' => [
                'attr-foo' => 'bar',
                'attr-bar' => 'foo'
            ]
        ],
        'another_text' => [
            'label' => __('Another text field (default type is text)')
        ]
    ]
];

Example:

  • site/templates/configs/Mystique.seo-fields.php
<?php

namespace ProcessWire;

/**
 * Resource : seo-fields
 */
return [
    'title' => __('Seo fields'),
    'fields' => [
        'window_title' => [
            'label' => __('Window title'),
            'type' => Mystique::TEXT, // or InputfieldText
            'useLanguages' => true,
            'attr' => [
                'placeholder' => __('Enter a window title')
            ]
        ],
        'navigation_title' => [
            'label' => __('Navigation title'),
            'type' => Mystique::TEXT, // or InputfieldText
            'useLanguages' => true,
            'showIf' => [
                'window_title' => "!=''"
            ],
            'attr' => [
                'placeholder' => __('Enter a navigation title')
            ]
        ],
        'description' => [
            'label' => __('Description for search engines'),
            'type' => Mystique::TEXTAREA,
            'useLanguages' => true
        ],
        'page_tpye' => [
            'label' => __('Type'),
            'type' => Mystique::SELECT,
            'options' => [
                'basic' => __('Basic page'),
                'gallery' => __('Gallery'),
                'blog' => __('Blog')
            ]
        ],
        'show_on_nav' => [
            'label' => __('Display this page on navigation'),
            'type' => Mystique::CHECKBOX
        ]
    ]
];

Searching data on Mystique field is limited. Because, Mystique saving data to database in json format. When you make search for Mystique field, operator not important. Operator will be changed with %= operator.

Search example

$navigationPages = pages()->find('my_mystique_field.show_on_nav=1');
$navigationPages = pages()->find('my_mystique_field.page_tpye=gallery');
  • Like 22
  • Thanks 1

Share this post


Link to post
Share on other sites

Looks very cool, @ukyo! Thanks for that, but the font-size on the video was hard on my eyes. 🙂

Image result for grandma meme

  • Like 3
  • Confused 1

Share this post


Link to post
Share on other sites
1 hour ago, ukyo said:

@Sergio sorry about that, 4K screen 😞

No problem! Resolution is not the problem per se, but next time, for the sake of old fellas like myself, bump the font-size on your editor. 🙂

  • Like 1

Share this post


Link to post
Share on other sites
8 hours ago, ukyo said:

Searching data inside this module is limited, because all data storing as a json value on to database

Maybe you could get some inspiration there from (or even improve on) my JsonNativeField module since MySQL supports searching inside JSON data.

  • Like 2

Share this post


Link to post
Share on other sites

Can you share a bit more details on how data is handled. E.g. what happens if I change a field or even remove it.

  • Like 2

Share this post


Link to post
Share on other sites
6 hours ago, BitPoet said:

Maybe you could get some inspiration there from (or even improve on) my JsonNativeField module since MySQL supports searching inside JSON data.

@BitPoet will check it, but i don't want to limit user's database options and if you need an important searchable field i am not advising to use this field, use a fully searchable field.

3 hours ago, LostKobrakai said:

Can you share a bit more details on how data is handled. E.g. what happens if I change a field or even remove it.

@LostKobrakai I will add more details on readme.md file and will update this post and module page.

About your question : as you see on youtube video, updating fields config file will update data entry form for admin page. If you remove field, you won't see this field on admin pages anymore. I am not caching your configs, always trying to get configs from selected config files.

  • Like 1

Share this post


Link to post
Share on other sites
1 hour ago, ukyo said:

About your question : as you see on youtube video, updating fields config file will update data entry form for admin page. If you remove field, you won't see this field on admin pages anymore. I am not caching your configs, always trying to get configs from selected config files.

My question was less about the field definitions, but more about the data stored in a field defined by your module. E.g. say I want to change an integer field to a float field.

  • Like 1

Share this post


Link to post
Share on other sites
2 minutes ago, LostKobrakai said:

My question was less about the field definitions, but more about the data stored in a field defined by your module. E.g. say I want to change an integer field to a float field.

Keep the field name same, do what you want. Because all data on database in string format (i am not checking user posted data), you can set field settings by using processwire fields api and you can limit user by settings.

Hook methods could be used for custom usages.

  • Like 2

Share this post


Link to post
Share on other sites

I am using this module for SEO, LANGUAGE and ELEMENTS (uikit components)

USAGE EXAMPLE : LANGUAGE

On my private module, i added my custom configs path to Mystique module by using :

Mystique::add('my-module-configs-path');

- Create config file

<?php

namespace ProcessWire;

// Filename: MyModule/configs/Mystique.language.php

// This options normally coming from a file array, i added 2 options for example
$options = [
	'tr' => 'Türkçe',
	'en' => 'English'
];
$defaultValue = 'en';

/**
 * Resource : MyModule => Language
 */
return [
    'title' => __('MyModule: Language'),
    'fields' => [
        'title' => [
            'label' => __('Language title'),
            'description' => __('Title of language'),
            'type' => Mystique::TEXT,
            'columnWidth' => 50
        ],
        'code' => [
            'label' => __('Code'),
            'description' => __('Language short code'),
            'type' => Mystique::SELECT,
            'options' => $options,
            'defaultValue' => $defaultValue,
            'required' => true,
            'columnWidth' => 50
        ],
        'flag' => [
            'label' => __('Flag'),
            'description' => __('Language flag code'),
            'type' => Mystique::TEXT,
            'columnWidth' => 50
        ],
        'direction' => [
            'label' => __('Direction'),
            'checkboxLabel' => __('Right to left'),
            'description' => __('Direction of language'),
            'type' => Mystique::TOGGLE_CHECKBOX,
            'type_fallback' => Mystique::CHECKBOX,
            'columnWidth' => 50
        ],
        'currency' => [
            'label' => __('Currency'),
            'description' => __('Code of currency'),
            'type' => Mystique::TEXT,
            'columnWidth' => 50
        ],
        'symbol' => [
            'label' => __('Symbol'),
            'description' => __('Symbol of currency'),
            'type' => Mystique::TEXT,
            'columnWidth' => 50
        ],
        'grouping_separator' => [
            'label' => __('Grouping separator'),
            'description' => __('Thousand separator for amount'),
            'type' => Mystique::TEXT,
            'columnWidth' => 50
        ],
        'decimal_separator' => [
            'label' => __('Decimal separator'),
            'description' => __('Decimal separator for amount'),
            'type' => Mystique::TEXT,
            'columnWidth' => 50
        ],
        'separator' => [
            'label' => __('Use separator'),
            'checkboxLabel' => __('YES'),
            'description' => __('Apply space between amount and currency symbol ?'),
            'type' => Mystique::TOGGLE_CHECKBOX,
            'type_fallback' => Mystique::CHECKBOX,
            'columnWidth' => 33
        ],
        'show_decimal' => [
            'label' => __('Decimal'),
            'checkboxLabel' => __('YES'),
            'description' => __('Show amount decimals ?'),
            'type' => Mystique::TOGGLE_CHECKBOX,
            'type_fallback' => Mystique::CHECKBOX,
            'columnWidth' => 33
        ],
        'symbol_after' => [
            'label' => __('Symbol after'),
            'checkboxLabel' => __('YES'),
            'description' => __('Display symbol after amount ?'),
            'type' => Mystique::TOGGLE_CHECKBOX,
            'type_fallback' => Mystique::CHECKBOX,
            'columnWidth' => 33
        ],
    ]
];

- Select config file from Mystique field settings

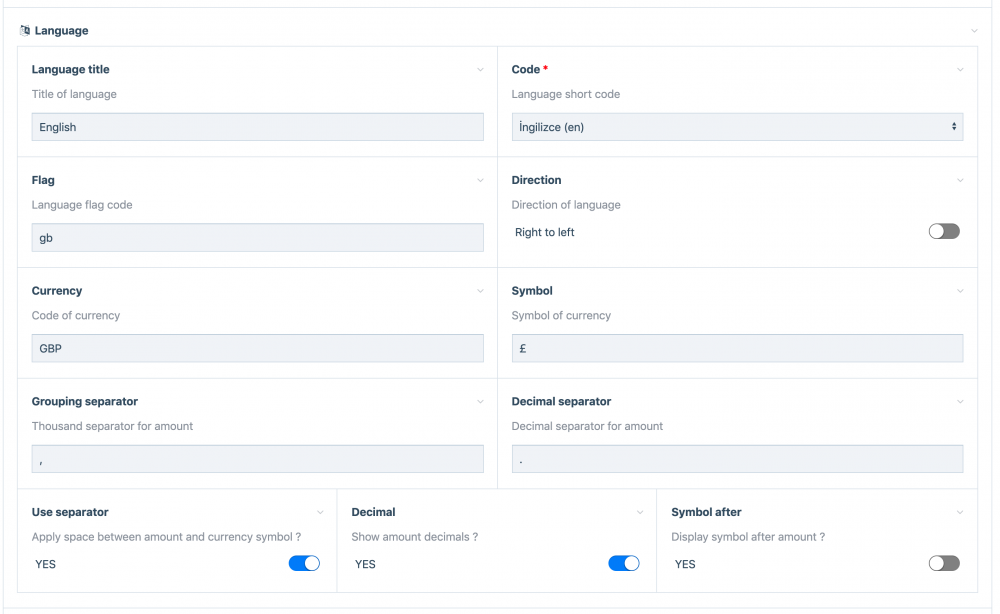

- Add Mystique field to language template

158007518_EkranResmi2019-04-1617_07_26.thumb.png.fc0ee438f50c25c17ac9b4fc66cd76e2.png1675030088_EkranResmi2019-04-1617_08_24.thumb.png.b24c6734f5c16bcd65d79882903f81e4.png

Access data via api (in this example mystique field name is : lang)

<?php

$language = $user->language;
// lang is Mystique field
echo 'Title : ' . $language->lang->title . '<br>';
echo 'Code : ' . $language->lang->code . '<br>';
echo 'Flag : ' . $language->lang->flag . '<br>';
echo 'Direction : ' . $language->lang->direction . '<br>';
echo 'Currency : ' . $language->lang->currency . '<br>';
echo 'Symbol : ' . $language->lang->symbol . '<br>';
echo 'Grouping separator : ' . $language->lang->grouping_separator . '<br>';
echo 'Decimal separator : ' . $language->lang->decimal_separator . '<br>';
echo 'Separator between amount and symbol : ' . $language->lang->separator . '<br>';
echo 'Show decimal : ' . $language->lang->show_decimal . '<br>';
echo 'Show symbol after amount : ' . $language->lang->symbol_after . '<br>';

Output:

Title : English
Code : en
Flag : gb
Direction : 0
Currency : GBP
Symbol : £
Grouping separator : ,
Decimal separator : .
Separator between amount and symbol : 1
Show decimal : 1
Show symbol after amount : 0



  • Like 9
  • Thanks 1

Share this post


Link to post
Share on other sites

Hello @ukyo.  This module is fantastic, on the level of a Pro Field.  Nicely done!

From what I can tell, it does not support multi-select options (multi-select, ASM Select, Checkboxes).  Is this a planned feature?

Share this post


Link to post
Share on other sites
3 minutes ago, Jonathan Lahijani said:

Hello @ukyo.  This module is fantastic, on the level of a Pro Field.  Nicely done!

From what I can tell, it does not support multi-select options (multi-select, ASM Select, Checkboxes).  Is this a planned feature?

Upon further inspection, setting the 'type' to 'InputfieldAsmSelect' does work and does save properly.  Awesome.

  • Like 1

Share this post


Link to post
Share on other sites
7 hours ago, Jonathan Lahijani said:

Upon further inspection, setting the 'type' to 'InputfieldAsmSelect' does work and does save properly.  Awesome.

Nice to hear that.

Processing input field there is not special check for input field. https://github.com/trk/Mystique/blob/master/InputfieldMystique.module.php#L135

Little bit worked on a base field type (basically this field type will get entered field type's database schemas and will create 1 database table for all entered fields), if i success about this field type, i will try to use input field based checks.

For the moment getting and setting directly posted data.

  • Like 3

Share this post


Link to post
Share on other sites

First of all many thanks for the great Mystique Module.

I actually wanted to do something with Fieldset Group, but it's a ProModul so I've been looking for something similar. And I found Mystique. Could only do a few tests with it and then unfortunately made a PW update ...😭

Today I have PW3.0.140 installed and now the module does not work anymore. I am not a developer and can not determine the problem.😕

This is the output if I want to use the field:
Fatal Error: Uncaught Error: Call to a member function prepend() on null in /Applications/MAMP/htdocs/pw-pt/wire/core/Fields.php:1066
Stack trace:
#0 /Applications/MAMP/htdocs/pw-pt/wire/modules/Process/ProcessField/ProcessField.module(1412): ProcessWire\Fields->getCompatibleFieldtypes(Object(ProcessWire\Field))
#1 /Applications/MAMP/htdocs/pw-pt/wire/core/Wire.php(380): ProcessWire\ProcessField->___buildEditFormBasics()
#2 /Applications/MAMP/htdocs/pw-pt/wire/core/WireHooks.php(813): ProcessWire\Wire->_callMethod('___buildEditFor...', Array)
#3 /Applications/MAMP/htdocs/pw-pt/wire/core/Wire.php(442): ProcessWire\WireHooks->runHooks(Object(ProcessWire\ProcessField), 'buildEditFormBa...', Array)
#4 /Applications/MAMP/htdocs/pw-pt/wire/modules/Process/ProcessField/ProcessField.module(1020): ProcessWire\Wire->__call('buildEditFormBa...', Array)
#5 /Applications/MAMP/htdocs/pw-pt/wire/core/Wire.php(380): ProcessWire\ProcessField->___buildEditForm()
#6 /Applications/MAMP/htdocs/pw-pt/wire/core/WireHooks.php(813): ProcessWire\W (line 1066 of /Applications/MAMP/htdocs/pw-pt/wire/core/Fields.php)


I also have the version "next" v.0.0.6 installed but it comes to the same error.
Can someone help or does someone have the same problem?

Thank you 😊

---
I was looking for a solution and think the module SeoMaestro has a similar problem with the new Processwire DEV version:

https://processwire.com/talk/topic/20817-seomaestro/?do=findComment&comment=190656

Maybe this info helps a PW professional to solve the problem.

Share this post


Link to post
Share on other sites

@cosmo backup your project, grab the latest master release and make a downgrade. A quick fix for the time being. It's the same I did. 😉

Share this post


Link to post
Share on other sites

Yes, that would be the fastest solution.

I've just started using Processwire, so it's not that tragic. But I had a nice project idea where I would like to use the new inputfield Toggle and Mystique. I hope for the PW professionals that they recognize the problem and make a PW or module update.

Share this post


Link to post
Share on other sites

@cosmo @wbmnfktr @next version is not fully working version. Use published version on module directory. If you want to try @next version, don't do it on live projects !

I will check @next version with latest processwire dev version.

  • Like 1

Share this post


Link to post
Share on other sites

It's not the @next version, but the latest version of Processwire 3.0.140 in combination with the Mystique Module. On my installation, both Mystique module versions do not work with Processwire 3.0.140.

Thank you for checking.

Share this post


Link to post
Share on other sites

I think thats PW core problem, see https://github.com/processwire/processwire-issues/issues/979

  • Like 1

Share this post


Link to post
Share on other sites

It works - thank you. Great how fast you have solved this.👍

I once used the example file "Example-Dive". Here is an image inputfield, how does it work? When I upload a picture, nothing happens.

Do you have any more practical examples or information for beginners?

  • Like 1

Share this post


Link to post
Share on other sites
18 hours ago, ukyo said:

@cosmo Some of fields (image, file fields) not supported.

OK - I almost thought so.

Anyway, your module is a very good timesafer. It also saves resources👍

  • Like 1

Share this post


Link to post
Share on other sites

Hi @ukyo,

I've just tried your module for the first time, but unfortunately it does not find any resources! This is the tracy dump:


Somehow the resources array is empty:


I have the following files in my setup:

C:\laragon\www\kaum\site\modules\Mystique\configs\Mystique.example-dive.php
C:\laragon\www\kaum\site\templates\configs\Mystique.mystique.php

No matter what I try - the resources select is empty:


I've even tried to do a $config->paths->normalizeSeparators() on the path without success (thought it might be a windows issue).

Thx for your help!

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By horst
      ---------------------------------------------------------------------------------------------------------------------------------
        when working with PW version 2.6+, please use Pim2, not Pim!
        read more here  on how to change from the older to the newer version in existing sites
      ---------------------------------------------------------------------------------------------------------------------------------
      PageImage Manipulator, API for version 1 & 2

      The Page Image Manipulator is a module that let you in a first place do ImageManipulations with your PageImages. - And in a second place there is the possibility to let it work on any imagefile that exists in your servers filesystem, regardless if it is a 'known PW-image'.

      The Page Image Manipulator is a Toolbox for Users and Moduledevelopers. It is written to be as close to the Core ImageSizer as possible. Besides the GD-filterfunctions it contains resize, crop, canvas, rotate, flip, sharpen, unsharpMask and 3 watermark methods.



      How does it work?

      You can enter the ImageManipulator by calling the method pim2Load(). After that you can chain together how many actions in what ever order you like. If your manipulation is finished, you call pimSave() to write the memory Image into a diskfile. pimSave() returns the PageImage-Object of the new written file so we are able to further use any known PW-image property or method. This way it integrates best into the ProcessWire flow.

      The three examples above put out the same visual result: a grayscale image with a width of 240px. Only the filenames will slightly differ.

      You have to define a name-prefix that you pass with the pimLoad() method. If the file with that prefix already exists, all operations are skipped and only the desired PageImage-Object gets returned by pimSave(). If you want to force recreation of the file, you can pass as second param a boolean true: pim2Load('myPrefix', true).

      You may also want to get rid of all variations at once? Than you can call $pageimage->pim2Load('myPrefix')->removePimVariations()!

      A complete list of all methods and actions are at the end of this post.

      You may also visit the post with tips & examples for users and module developers.


      How to Install
      Download the module Place the module files in /site/modules/PageImageManipulator/ In your admin, click Modules > Check for new modules Click "install" for PageImageManipulator Done! There are no configuration settings needed, just install and use it. Download    (version 0.2.0)
      get it from the Modules Directory History of origins

      http://processwire.com/talk/topic/3278-core-imagemanipulation/


      ----------------------------------------------------------------------------------------------------------


      Page Image Manipulator - Methods

      * pimLoad  or  pim2Load, depends on the version you use!

      pimLoad($prefix, $param2=optional, $param3=optional)
      param 1: $prefix - (string) = mandatory! param 2: mixed, $forceRecreation or $options param 3: mixed, $forceRecreation or $options return: pim - (class handle) $options - (array) default is empty, see the next method for a list of valid options! $forceRecreation - (bool) default is false It check if the desired image variation exists, if not or if forceRecreation is set to true, it prepares all settings to get ready for image manipulation
      -------------------------------------------------------------------

      * setOptions

      setOptions(array $options)
      param: $options - (array) default is empty return: pim - (class handle) Takes an array with any number valid options / properties and set them by replacing the class-defaults and / or the global config defaults optionally set in the site/config.php under imageSizerOptions or imageManipulatorOptions.

      valid options are:
      quality = 1 - 100 (integer) upscaling = true | false (boolean) cropping = true | false (boolean) autoRotation =true | false (boolean) sharpening = 'none' | 'soft' | 'medium' | 'strong' (string) bgcolor = (array) css rgb or css rgba, first three values are integer 0-255 and optional 4 value is float 0-1, - default is array(255,255,255,0) thumbnailColorizeCustom = (array) rgb with values for colorize, integer -255 - 255 (this can be used to set a custom color when working together with Thumbnails-Module)
        outputFormat = 'gif' | 'jpg' | 'png' (Attention: outputFormat cannot be specified as global option in $config->imageManipulatorOptions!) set {singleOption} ($value)
      For every valid option there is also a single method that you can call, like setQuality(90), setUpscaling(false), etc.
      -------------------------------------------------------------------

      * pimSave

      pimSave()
      return: PageImage-Object If a new image is hold in memory, it saves the current content into a diskfile, according to the settings of filename, imagetype, targetFilename and outputFormat. Returns a PageImage-Object!
      -------------------------------------------------------------------

      * release

      release()
      return: void (nothing) if you, for what ever reason, first load image into memory but than do not save it, you should call release() to do the dishes! 😉 If you use pimSave() to leave the ImageManipulator, release() is called automatically.
      -------------------------------------------------------------------

      * getOptions

      getOptions()
      return: associative array with all final option values example:
      ["autoRotation"] bool(true) ["upscaling"] bool(false) ["cropping"] bool(true) ["quality"] int(90) ["sharpening"] string(6) "medium" ["targetFilename"] string(96) "/htdocs/site/assets/files/1124/pim_prefix_filename.jpg" ["outputFormat"] string(3) "jpg" get {singleOption} ()
      For every valid option there is also a single method that you can call, like getQuality(), getUpscaling(), etc. See method setOptions for a list of valid options!
      -------------------------------------------------------------------

      * getImageInfo

      getImageInfo()
      return: associative array with useful informations of source imagefile example:
      ["type"] string(3) "jpg" ["imageType"] int(2) ["mimetype"] string(10) "image/jpeg" ["width"] int(500) ["height"] int(331) ["landscape"] bool(true) ["ratio"] float(1.5105740181269) ["bits"] int(8) ["channels"] int(3) ["colspace"] string(9) "DeviceRGB" -------------------------------------------------------------------

      * getPimVariations

      getPimVariations()
      return: array of Pageimages Collect all pimVariations of this Pageimage as a Pageimages array of Pageimage objects. All variations created by the core ImageSizer are not included in the collection.
      -------------------------------------------------------------------

      * removePimVariations

      removePimVariations()
      return: pim - (class handle) Removes all image variations that was created using the PIM, all variations that are created by the core ImageSizer are left untouched!
      -------------------------------------------------------------------
      * width

      width($dst_width, $sharpen_mode=null)
      param: $dst_width - (integer) param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you prioritize the width, like with pageimage. Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * height

      height($dst_height, $sharpen_mode=null)
      param: $dst_height - (integer) param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you prioritize the height, like with pageimage. Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * resize

      resize($dst_width=0, $dst_height=0, $sharpen_mode=null)
      param: $dst_width - (integer) default is 0 param: $dst_height - (integer) default is 0 param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you have to set width and / or height, like with pageimage size(). Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * stepResize

      stepResize($dst_width=0, $dst_height=0)
      param: $dst_width - (integer) default is 0 param: $dst_height - (integer) default is 0 return: pim - (class handle) this performs a resizing but with multiple little steps, each step followed by a soft sharpening. That way you can get better result of sharpened images.
      -------------------------------------------------------------------

      * sharpen

      sharpen($mode='soft')
      param: $mode - (string) possible values 'none' | 'soft'| 'medium'| 'strong' return: pim - (class handle) Applys sharpening to the current memory image. You can call it with one of the three predefined pattern, or you can pass an array with your own pattern.
      -------------------------------------------------------------------

      * unsharpMask

      unsharpMask($amount, $radius, $threshold)
      param: $amount - (integer) 0 - 500, default is 100 param: $radius - (float) 0.1 - 50, default is 0.5 param: $threshold - (integer) 0 - 255, default is 3 return: pim - (class handle) Applys sharpening to the current memory image like the equal named filter in photoshop.
      Credit for the used unsharp mask algorithm goes to Torstein Hønsi who has created the function back in 2003.
      -------------------------------------------------------------------

      * smooth

      smooth($level=127)
      param: $level - (integer) 1 - 255, default is 127 return: pim - (class handle) Smooth is the opposite of sharpen. You can define how strong it should be applied, 1 is low and 255 is strong.
      -------------------------------------------------------------------

      * blur

      blur()
      return: pim - (class handle) Blur is like smooth, but cannot called with a value. It seems to be similar like a result of smooth with a value greater than 200.
      -------------------------------------------------------------------

      * crop

      crop($pos_x, $pos_y, $width, $height)
      param: $pos_x - (integer) start position left param: $pos_y - (integer) start position top param: $width - (integer) horizontal length of desired image part param: $height - (integer) vertical length of desired image part return: pim - (class handle) This method cut out a part of the memory image.
      -------------------------------------------------------------------

      * canvas

      canvas($width, $height, $bgcolor, $position, $padding)
      param: $width = mixed, associative array with options or integer, - mandatory! param: $height = integer, - mandatory if $width is integer! param: $bgcolor = array with rgb or rgba, - default is array(255, 255, 255, 0) param: $position = one out of north, northwest, center, etc, - default is center param: $padding = integer as percent of canvas length, - default is 0 return: pim - (class handle) This method creates a canvas according to the given width and height and position the memory image onto it.
      You can pass an associative options array as the first and only param. With it you have to set width and height and optionally any other valid param. Or you have to set at least width and height as integers.
      Hint: If you want use transparency with rgba and your sourceImage isn't of type PNG, you have to define 'png' as outputFormat with your initially options array or, for example, like this: $image->pimLoad('prefix')->setOutputFormat('png')->canvas(300, 300, array(210,233,238,0.5), 'c', 5)->pimSave()
      -------------------------------------------------------------------

      * flip

      flip($vertical=false)
      param: $vertical - (boolean) default is false return: pim - (class handle) This flips the image horizontal by default. (mirroring)
      If the boolean param is set to true, it flips the image vertical instead.
      -------------------------------------------------------------------

      * rotate

      rotate($degree, $backgroundColor=127)
      param: $degree - (integer) valid is -360 0 360 param: $backgroundColor - (integer) valid is 0 - 255, default is 127 return: pim - (class handle) This rotates the image. Positive values for degree rotates clockwise, negative values counter clockwise. If you use other values than 90, 180, 270, the additional space gets filled with the defined background color.
      -------------------------------------------------------------------

      * brightness

      brightness($level)
      param: $level - (integer) -255 0 255 return: pim - (class handle) You can adjust brightness by defining a value between -255 and +255. Zero lets it unchanged, negative values results in darker images and positive values in lighter images.
      -------------------------------------------------------------------

      * contrast

      contrast($level)
      param: $level - (integer) -255 0 255 return: pim - (class handle) You can adjust contrast by defining a value between -255 and +255. Zero lets it unchanged, negative values results in lesser contrast and positive values in higher contrast.
      -------------------------------------------------------------------

      * grayscale

      grayscale()
      return: pim - (class handle) Turns an image into grayscale. Remove all colors.
      -------------------------------------------------------------------

      * sepia

      sepia()
      return: pim - (class handle) Turns the memory image into a colorized grayscale image with a predefined rgb-color that is known as "sepia".
      -------------------------------------------------------------------

      * colorize

      colorize($anyColor)
      param: $anyColor - (array) like css rgb or css rgba - but with values for rgb -255 - +255,  - value for alpha is float 0 - 1, 0 = transparent  1 = opaque return: pim - (class handle) Here you can adjust each of the RGB colors and optionally the alpha channel. Zero lets the channel unchanged whereas negative values results in lesser / darker parts of that channel and higher values in stronger saturisation of that channel.
      -------------------------------------------------------------------

      * negate

      negate()
      return: pim - (class handle) Turns an image into a "negative".
      -------------------------------------------------------------------

      * pixelate

      pixelate($blockSize=3)
      param: $blockSize - (integer) 1 - ??, default is 3 return: pim - (class handle) This apply the well known PixelLook to the memory image. It is stronger with higher values for blockSize.
      -------------------------------------------------------------------

      * emboss

      emboss()
      return: pim - (class handle) This apply the emboss effect to the memory image.
      -------------------------------------------------------------------

      * edgedetect

      edgedetect()
      return: pim - (class handle) This apply the edge-detect effect to the memory image.
      -------------------------------------------------------------------

      * getMemoryImage

      getMemoryImage()
      return: memoryimage - (GD-Resource) If you want apply something that isn't available with that class, you simply can check out the current memory image and apply your image - voodoo - stuff
      -------------------------------------------------------------------

      * setMemoryImage

      setMemoryImage($memoryImage)
      param: $memoryImage - (GD-Resource) return: pim - (class handle) If you are ready with your own image stuff, you can check in the memory image for further use with the class.
      -------------------------------------------------------------------

      * watermarkLogo

      watermarkLogo($pngAlphaImage, $position='center', $padding=2)
      param: $pngAlphaImage - mixed [systemfilepath or PageImageObject] to/from a PNG with transparency param: $position - (string) is one out of: N, E, S, W, C, NE, SE, SW, NW,
      - or: north, east, south, west, center, northeast, southeast, southwest, northwest
      default is 'center' param: $padding - (integer) 0 - 25, default is 5, padding to the borders in percent of the images length! return: pim - (class handle) You can pass a transparent image with its filename or as a PageImage to the method. If the watermark is bigger than the destination-image, it gets shrinked to fit into the targetimage. If it is a small watermark image you can define the position of it:
      NW - N - NE | | | W - C - E | | | SW - S - SE
      The easiest and best way I have discovered to apply a big transparency watermark to an image is as follows:
      create a square transparent png image of e.g. 2000 x 2000 px, place your mark into the center with enough (percent) of space to the borders. You can see an example here! The $pngAlphaImage get centered and shrinked to fit into the memory image. No hassle with what width and / or height should I use?, how many space for the borders?, etc.
      -------------------------------------------------------------------

      * watermarkLogoTiled

      watermarkLogoTiled($pngAlphaImage)
      param: $pngAlphaImage - mixed [systemfilepath or PageImageObject] to/from a PNG with transparency return: pim - (class handle) Here you have to pass a tile png with transparency (e.g. something between 150-300 px?) to your bigger images. It got repeated all over the memory image starting at the top left corner.
      -------------------------------------------------------------------

      * watermarkText

      watermarkText($text, $size=10, $position='center', $padding=2, $opacity=50, $trueTypeFont=null)
      param: $text - (string) the text that you want to display on the image param: $size - (integer) 1 - 100, unit = points, good value seems to be around 10 to 15 param: $position - (string) is one out of: N, E, S, W, C, NE, SE, SW, NW,
      - or: north, east, south, west, center, northeast, southeast, southwest, northwest
      default is 'center' param: $padding - (integer) 0 - 25, default is 2, padding to the borders in percent of the images length! param: $opacity- (integer) 1 - 100, default is 50 param: $trueTypeFont - (string) systemfilepath to a TrueTypeFont, default is freesansbold.ttf (is GPL & comes with the module) return: pim - (class handle) Here you can display (dynamic) text with transparency over the memory image. You have to define your text, and optionally size, position, padding, opacity for it. And if you don't like the default font, freesansbold, you have to point to a TrueTypeFont-File of your choice.
      Please have a look to example output: http://processwire.com/talk/topic/4264-release-page-image-manipulator/page-2#entry41989
      -------------------------------------------------------------------





      PageImage Manipulator - Example Output


    • By d'Hinnisdaël
      Format Datetime fields as Carbon instances.
      You can find the latest release and the complete readme on Github.
      Installation
      composer require daun/datetime-carbon-format Usage
      All Datetime fields will now be formatted as Carbon instances instead of strings. Some examples:
      // $page->date is a Datetime field // Output format: j/n/Y echo $page->date; // 20/10/2020 echo $page->date->add('7 days'); // 27/10/2020 echo $page->date->format('l, F j'); // Monday, October 20 echo $page->date->year; // 2020 echo $page->date->diffForHumans(); // 28 minutes ago Frontend only
      The ProcessWire admin seems to expect datetime fields to be strings. This module will only return Carbon instances on frontend page views.
      Date output format
      When casting a Carbon instance to a string (usually when outputting the field in a template), the field's date output format will be respected.
      Links
      GitHub • Readme • Carbon docs


      PS. I remember reading about a Carbon module in a recent newsletter, but couldn't find it anywhere. Was that you, @bernhard?
    • By MoritzLost
      TrelloWire
      This is a module that allows you to automatically create Trello cards for ProcessWire pages and update them when the pages are updated. This allows you to setup connected workflows. Card properties and change handling behaviour can be customized through the extensive module configuration. Every action the module performs is hookable, so you can modify when and how cards are created as much as you need to. The module also contains an API-component that makes it easy to make requests to the Trello API and build your own connected ProcessWire-Trello workflows.
      Warning: This module requires ProcessWire 3.0.167 which is above the current stable master release at the moment.
      Features
      All the things the module can do for you without any custom code: Create a new card on Trello whenever a page is added or published (you can select applicable templates). Configure the target board, target list, name and description for new cards. Add default labels and checklists to the card. Update the card whenever the page is updated (optional). When the status of the card changes (published / unpublished, hidden / unhidden, trashed / restored or deleted), move the card to a different list or archive or delete it (configurable). You can extend this through hooks in many ways: Modifiy when and how cards are created. Modify the card properties (Target board & list, title, description, et c.) before they are sent to Trello. Create your own workflows by utilizing an API helper class with many convenient utility methods to access the Trello API directly. Feedback & Future Plans
      Let me know what you think! In particular:
      If you find any bugs report them here or on Github, I'll try to fix them. This module was born out of a use-case for a client project where we manage new form submissions through Trello. I'm not sure how many use-cases there are for this module. If you do use it, tell me about it! The Trello API is pretty extensive, I'll try to add some more helper methods to the TrelloWireApi class (let me know if you need anything in particular). I'll think about how the module can support different workflows that include Twig – talk to me if you have a use-case! Next steps could be a dashboard to manage pages that are connected to a Trello card, or a new section in the settings tab to manage the Trello connection. But it depends on whether there is any interest in this 🙂 Links
      Repository on Github Complete module documentation (getting started, configuration & API documentation) TrelloWire in the modules directory Module configuration

    • By David Karich
      ProcessWire InputfieldRepeaterMatrixDuplicate
      Thanks to the great ProModule "RepeaterMatrix" I have the possibility to create complex repeater items. With it I have created a quite powerful page builder. Many different content modules, with many more possible design options. The RepeaterMatrix module supports the cloning of items, but only within the same page. Now I often have the case that very design-intensive pages and items are created. If you want to use a content module on a different page (e.g. in the same design), you have to rebuild each item manually every time.
      This module extends the commercial ProModule "RepeaterMatrix" by the function to duplicate repeater items from one page to another page. The condition is that the target field is the same matrix field from which the item is duplicated. This module is currently understood as proof of concept. There are a few limitations that need to be considered. The intention of the module is that this functionality is integrated into the core of RepeaterMatrix and does not require an extra module.
      Check out the screencast
      What the module can do
      Duplicate multible repeater items from one page to another No matter how complex the item is Full support for file and image fields Multilingual support Support of Min and Max settings Live synchronization of clipboard between multiple browser tabs. Copy an item and simply switch the browser tab to the target page and you will immediately see the past button Support of multiple RepeaterMatrix fields on one page Configurable which roles and fields are excluded Configurable dialogs for copy and paste Duplicated items are automatically pasted to the end of the target field and set to hidden status so that changes are not directly published Automatic clipboard update when other items are picked Automatically removes old clipboard data if it is not pasted within 6 hours Delete clipboard itself by clicking the selected item again Benefit: unbelievably fast workflow and content replication What the module can't do
      Before an item can be duplicated in its current version, the source page must be saved. This means that if you make changes to an item and copy this, the old saved state will be duplicated Dynamic loading is currently not possible. Means no AJAX. When pasting, the target page is saved completely No support for nested repeater items. Currently only first level items can be duplicated. Means a repeater field in a repeater field cannot be duplicated. Workaround: simply duplicate the parent item Dynamic reloading and adding of repeater items cannot be registered. Several interfaces and events from the core are missing. The initialization occurs only once after the page load event Attention, please note!
      Nested repeaters cannot be supported technically. Therefore a check is made to prevent this. However, a nested repeater can only be detected if the field name ends for example with "_repeater1234". For example, if your MatrixRepeater field is named like this: "content_repeater" or "content_repeater123", this field is identified as nested and the module does not load. In version 2.0.1 the identification has been changed so that a field ending with the name repeater is only detected as nested if at least a two-digit number sequence follows. But to avoid this problem completely, make sure that your repeater matrix field does NOT end with the name "repeater".
      Changelog

      2.0.1
      Bug fix: Thanks to @ngrmm I could discover a bug which causes that the module cannot be loaded if the MatrixRepeater field ends with the name "repeater". The code was adjusted and information about the problem was provided 2.0.0
      Feature: Copy multiple items at once! The fundament for copying multiple items was created by @Autofahrn - THX! Feature: Optionally you can disable the copy and/or paste dialog Bug fix: A fix suggestion when additional and normal repeater fields are present was contributed by @joshua - THX! 1.0.4
      Bug fix: Various bug fixes and improvements in live synchronization Bug fix: Items are no longer inserted when the normal save button is clicked. Only when the past button is explicitly clicked Feature: Support of multiple repeater fields in one page Feature: Support of repeater Min/Max settings Feature: Configurable roles and fields Enhancement: Improved clipboard management Enhancement: Documentation improvement Enhancement: Corrected few typos #1 1.0.3
      Feature: Live synchronization Enhancement: Load the module only in the backend Enhancement: Documentation improvement 1.0.2
      Bug fix: Various bug fixes and improvements in JS functions Enhancement: Documentation improvement Enhancement: Corrected few typos 1.0.1
      Bug fix: Various bug fixes and improvements in the duplication process 1.0.0
      Initial release Support this module
      If this module is useful for you, I am very thankful for your small donation: Donate 5,- Euro (via PayPal – or an amount of your choice. Thank you!)
      Download this module (Version 2.0.1)
      > Github: https://github.com/FlipZoomMedia/InputfieldRepeaterMatrixDuplicate
      > PW module directory: https://modules.processwire.com/modules/inputfield-repeater-matrix-duplicate/
      > Old stable version (1.0.4): https://github.com/FlipZoomMedia/InputfieldRepeaterMatrixDuplicate/releases/tag/1.0.4
×
×
  • Create New...
