kixe

FieldtypeColor

Recommended Posts

FieldtypeColor is on github

Fieldtype stores a 32bit integer value reflecting a RGBA value.

Input
5 types of Inputfields provided

  1. Html5 Inputfield of type='color' (if supported by browser)
  2. Inputfield type='text' expecting a 24bit hexcode string (RGB). Input format: '#4496dd'.
    The background color of the input field shows selected color
  3. Inputfield of type='text' expecting 32bit hexcode strings (RGB + alpha channel) Input format: '#fa4496dd'
  4. Inputfield with Spectrum Color Picker
    (Options modifiable)
  5. Inputfield type='text' with custom JavaScript and/or CSS (since version 1.0.3)

Output
Define output format under 'Details' tab in field settings. Select from the following 9 options

  1. string 6-digit hex color. Example: '#4496dd'
  2. string 8-digit hex color (limited browser support).  Example: '#fa4496dd'
  3. string CSS color value RGB. Example: 'rgb(68, 100, 221)'
  4. string CSS color value RGB. Example: 'rgba(68, 100, 221, 0.98)'
  5. string CSS color value RGB. Example: 'hsl(227, 69.2%, 56.7%)'
  6. string CSS color value RGB. Example: 'hsla(227, 69.2%, 56.7%, 0.98)'
  7. string 32bit raw hex value. Example: 'fa4496dd'(unformatted output value)
  8. int 32bit. Example: '4198799069' (storage value)
  9. array()
    array(
            [0] => 0-255, // opacity
            [1],['r'] => 0-255,
            [2],['g'] => 0-255,
            [3],['b'] => 0-255,
            ['rx'] => 00-ff,
            ['gx'] => 00-ff,
            ['bx'] => 00-ff,
            ['ox'] => 00-ff, // opacity
            ['o'] => 0-1 // opacity
        )



The Fieldtype includes
Spectrum Color Picker by Brian Grinstead


SCREENSHOTS

Input type=text with changing background and font color (for better contrast)
5961bca865f8b_Bildschirmfoto2017-07-09um07_15_59.jpg.f1eb7e6755c9f4294ed153c55ce21099.jpg5961bcada5afb_Bildschirmfoto2017-07-09um07_15_44.jpg.7973bcaf133505bbd00e2f7d376a766b.jpg5961bcbc7a5e4_Bildschirmfoto2017-07-09um07_15_28.jpg.2d5a1f057957060664401e59a5cd5c27.jpg5961bcc326fc1_Bildschirmfoto2017-07-09um07_15_11.jpg.5c5e04f682c8c45ede37075f6754b108.jpg

Input type=color (in Firefox)

5961bd89d58be_Bildschirmfoto2017-07-09um07_11_36.jpg.dbfabd7c9baa0539c0955b3ab75c15ae.jpg


Javascript based input (Spectrum Color Picker)

5961be102fdb8_Bildschirmfoto2017-07-09um06_38_04.jpg.650494794d4f7c37be8f458270726ac7.jpg


Settings Output

5961bdf1aa93a_Bildschirmfoto2017-07-09um07_10_19.jpg.0fb6aff0e5d1eed95778a886a1544d52.jpg



Settings Input
5961bdf624096_Bildschirmfoto2017-07-09um07_09_03.jpg.f19af3f408630fde0681923577569cd2.jpg

  • Like 19

Share this post


Link to post
Share on other sites

hi kixe,

thanks for sharing this :) would you mind adding some screenshots or a sample usecase to know when your module would be useful? maybe you could also point out the differences to somas colorpicker module?

thanks!

  • Like 1

Share this post


Link to post
Share on other sites

Updated to Version 1.0.3 with one more Inputfield Option which allows to use any custom JavaScript.
59621ba2834e7_Bildschirmfoto2017-07-09um13_56_41.thumb.jpg.c1bfb55ab2e59b3a0da77e28c8c8a47b.jpg

  • Like 4

Share this post


Link to post
Share on other sites

Some time ago, I made a site for a company which sells wool. In this case I use the fieldtype color for the different colors of a wool product (as a color scheme board). In this case I use the old color picker field (I think it was from Soma). This could be a possible usecase example for this fieldtype.

Share this post


Link to post
Share on other sites

I played around a bit with custom JS based Input. Here are the settings for 3 individual JS based input options:

ColorPicker by Stefan Petr (http://www.eyecon.ro/colorpicker/)

initial JS

$('#{id}').ColorPicker({
    color: '{value}',
    onChange: function (hsb, hex, rgb) {
        $('#{id}').attr('value', '#' + hex);
    }
});

include JS
colorpicker/js/colorpicker.js

include CSS
colorpicker/css/colorpicker.css

5996bb73a3eba_Bildschirmfoto2017-08-17um10_25_35.jpg.dd8c3958bde64fc22e9d0f83bb1191de.jpg





JSColor by Jan Odvarko (http://jscolor.com/)

initial JS

var input = document.getElementById('{id}');
var picker = new jscolor(input);

include JS
jscolor-2.0.4/jscolor.js

5996bb39235e0_Bildschirmfoto2017-08-17um10_56_43.jpg.2fe2df34fbaed5354c851f8a20e515f4.jpg





Color Picker (http://dematte.at)

initial JS

$('#{id}').colorPicker();

include JS
dematte/jQueryColorPicker.min.js

Pull js file from here: https://github.com/PitPik/colorPicker/blob/master/jQuery_implementation/jQueryColorPicker.min.js

5996baff218b8_Bildschirmfoto2017-08-17um11_22_03.jpg.ce0d7c3e52b7a163a15ebe2d8ab50f37.jpg










  • Like 2

Share this post


Link to post
Share on other sites

Thanks  kixe for this great picker, but I do not know why when saving color lost settings to the defolt? I'm using processwire 3.0.62 Master

Share this post


Link to post
Share on other sites

@rafaoski
Are you talking about the field settings? Could you please explain more detailed what happened that I can reproduce the issue. Thanks.

Share this post


Link to post
Share on other sites

I'm sorry kixe for my bad english ... Maybe this video will bring something ... Maybe somewhere I make a mistake when configuring the plugin ... View and rate ...



Share this post


Link to post
Share on other sites

@rafaoski
thanks for the video. Unfortunately I cannot reproduce. Could you check if the value is changed in the database? It looks like the setting is falling back to a previous default value. Could you unset the default value and try again?

I made a screenshop of the fieldsettings. Is it similar to yours? Did you try custom js code?

59a4293c5a7f7_Bildschirmfoto2017-08-28um16_30_10.jpg.f4f13eb7b7a389c6775407e186f16d53.jpg

Share this post


Link to post
Share on other sites

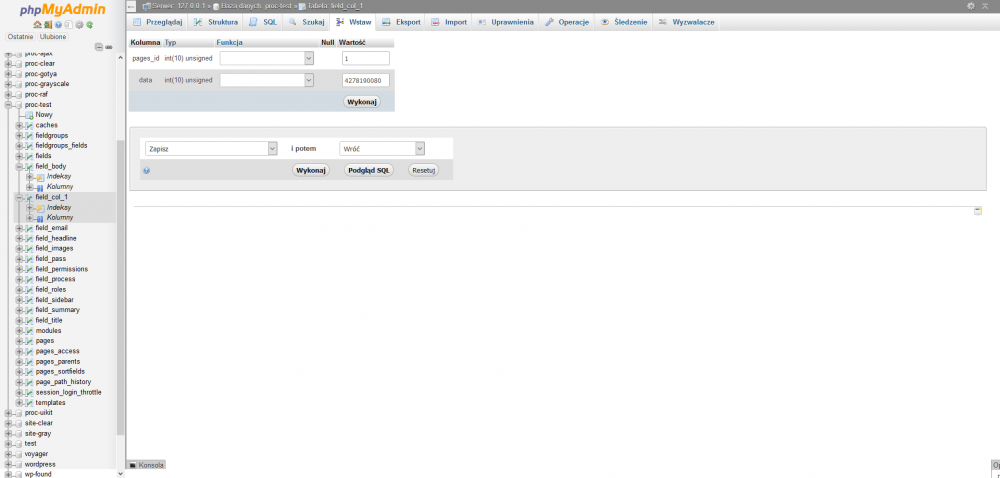

Thanks kixe for the reply ... My table is out of date:

Firefox_Screenshot_2017-08-28T16-16-44_798Z.thumb.png.92609adda1bb8ddee5c973591e71369d.png

And Field Settings Screenshot :


I did not add my own js code ... How to solve the problem I will let you know ... Thanks again for help ...

Share this post


Link to post
Share on other sites

I tested on Hosting and it works Correctly ... It's a bit weird, maybe it's through the Win 10 + Xampp Server ...

Share this post


Link to post
Share on other sites

I will be testing Laragon ... I just started to refresh the partition on some Linux derivative (maybe manjaro) ... I have to admit that Processwire has very good people around you who help ... Thank you both @kixe and you @bernhard ... Next time before I start looking for problems I will check on other machines - Such a lesson for the future :)

  • Like 1

Share this post


Link to post
Share on other sites

I'm having the problem that i always get the 2nd option output (8 digit hex color, and no hash), no matter what i select for the Output Format.

Right now i'm doing an ltrim($widget->color, 'ff');  on the output, and then adding the hash myself, but would be good to get this fixed...

TIA

Share this post


Link to post
Share on other sites

@Macrura

Page output formatting?

$page->of(false);
var_dump($page->color); // string(8) "ff5a01fd"
$page->of(true);
var_dump($page->color); // string(7) "#5a01fd"



  • Like 1

Share this post


Link to post
Share on other sites

Yes - thanks, i'm using the color on an admin dashboard, which is being wireRendered from a module, so i assume that output formatting is off; Is there any way to get the formatted output in this situation?

Share this post


Link to post
Share on other sites

If $widget is a page object it should be possible to put outputformatting on just to grab the value and switch it of after.

If not you can use the formatValue() function from the module. You need a page and a field object as arguments. $page can be any page in this case but $field should be the one where the OF type is stored.

$FieldtypeColor = wire('modules')->get('FieldtypeColor');
$field = new Field();
$unformattedColor = "ff5a01fd";
$page = new Page();
$field->type = $FieldtypeColor;
$field->outputFormat = 0;
$color = $FieldtypeColor->formatValue($page,$field,$unformattedColor);
var_dump($color); // string(7) "#5a01fd"



  • Like 2

Share this post


Link to post
Share on other sites

this does work:

    $FieldtypeColor = wire('modules')->get('FieldtypeColor');
    $field = $fields->get('dw_color');
    $field->outputFormat = 0;
    $widgetColor = $FieldtypeColor->formatValue($widget,$field,$widget->dw_color);

i just wonder if it is simpler/more efficient to do it this way:

$widgetColor = '#' . ltrim($widget->dw_color, 'ff');



Share this post


Link to post
Share on other sites

Hi, thanks for this really nice module.

I'm trying to initiate this module from within another module and have no luck so far. This is my config:

$colors[] = [
    'name'         => 'color',
    'type'         => 'color',
    // 'inputType'    => 3,
    'outputFormat' => 3,
    'showInput'    => true,
    'defaultValue' => '#ff0080ff',
    'collapsed'    => 0,
    'alpha'        => 0,
    'spectrum'     => "showInput: true\nallowEmpty:true\nshowAlpha: true\nshowInitial: true\nchooseText: \"Alright\",\ncancelText: \"No way\"\npreferredFormat: \"hex3\"",
    'class'        => 'FieldtypeColor',
    'label'        => $this->_($key),
    'description'  => $this->_(''),
    'required'     => false,
    'value'        => '#ff3300',
    'columnWidth'  => 25,
    'notes'        => $this->_('Initial value: ' . $value),
];

If I comment in "inputType => 3", ProcessWire returns "The process returned no content." when saving my modules config. Ok, as a workaround, I could live without Spectrum. When is commented out, it saves and returns the modules config page correctly.

But the field "color" doesn't show the value of #ff0000. It returns in JS console: "The specified value "#00000" does not conform to the required format." That's weird: where has my Value of "#ff3300" gone? Alright, it seems to return the FieldtypeColor's default of "#000000". But wait, there is a "0" missing in JS error log's message...

Obviously I'm doing something wrong here. I hope someone has an idea how to call this module from within my other custom module correctly. Thanks in advance.

Share this post


Link to post
Share on other sites

@titanium

Sorry for the extremely delayed answer.

On 22.10.2017 at 9:28 PM, titanium said:

But wait, there is a "0" missing in JS error log's message...

Thanks for pointing on this. I pushed an update which allows to use InputfieldColor as a config field for modules.

I have made some changes in the code you have posted and tested it within the following module. Everything seems to work. Please check out.

<?php namespace ProcessWire;

class My2Module extends WireData implements Module, ConfigurableModule {

	/**
	 *
	 * @return array
	 *
	 */
	public static function getModuleInfo() {

		return array(
			'title' => 'My2Module',
			'summary' => 'Module with Config Input of type Color',
			'version' => 100
			);
	}

	static public function getDefaultConfig() {
		return array(
			'color' => '#ff3300'
		);
	}

	public function __construct() {
		foreach(self::getDefaultConfig() as $key => $value) {
			$this->$key = $value;
		}
	}

	/**
	 * Initialize, attach hooks
	 *
	 */
	public function init() {
		// ...
	}

	/**
	 * module settings
	 *
	 */
	static public function getModuleConfigInputfields(array $data) {

		$fields = new InputfieldWrapper();
		$defaults = self::getDefaultConfig();
		$data = array_merge($defaults, $data);

		$colors = [
				'name'         => 'color',
				'inputType'    => 3,
				'type'         => 'color', // will search for 'InputfieldColor'
				// 'outputFormat' => 3, // REMOVED outputFormat is related to the Fieldtype and not to the Inputfield
				// 'defaultValue' => '#ff0080ff', // REMOVED @see getDefaultConfig() and __construct()
				// 'alpha'        => 0, // REMOVED related to 'inputType=4', otherwise automatically set by the Inputfield
				'spectrum'     => "showInput: true\nallowEmpty:true\nshowAlpha: true\nshowInitial: true\nchooseText: \"Alright\"\ncancelText: \"No way\"\npreferredFormat: \"hex3\"",
				// 'class'        => 'FieldtypeColor', // REMOVED (unnecessary)
				'label'        => __('Label'),
				'description'  => __('Description'),
				'required'     => false,
				'value'        => $data['color'],
				'notes'        => __('Initial value: '.$defaults['color']),
			];

		$fields->add($colors);
		return $fields;
	}
}



  • Like 3

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Macrura
      Field Descriptions Extended
      This module enables you to extend field descriptions by dividing short descriptions with a longer text that is revealed in a toggle.
      Modules Directory: http://modules.processwire.com/modules/field-descriptions-extended/
      Github: https://github.com/outflux3/FieldDescriptionsExtended
      Extending your field descriptions using the standard field's description field.
      Once this module is installed, it will automatically search your description field for the presence of 5 dashes (-----).
      Any content above the 5 dashes will be visible and the content below the dashes will be hidden. A 'More...' link will appear at the end of the short description which when clicked will reveal the rest of the description.
      Using Simple Markdown Editor with the description field
      If you have Simple Markdown Editor (InputfieldSimpleMDE) installed, you can enable the field description to have that editor.
      *When using Simple MDE, you can use the button (Insert Horizontal Line) instead of typing 5 dashes. More about SimpleMDE.
      Extending your field descriptions using content from a ProcessWire Page for the field description.
      You may use the content from a ProcessWire page as a field description. This would allow you to easily insert images, links, and use hanna codes.
      To use page content for your field descriptions, please follow these instructions:
      Install Select Fields module (FieldtypeFields) http://modules.processwire.com/modules/fieldtype-fields/ Create a new field using this field type, e.g. field_select. Add the field to any template you will be using for your field descriptions. Setup your help pages (for example under a settings branch) where you will store the field description content,using the template containing the Field Select. Add content to a page and select the field where that content should show. To show a short text before the link to the longer content, separate them with 5 dashes Be sure to update your settings on this page, first enable page content descriptions,then specify the name of the Select Fields field, template to search, and content field. If you create a field description using this method, please note that the description field must be blank for contexts where you want the page content to appear.
      You can freely use template context for field descriptions, but the Page Content method is not context sensitive and will display under all contexts where the description is blank.
      ----
      original post:
      This is a new module, hope to release soon, which allows extended field descriptions, in currently 2 ways.
      The main feature of the module is that you can have a short description and then a 'more...' link which drops down a longer block of text.
      This is achieved by separating the intro/visible text and the rest with 5 dashes.

      Example setup:

      the 2nd way is if you are using AdminThemeUiKit, you can show extended field instructions in a panel. The content of the panel is edited on a regular PW page. This use case would probably not be that common, but if you had a field that required some extended instructions for how to use, this could be useful; Also, since this allows you to target information and instructions down at the field level, it could reduce the amount of documentation needed on a global level, since it is a lot more context targeted.

    • By Robin S
      Breadcrumb Dropdowns
      Adds dropdown menus of page edit links to the breadcrumbs in Page Edit.

      Installation
      Install the Breadcrumb Dropdowns module. The module requires ProcessWire >= v3.0.83 and AdminThemeUikit.
      There is a checkbox option in the module config that determines if the breadcrumb dropdowns will include pages that the user does not have permission to edit.
      Features/details
      The module adds an additional breadcrumb item at the end for the currently edited page. That's because I think it's more intuitive for the dropdown under each breadcrumb item to show the item's sibling pages rather than the item's child pages. In the dropdown menus the current page and the current page's parents are highlighted in a crimson colour to make it easier to quickly locate them in case you want to edit the next or previous sibling page. If the option to include uneditable pages is selected then those pages are indicated by a reduced text opacity and the "not-allowed" cursor is shown on hover. There is a limit of 25 sibling pages per dropdown for performance reasons and to avoid the dropdown becoming unwieldy. Incompatibilities
      This module replaces the AdminThemeUikit::renderBreadcrumbs method so will potentially be incompatible with other modules that hook the same method.

      https://modules.processwire.com/modules/breadcrumb-dropdowns/
      https://github.com/Toutouwai/BreadcrumbDropdowns
    • By joshuag
      Hey guys,
      Thought I would share a quick preview of Designme. A module we (Eduardo @elabx and I) are building for visually laying out your templates/edit screens. 🙂
      This is a really quick, zero polish screen grab. FYI.
      Video #2 - UPDATE
      This new video shows the following features in Designme:
      Re-arranging fields via Drag & Drop Re-sizing fields via Dragging. Adjusting field settings - with live refresh. Working on "hidden" fields while Designme is active. Creating New fields. Deleting fields. Creating/Deleting Tabs. Dragging fields between tabs. Creating fieldsets. Tagging/Un-tagging fields. Fields without headers expand when hovered (like checkboxes). Live filtering of fields in the sidebar. Ability to adjust (all) Template settings without leaving Designme. Template File Tree Editing Template files source code with ACE Editor. Editing Multiple files with ACE Editor. (New Tabs) Saving files. Techie stuff Fields load their own js/css dependancies. *ready to use on creation (*most fields)  Everything happens via Ajax to ProcessPageEdit (via module + hooks). Designme has a JS api that you can use.  All actions trigger events.  We would love any detailed feedback on what you see so far. If you are interested in testing Designme. Let me know below. 🙂


      Video #1.

    • By dreerr
      TemplateEnginePug (formally TemplateEngineJade)

      This module adds Pug templates to the TemplateEngineFactory. It uses https://github.com/pug-php/pug to render templates.
      doctype html html(lang='en') head meta(http-equiv='content-type', content='text/html; charset=utf-8') title= $page->title link(rel='stylesheet', type='text/css', href=$config->urls->templates . 'styles/main.css') body include header.pug h1= $page->title if $page->editable() p: a(href=$page->editURL) Edit Project on GitHub: github.com/dreerr/TemplateEnginePug
      Project in modules directory: modules.processwire.com/modules/template-engine-pug/

      For common problems/features/questions about the Factory, use the TemplateEngineFactory thread.

    • By tpr
      ProcessNetteTester
      Run Nette Tester tests within ProcessWire admin.
      (continued from here)

      Features
      AJAX interface for running Nette Tester tests, in bulk or manually display counter, error message and execution time in a table run all tests at once or launch single tests show formatted test error messages and report PHP syntax errors stop on first failed test (optional) hide passed tests (optional) display failed/total instead passed/total (optional) re-run failed tests only (optional) auto scroll (optional) include or exclude tests based on query parameters start/stop all tests with the spacebar reset one test or all tests (ctrl+click) https://modules.processwire.com/modules/process-nette-tester/
      https://github.com/rolandtoth/ProcessNetteTester
