Robin S

HannaCodeDialog

Recommended Posts

I have had this module sitting in a 95% complete state for a while now and have finally made the push to get it out there. Thanks to @teppo for his Hanna Code Helper module which I referred to and borrowed from during development.

http://modules.processwire.com/modules/hanna-code-dialog/
https://github.com/Toutouwai/HannaCodeDialog

HannaCodeDialog

A module for ProcessWire CMS/CMF. Provides a number of enhancements for working with Hanna Code tags in CKEditor. The main enhancement is that Hanna tags in a CKEditor field may be double-clicked to edit their attributes using core ProcessWire inputfields in a modal dialog.

Requires the Hanna Code module.

Installation

Install the HannaCodeDialog module using any of the normal methods.

For any CKEditor field where you want the "Insert Hanna tag" dropdown menu to appear in the CKEditor toolbar, visit the field settings and add "HannaDropdown" to the "CKEditor Toolbar" settings field.

Module configuration

Visit the module configuration screen to set any of the following:

  • Exclude prefix: Hanna tags named with this prefix will not appear in the CKEditor toolbar dropdown menu for Hanna tag insertion.
  • Exclude Hanna tags: Hanna tags selected here will not appear in the CKEditor toolbar dropdown menu for Hanna tag insertion.
  • Background colour of tag widgets: you can customise the background colour used for Hanna tags in CKEditor if you like.
  • Dialog width: in pixels
  • Dialog height: in pixels

Features

Insert tag from toolbar dropdown menu

Place the cursor in the CKEditor window where you want to insert your Hanna tag, then select the tag from the "Insert Hanna tag" dropdown.

'Insert Hanna tag' dropdown

Advanced: if you want to control which tags appear in the dropdown on particular pages or templates you can hook HannaCodeDialog::getDropdownTags. See the forum support thread for examples .

Edit tag attributes in modal dialog

Insert a tag using the dropdown or double-click an existing tag in the CKEditor window to edit the tag attributes in a modal dialog.

Modal dialog

Tags are widgets

Hanna tags that have been inserted in a CKEditor window are "widgets" - they have a background colour for easy identification, are protected from accidental editing, and can be moved within the text by drag-and-drop.

Hanna tag widget

Options for tag attributes may be defined

You can define options for a tag attribute so that editors must choose an option rather than type text. This is useful for when only certain strings are valid for an attribute and also has the benefit of avoiding typos.

Add a new attribute for the Hanna tag, named the same as the existing attribute you want to add options for, followed by "__options". The options themselves are defined as a string, using a pipe character as a delimiter between options. Example for an existing attribute named "vegetables":

vegetables__options=Spinach|Pumpkin|Celery|Tomato|Brussels Sprout|Potato

You can define a default for an attribute as normal. Use a pipe delimiter if defining multiple options as the default, for example:

vegetables=Tomato|Potato

Dynamic options

Besides defining static options as above, you can use one Hanna tag to dynamically generate options for another. For instance, you could create a Hanna tag that generates options based on images that have been uploaded to the page, or the titles of children of the page.

Your Hanna tag that generates the options should echo a string of options delimited by pipe characters (i.e. the same format as a static options string).

You will probably want to name the Hanna tag that generates the options so that it starts with an underscore (or whatever prefix you have configured as the "exclude" prefix in the module config), to avoid it appearing as an insertable tag in the HannaCodeDialog dropdown menu.

Example for an existing attribute named "image":

image__options=[[_images_on_page]]

And the code for the _images_on_page tag:

<?php
$image_names = array();
$image_fields = $page->fields->find('type=FieldtypeImage')->explode('name');
foreach($image_fields as $image_field) {
    $image_names = array_unique( array_merge($image_names, $page->$image_field->explode('name') ) );
}
echo implode('|', $image_names);

Advanced: define or manipulate options in a hook

You can hook HannaCodeDialog::prepareOptions to define or manipulate options for a Hanna tag attribute. Your Hanna tag must include a someattribute__options attribute in order for the hook to fire. The prepareOptions method receives the following arguments that can be used in your hook:

  • options_string Any existing string of options you have set for the attribute
  • attribute_name The name of the attribute the options are for
  • tag_name The name of the Hanna tag
  • page The page being edited

If you hook after HannaCodeDialog::prepareOptions then your hook should set $event->return to an array of option values, or an associative array in the form of $value => $label.

Choice of inputfield for attribute

You can choose the inputfield that is used for an attribute in the dialog.

For text attributes the supported inputfields are text (this is the default inputfield for text attributes so it isn't necessary to specify it if you want it) and textarea. Note: any manual line breaks inside a textarea are removed because these will break the CKEditor tag widget.

Inputfields that support the selection of a single option are select (this is the default inputfield for attributes with options so it isn't necessary to specify it if you want it) and radios.

Inputfields that support the selection of multiple options are selectmultiple, asmselect and checkboxes.

You can also specify a checkbox inputfield - this is not for attributes with defined options but will limit an attribute to an integer value of 1 or 0.

The names of the inputfield types are case-insensitive.

Example for an existing attribute named "vegetables":

vegetables__type=asmselect

Descriptions and notes for inputfields

You can add a description or notes to an attribute and these will be displayed in the dialog.

Example for an existing attribute named "vegetables":

vegetables__description=Please select vegetables for your soup.
vegetables__notes=Pumpkin and celery is a delicious combination.

Notes

When creating or editing a Hanna tag you can view a basic cheatsheet outlining the HannaCodeDialog features relating to attributes below the "Attributes" config inputfield.

Troubleshooting

HannaCodeDialog includes and automatically loads the third-party CKEditor plugins Line Utilities and Widget. If you have added these plugins to your CKEditor field already for some purpose and experience problems with HannaCodeDialog try deactivating those plugins from the CKEditor field settings.

  • Like 20

Share this post


Link to post
Share on other sites

Great thing @Robin S! Something to make content creation even easier.

I see there is an option to exclude some Hanna codes from the list. What do you think about a whitelist option (preferably overridden on a template basis)?



  • Like 3

Share this post


Link to post
Share on other sites
14 hours ago, Ivan Gretsky said:

What do you think about a whitelist option (preferably overridden on a template basis)?

In v0.0.2 I have added a hookable method that supplies the array of tag names for the dropdown menu. You can use an 'after' hook to control what appears in the dropdown. A couple of examples...

Define the tags for a given template:

$this->addHookAfter('HannaCodeDialog::getDropdownTags', function($event) {
    $page = $event->arguments('page');
    // Show only these tags on pages using the 'basic_page' template
    if($page->template == 'basic_page') {
        $event->return = ['some_tag', 'another_tag'];
    }
});

Remove certain tags for a given template:

$this->addHookAfter('HannaCodeDialog::getDropdownTags', function($event) {
    $page = $event->arguments('page');
    $tags = $event->return;
    // Remove these tags on pages using the 'basic_page' template
    if($page->template == 'basic_page') {
        $filtered_tags = array_filter($tags, function($tag) {
            return !in_array($tag, ['some_tag', 'another_tag']);
        });
        $event->return = array_values($filtered_tags);
    }
});



  • Like 2

Share this post


Link to post
Share on other sites

it's working well so far... the only error i encountered was because the hanna code module config may not even be populated if you install hanna code and use the defaults, and never actually save the module, so one option would be to also check if the index for that module config is set, (around like 150 of the module)...

  • Like 1

Share this post


Link to post
Share on other sites

Thanks for the report @Macrura, fixed with isset() now (no version change).

It bugs me a bit that PW doesn't save default values to the module config automatically in the module installation routine. Seems to me that is the whole point of defining a default - so some config value is present if nothing has been set manually.

Share this post


Link to post
Share on other sites

it's a really amazing module, and will be indispensable for any site using hanna codes, i can already see this solving major problems with users entering incorrect stuff into their hanna codes. the options and description stuff is also amazing work!

  • Like 6

Share this post


Link to post
Share on other sites

Yep, I'm also thinking about adding an option to AOS for adding 3rd party ckeditor plugins because of such cool stuffs :)

Share this post


Link to post
Share on other sites

Thank you, @Robin S, for this nice module. But I'm not sure I can use it for my special case.

To let my editor user embed a video from a internal page into a textarea (CKE), he would insert a HannaCode like this:

[[video source='LINK']]

Here the editor has to doubleclick the string LINK to select it, and click the "Link" Button of the CKE. The modal window "Insert Link" opens, and the user just needs to click "Select Page" to choose the page containing the wanted video in a field of type File. The HannaCode "video" itself would wrap the file data with the necessary code provided by the videoplayer script in use. This all works fine - even if I admit it's not very elegant.

After installing the HannaCodeDialog module, the string LINK appeares in the input field "source" of the dialog, of course. But there it's not possible to evoke the Insert Link action of the CKE. (And if there exist already some other calls of this HannaCode in the CKE-textarea, they also would become the functinoality of the module, and those LINKs were not editable anymore, too.)

So I ended in uninstalling the module. May be this could be solved by using some dynamic options - I didn't dive into these yet.

And of course, very likely my way to use HannaCode at all is a bit stupid, anyway...

Share this post


Link to post
Share on other sites

@ottogal, you are right - this module will not cover your way of using HannaCode.

But if you only needed to select from videos uploaded to the current page instead of letting the editor choose another page (or alternatively from one page that contains all videos), you could adapt the approach I show in the first post for creating select options from images on the page.

Share this post


Link to post
Share on other sites

Yes, I considered this. But indeed each video has to be fetched from it's own page (child of one page "video pool")...  ???

Share this post


Link to post
Share on other sites
17 minutes ago, ottogal said:

But indeed each video has to be fetched from it's own page (child of one page "video pool")

If you have a "one video per page" setup then again you could dynamically generate options using another Hanna tag: get all children of "video pool" that have a video uploaded to them.

Share this post


Link to post
Share on other sites

If people come up with any nifty usages of HannaCodeDialog it would be cool to get a bit of a library going in this thread.

Here's one to get the ball rolling.

Select FormBuilder form

For the foolproof selecting of a FormBuilder form to embed in a CKEditor field.

Import both of the export strings to use this. The code is shown here just for reference.

_formbuilder_forms

Export string (import this into Hanna Code):

!HannaCode:_formbuilder_forms:eyJuYW1lIjoiX2Zvcm1idWlsZGVyX2Zvcm1zIiwidHlwZSI6IjIiLCJjb2RlIjoiPD9waHBcbmVjaG8gaW1wbG9kZSgnfCcsIGl0ZXJhdG9yX3RvX2FycmF5KCRmb3Jtcy0+Z2V0SXRlcmF0b3IoKSkpOyJ9/!HannaCode

Code (just for reference):

<?php
echo implode('|', iterator_to_array($forms->getIterator()));

select_form

Export string (import this into Hanna Code):

!HannaCode:select_form:eyJuYW1lIjoic2VsZWN0X2Zvcm0iLCJ0eXBlIjoiMiIsImNvZGUiOiJcLypoY19hdHRyXG5mb3JtPVwiXCJcbmZvcm1fX29wdGlvbnM9XCJbW19mb3JtYnVpbGRlcl9mb3Jtc11dXCJcbmhjX2F0dHIqXC9cbjw/cGhwXG5pZigkZm9ybSkgZWNobyBcIjxwPmZvcm0tYnVpbGRlclwvJGZvcm08XC9wPlwiOyJ9/!HannaCode

Code (just for reference):

<?php
if($form) echo "<p>form-builder/$form</p>";



  • Like 4

Share this post


Link to post
Share on other sites

This module is just what I was looking for!

I'm using it to create links to a file download page, instead of to the file itself, with the 'dynamic options' method.

However, although it works perfectly, I'm getting a strange error in the Hanna dialogue modal window (see screenshot):


I have tried deleting the file compiler cache, but it did not resolve the issue.

Set-up Info:

  • Hanna Code: ver. 0.2.0
  • HannaCode Dialogue: ver. 0.0.3
  • ProcessWire: ver. 3.0.58
  • PHP: ver.  5.6.21





  • Like 3

Share this post


Link to post
Share on other sites

@LMD, thanks for the report. Please update to v.0.04 where this issue should be fixed.

  • Like 2

Share this post


Link to post
Share on other sites

Hi,

after installing this plugin I get this error:

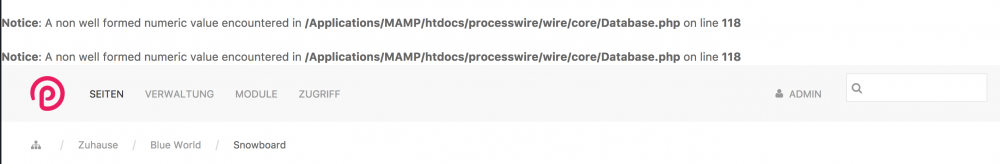

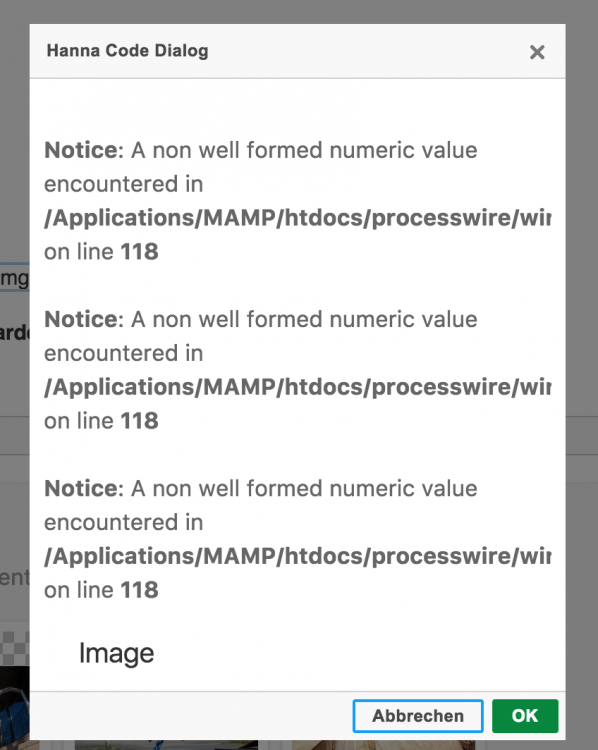

Notice: A non well formed numeric value encountered in /Applications/MAMP/htdocs/processwire/wire/core/Database.php on line 118




Bildschirmfoto 2017-04-10 um 12.45.40.png

Bildschirmfoto 2017-04-10 um 12.45.46.png



Set-up Info:

  • Hanna Code: ver. 0.2.0
  • HannaCode Dialogue: ver. 0.0.4
  • ProcessWire: ver. 3.0.59
  • PHP: ver.  7.0.0

Share this post


Link to post
Share on other sites

Need some help

i installed hanna code-> created one short code

installed hanna code dialog-> but cant see any drop down dialog in page editor

----------------------------------

use latest dev processwire

cant find any options for ckeditor, cant find it at all among modules,  read installation guide for hanna code dialog but it does not make any sense as no idea what to configure

Share this post


Link to post
Share on other sites

you should post in the correct place:



Share this post


Link to post
Share on other sites

cant set dialog working... installed the module

but it doesnt show up anywhere,

also no ckeditor in modules to edit...? but when i open body field i see the ckeditor toolbar(as i think)

--------------

latest dev, hanna code installed->one shortcode defined

Share this post


Link to post
Share on other sites
12 hours ago, Andreas Augustin said:

after installing this plugin I get this error:

Notice: A non well formed numeric value encountered in /Applications/MAMP/htdocs/processwire/wire/core/Database.php on line 118

Thanks for the report. Are you running PHP 7.1? I think that's the version that started enforcing stricter numeric values and throwing errors like this.

I tested in PHP7.1 and I can't reproduce this issue. Also, I can't see how this error could be connected to HannaCodeDialog. From what I've read the "non well formed numeric value" error occurs when some arithmetic or other operation that expects an integer receives a string instead. And line 118 of Database.php is:

$timerTotalSinceStart = Debug::timer() - $timerFirstStartTime;

So probably Debug::timer() or $timerFirstStartTime is not an integer, but this is core code that relates to the debug mode tools and HannaCodeDialog has nothing to do with that.

Do you see the error as soon as you install HannaCodeDialog? Do you see it if you have no Hanna codes defined when the module is installed (I'm wondering if the problem is with one of your Hanna codes rather than the module itself)? If you uninstall HannaCodeDialog does the error go away?



12 hours ago, Andreas Augustin said:

Can I activate the Toolbar in CKEditor without choosing the Hanna Code Textformater and use the $hanna->render() API?

I will support this in the next version. The intention was to avoid needlessly attaching the plugins to every instance of CKEditor if the textformatter wasn't applied to that field, but I guess to support $hanna->render() there's no way to know if a CKEditor field needs the plugins or not.



1 hour ago, danielsl said:

cant set dialog working... installed the module

but it doesnt show up anywhere,

also no ckeditor in modules to edit...? but when i open body field i see the ckeditor toolbar(as i think)

I'm having trouble understanding exactly what's going wrong for you here. Make sure you meet the prerequisites and have completed the installation process:

  • TextformatterHannaCode must be installed.
  • TextformatterHannaCode must be applied as a textformatter to your CKEditor field.
  • You must have at least one Hanna code created.
  • Install HannaCodeDialog module.
  • Edit the settings for your CKEditor field and in "Input > CKEditor Settings > CKEditor Toolbar" add "HannaDropdown" (to be precise, with a comma space separating it from the other items there)
  • Like 1

Share this post


Link to post
Share on other sites

v0.0.5 released. Allows use of the dropdown/dialog in CKEditor fields that do not have the Hanna Code textformatter applied to them, in order to support $hanna->render() usage.

  • Like 1

Share this post


Link to post
Share on other sites

I haven't tried this module so this request may be out of sync but how about adding items that wouldn't require Hanna code module? What I have in mind is having eg a

$config->hannaCodeDialogItems = array( item1 => function () { ... }, ... )

code somewhere in template files so one could easily insert custom items to ckeditor? Perhaps $config could be replaced with $page.

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Robin S
      Another little admin helper module...
      Template Field Widths
      Adds a "Field widths" field to Edit Template that allows you to quickly set the widths of inputfields in the template.

      Why?
      When setting up a new template or trying out different field layouts I find it a bit slow and tedious to have to open each field individually in a modal just to set the width. This module speeds up the process.
      Installation
      Install the Template Field Widths module.
      Config options
      You can set the default presentation of the "Field widths" field to collapsed or open. You can choose Name or Label as the primary identifier shown for the field. The unchosen alternative will become the title attribute shown on hover. You can choose to show the original field width next to the template context field width.
      https://github.com/Toutouwai/TemplateFieldWidths
      https://modules.processwire.com/modules/template-field-widths/
    • By horst
      Croppable Image 3
      for PW 3.0.20+
      Module Version 1.1.16
      Sponsored by http://dreikon.de/, many thanks Timo & Niko!
      You can get it in the modules directory!
      Please refer to the readme on github for instructions.

      -------------------------------------------------------------------------

      Updating from prior versions:

      Updating from Croppable Image 3 with versions prior to 1.1.7, please do this as a one time step:
      In the PW Admin, go to side -> modules -> new, use "install via ClassName" and use CroppableImage3 for the Module Class Name. This will update your existing CroppableImage3 module sub directory, even if it is called a new install. After that, the module will be recogniced by the PW updater module, what makes it a lot easier on further updates.
      -------------------------------------------------------------------------

      For updating from the legacy Thumbnail / CropImage to CroppableImage3 read on here.

      -------------------------------------------------------------------------

    • By MoritzLost
      UPDATE: I have published a stable version of this module!
      Discussion thread:
      Github: https://github.com/MoritzLost/TextformatterPageTitleLinks
      ---
      Hello there,
      I'm working on a tiny textformatter module that searches the text for titles of other pages on your site and creates hyperlinks to them. I'm not sure if something like this exists already, but I haven't found anything in the module directory, so I wrote my own solution 🙂
      It's not properly tested yet and is still missing some functionality I would like to implement, so at the moment it should be considered in BETA. Features include limiting the pages that will get searched by template, and adding a custom CSS class to the generated hyperlinks. As I'm writing this I noticed that it will probably include unpublished and hidden pages at the moment, so yeah ... it's still in development alright 😅
      You can download the module from Github:
      https://github.com/MoritzLost/TextformatterPageTitleLinks
      There's some more information in the readme as well.
      Anyway, let me know what you think! I'm happy about any feedback, possible improvements or ideas on how to improve the module. Cheers.
    • By blad
      Hi guys!
      I just uploaded a module to explore files based on elFinder. By default it will show the "Files" folder.
      Screenshots:

      Video:

      To do:
       More options To fix:
       The function of rotating or scaling an image fails  Image editors V 1.01 (view issue)
      Fixed the bug working with the Multi-Language support ( translation of folders ). Fixed the name of elfinder.en  Github:
      https://github.com/LuisSantiago/ProcessElFinder/
      I hope you like it.
    • By BitPoet
      I'm really in love with FormBuilder, but the one thing missing to match all my end users' expectations were repeatable field groups. Think repeaters, in ProcessWire terms. Our primary application of PW is our corporate intranet, so "lines" of fields are quite common in the forms I build. We have all kinds of request forms where the information for a varying number of colleagues needs to be entered (from meal order to flight booking request) and where it is simply impractical to send a form for each, and I don't want to clutter my forms with multiple instances of fields that may only get used ten percent of the time.
      That's why I started to build FormBuilderMultiplier (link to GitHub).
      What it does:
      Adds an option to make a regular Fieldgroup repeatable Lets you limit the number of instances of a Fieldgroup on the form Adds an "Add row" button the form that adds another instance of the Fieldgroup's fields Adds a counter suffix at the end of every affected field's label Stores the entered values just like regular fields Makes the entered values available in preview and email notifications Supports most text based fields, textareas and selects (really, I haven't had enough time to test all the available choices yet) What it doesn't do (yet):
      Support saving to ProcessWire pages (i.e. real Repeaters) I haven't tested all the validation stuff, Date/Time inputs etc. yet, but since I'm utterly swamped with other stuff at work, I didn't want to wait until I have it polished. Any feedback is welcome. There might also be some issues with different output frameworks that I haven't encountered yet. The forms I work with mostly use UIKit.
      Status:
      Still alpha, so test well before using it in the field.
      Known issues:
      When rows are added, the form's iframe needs to be resized, which isn't completely clean yet.
      How it works:
      The Fieldgroup settings are added through regular hooks, as is the logic that adds the necessary field copies for processing the form and displaying previews.
      "Multiplied" field instances are suffixed with _NUM, where NUM is an incremental integer starting from 1. So if you have add two fields named "surname" and "givenname" to a fieldgroup and check the "multiply" checkbox, the form will initially have "surname_1" and "givenname_1" field (I'm still considering changing that to make the risk to shoot oneself into the foot by having a regular "surname_1" field somewhere else in the form less likely).
      When a "row" is added, the first row is cloned through JS and the counter in the fields' IDs, names and "for" attributes as well as the counter in the label are incremented before appending the copies to the Fieldset container in the form.
      To keep backend and frontend in sync, a hidden field named [name of the fieldset]__multiplier_rows is added to the form. Both the backend and the frontend script use this to store and retrieve the number of "rows".
      ToDo:
      Naturally, add the option to store the data in real repeaters when saving to pages. Do a lot of testing (and likely fixing). Make a few things (like the "Add row" button label etc.) configurable in field(set) context. Add a smooth API to retrieve the multiplied values as WireArrays. The mandatory moving screenshot:
