BitPoet

FormBuilderMultiplier - repeatable Fieldgroups in FormBuilder forms

Recommended Posts

I'm really in love with FormBuilder, but the one thing missing to match all my end users' expectations were repeatable field groups. Think repeaters, in ProcessWire terms. Our primary application of PW is our corporate intranet, so "lines" of fields are quite common in the forms I build. We have all kinds of request forms where the information for a varying number of colleagues needs to be entered (from meal order to flight booking request) and where it is simply impractical to send a form for each, and I don't want to clutter my forms with multiple instances of fields that may only get used ten percent of the time.

That's why I started to build FormBuilderMultiplier (link to GitHub).

What it does:

  • Adds an option to make a regular Fieldgroup repeatable
  • Lets you limit the number of instances of a Fieldgroup on the form
  • Adds an "Add row" button the form that adds another instance of the Fieldgroup's fields
  • Adds a counter suffix at the end of every affected field's label
  • Stores the entered values just like regular fields
  • Makes the entered values available in preview and email notifications
  • Supports most text based fields, textareas and selects (really, I haven't had enough time to test all the available choices yet)

What it doesn't do (yet):

  • Support saving to ProcessWire pages (i.e. real Repeaters)

I haven't tested all the validation stuff, Date/Time inputs etc. yet, but since I'm utterly swamped with other stuff at work, I didn't want to wait until I have it polished. Any feedback is welcome. There might also be some issues with different output frameworks that I haven't encountered yet. The forms I work with mostly use UIKit.

Status:

Still alpha, so test well before using it in the field.

Known issues:

When rows are added, the form's iframe needs to be resized, which isn't completely clean yet.

How it works:

The Fieldgroup settings are added through regular hooks, as is the logic that adds the necessary field copies for processing the form and displaying previews.

"Multiplied" field instances are suffixed with _NUM, where NUM is an incremental integer starting from 1. So if you have add two fields named "surname" and "givenname" to a fieldgroup and check the "multiply" checkbox, the form will initially have "surname_1" and "givenname_1" field (I'm still considering changing that to make the risk to shoot oneself into the foot by having a regular "surname_1" field somewhere else in the form less likely).

When a "row" is added, the first row is cloned through JS and the counter in the fields' IDs, names and "for" attributes as well as the counter in the label are incremented before appending the copies to the Fieldset container in the form.

To keep backend and frontend in sync, a hidden field named [name of the fieldset]__multiplier_rows is added to the form. Both the backend and the frontend script use this to store and retrieve the number of "rows".

ToDo:

  • Naturally, add the option to store the data in real repeaters when saving to pages.
  • Do a lot of testing (and likely fixing).
  • Make a few things (like the "Add row" button label etc.) configurable in field(set) context.
  • Add a smooth API to retrieve the multiplied values as WireArrays.

The mandatory moving screenshot:


  • Like 13

Share this post


Link to post
Share on other sites

Hey! Sounds great!
I was looking for something like this for a client migration to PW for a long time.

I will check it out.

Share this post


Link to post
Share on other sites
20 hours ago, Peter Knight said:

Are there plans to also allow multipliers on the front end?

Thanks. I'm not completely sure if I read your question right. The screencap above shows the front end form (it's just included in the backend interface on the preview tab, but it's the same as if you embed your form anywhere on the frontend).

  • Like 1

Share this post


Link to post
Share on other sites

Hi @BitPoet,

I have tried your module and ran into a few error:

1. The "multiplied" rows are not getting the _NUM suffic for name and ID. Only on the label its adding #2

2. And Fatal error is thrown when checking the entries. This is within the ToPopulate function. If I Escape this row the error is gone. (I'm on the latest dev PW version)

//$hid->label = _("Number of rows");

3. When I can view the data in entries -> the multiplier doestn have a value and the orginal has the filled in value of the original. Probably caused by 1.


Share this post


Link to post
Share on other sites
1 hour ago, DL7 said:

I have tried your module and ran into a few error

Hi @DL7,

thanks for the feedback. I'll try to find the time tomorrow to give it a spin on the latest PW version so I can hopefully reproduce the behavior.

Share this post


Link to post
Share on other sites

Hi @BitPoet,

Thanks! Some additonal pointer: on an older version (3.0.36) I dont see this fatal error, but the increment still isnt working.

The below mentioned isnt working for me either on this older version. See the form initially starts with their "normal" ID/Name as been set in the settings

On 11/12/2018 at 7:54 PM, BitPoet said:

the form will initially have "surname_1" and "givenname_1" field

This works only if I add

if($child->name) $child->name .= "_1";

If I do this, then the increment is working perfectly. Problem I face then is that none of the entries fields are filled with values 🙂 I'm also looking into that. Fixed that by adding this same line to the populate hook:

if($child->name) $child->name .= "_1";



Share this post


Link to post
Share on other sites

@BitPoet One additional error I see: when using embed methode c, the JS is not triggered, this posting the form when clicking on add row. I'm checking it currently but havent found the problem yet.

Added this the init

		$this->addHookAfter('Page::render', $this, 'addScripts');

This as a function


    public function addScripts($event) {
		$page = $event->object;
		if($page->template == 'admin') return;
        $additionalHeadScripts = '<script type="text/javascript" src="'.wire('config')->urls->siteModules.'FormBuilderMultiplier/FormBuilderMultiplier.js"></script>';
		$event->return = str_replace("</head>", $additionalHeadScripts.'</head>', $event->return);
	}


And commented/removed the current JS append to get this fixed.

Share this post


Link to post
Share on other sites

Hi @BitPoet ,

I tried your module but have a few concerns about it. The field type Fieldset created for the forms works fine while trying out in the Preview section but on the frontend the Add Row button submits the form, I couldn't find event listeners on submit of the Add Row button to add the created Fieldset.

I'm currently using the module on ProcessWire 3.0.123.

Share this post


Link to post
Share on other sites
3 hours ago, Rajesh Khanna said:

I tried your module but have a few concerns about it. The field type Fieldset created for the forms works fine while trying out in the Preview section but on the frontend the Add Row button submits the form, I couldn't find event listeners on submit of the Add Row button to add the created Fieldset.

I'm currently using the module on ProcessWire 3.0.123.

Sounds like the FormBuilderMultiplier.js script isn't loaded. Which embed method do you use for your form?

Share this post


Link to post
Share on other sites
20 minutes ago, Rajesh Khanna said:

I have used the Template embed method.

Thanks for the quick feedback,the  template embed method should work. Is your module, by any chance, installed in a directory named differently than FormBuilderMultiplier inside site/modules? If yes, updating to the latest dev version should solve the issue.

Share this post


Link to post
Share on other sites
12 minutes ago, BitPoet said:

Thanks for the quick feedback,the  template embed method should work. Is your module, by any chance, installed in a directory named differently than FormBuilderMultiplier inside site/modules? If yes, updating to the latest dev version should solve the issue.

No the module is named properly as you stated.

Share this post


Link to post
Share on other sites
Just now, Rajesh Khanna said:

No the module is named properly as you stated.

What FormBuilder version do you use?

I'll try to set up a test environment to see if I can replicate the issue.

Meanwhile, do you see any errors in the browser's developer console?

Share this post


Link to post
Share on other sites
3 minutes ago, BitPoet said:

What FormBuilder version do you use?

I'll try to set up a test environment to see if I can replicate the issue.

Meanwhile, do you see any errors in the browser's developer console?

Thank you for your help!!

FormBuilder version is 0.3.2 and FormBuilder Fieldset Multiplier version is 0.0.6 .

I even tried the Custom embed method, but still can't see any event listener on the Add button.

In the console, I found this line "ReferenceError: $ is not defined FormBuilderMultiplier.js:5:1 " don't know what this is.

Share this post


Link to post
Share on other sites
4 minutes ago, Rajesh Khanna said:

In the console, I found this line "ReferenceError: $ is not defined FormBuilderMultiplier.js:5:1 " don't know what this is.

Ah, now I see. The script is missing the JQuery library (which is present in the backend).  For a short term solution, it should be sufficient to add the following lines within the <head> section of your template:

<?php $jq = $modules->get('JqueryCore'); ?>
<script src='<?php echo $config->urls->JqueryCore . "JqueryCore.js" ?>'></script>

I'll see about either making sure that jquery gets loaded by my module or rewriting the module script so it works without jquery in the long run.

  • Like 1

Share this post


Link to post
Share on other sites
18 hours ago, BitPoet said:

Ah, now I see. The script is missing the JQuery library (which is present in the backend).  For a short term solution, it should be sufficient to add the following lines within the <head> section of your template:


<?php $jq = $modules->get('JqueryCore'); ?>
<script src='<?php echo $config->urls->JqueryCore . "JqueryCore.js" ?>'></script>

I'll see about either making sure that jquery gets loaded by my module or rewriting the module script so it works without jquery in the long run.

Hi @BitPoet ,

I added the script within the <head> section and it worked. It'll be better if the jQuery gets loaded directly by the module.

Thanks a lot for your help, Cheers!!

  • Like 1

Share this post


Link to post
Share on other sites

Hi @BitPoet ,

I had another question to ask, how can I add the "multiplyLimit" function in the frontend. I have an input field where the user can add the number of input fields he/she wants to populate. Do check the attachment for reference.


Share this post


Link to post
Share on other sites
6 hours ago, Rajesh Khanna said:

I had another question to ask, how can I add the "multiplyLimit" function in the frontend. I have an input field where the user can add the number of input fields he/she wants to populate.

You can do that in an onchange handler for your number input. The limit is stored in the data-multiplier-limit of a hidden input with an ID of "Inputfield_" plus the name of the fieldset and "__multiplier_rows". If, for example, your "No Of Users" field is named "usercount", adding this snipped at the bottom of your template should do the trick:

<script>
$('#Inputfield_usercount').on('change', function(evt) {
  var newlimit = $(this).val();
  $('Inputfield_myinputs__multiplier_rows').data('multiplier-limit', newlimit);
});
</script>

This is untested, though. I'm heading out in a minute, but I'll take a closer look tomorrow. Did you add the "myinputs__multiplier_rows" label yourself? If not, then I missed to include the code to properly hide InputfieldHiddens in the module and need to fix that.

  • Like 1

Share this post


Link to post
Share on other sites

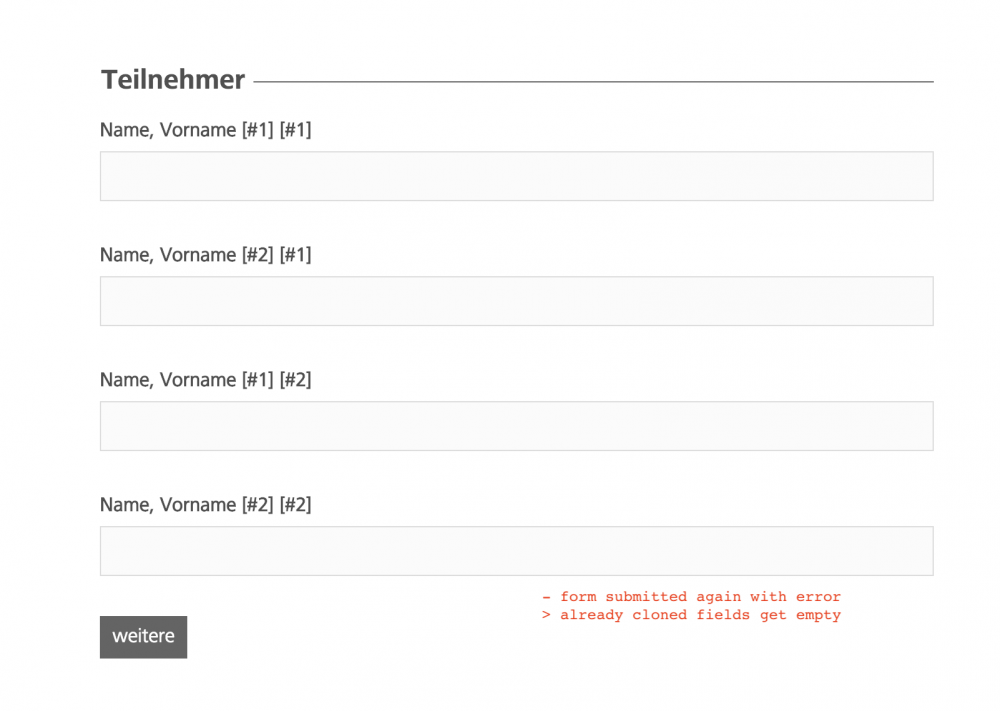

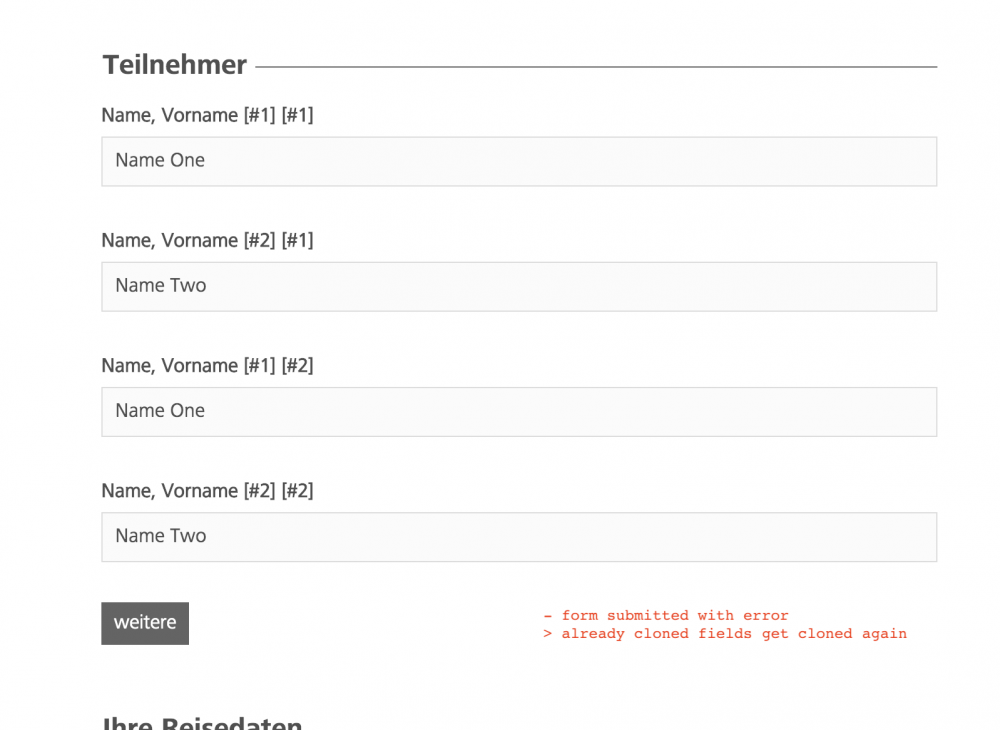

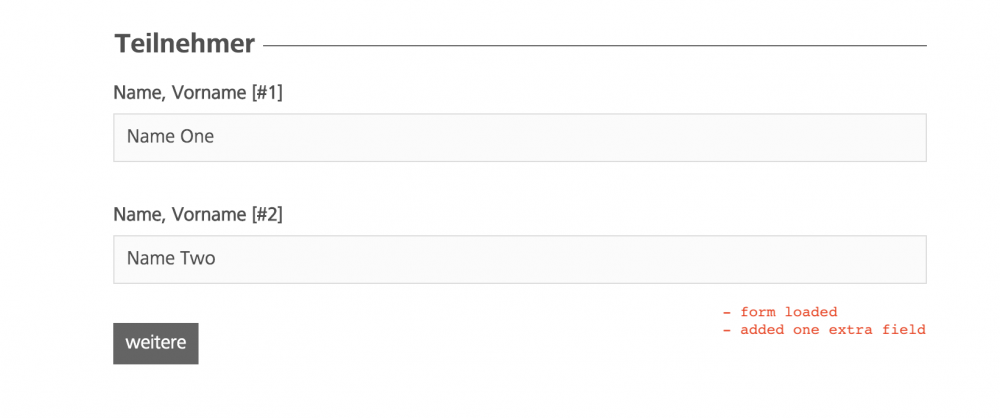

Hi BitPoet, thank you for that module, I'm quite happy cause I just recognized that it's not possible to use a multiplierfield in formbuilder forms – so your solution looks promising. I tried it with a single textfield and it works as expected. Except if the form validation forces the form to load again. Than the multiplier fields get messed up (cloned again) – and after a second submit error the fields are empty.
Is this maybe related to a version conflict or is the repopulation after submit-errors just not implemented?

  • ProcessWire: 3.0.123
  • FormBuilder 40/ states 39(?),
  • FormBuilder Fieldset Multiplier 0.0.6
  • Form embed used: template embed (option B)

Thanks for any help or hint…




  • Like 1

Share this post


Link to post
Share on other sites

Great addition to FB, thanks @BitPoet

Small problem when using FB40a with PW3.0.145 to remember form entries in a cookie. On revisiting the form displays the number of rows I've added but they're empty of data.

Share this post


Link to post
Share on other sites
On 11/7/2019 at 4:28 PM, sz-ligatur said:

Except if the form validation forces the form to load again. Than the multiplier fields get messed up (cloned again) – and after a second submit error the fields are empty.
Is this maybe related to a version conflict or is the repopulation after submit-errors just not implemented?

I need to take a look at that, but unfortunately, I'm not hopeful that I'll find enough time this week. Next week should be a bit less crazy though.

10 hours ago, psy said:

Small problem when using FB40a with PW3.0.145 to remember form entries in a cookie. On revisiting the form displays the number of rows I've added but they're empty of data.

I haven't found the time to update to the latest FB release, but it looks like soon will be a good time to do so 🙂 Stay tuned.

  • Like 2

Share this post


Link to post
Share on other sites

@BitPoet Thank you for your module!

I have a small question about how to change my validation hook when fields are repeated via FormBuilderMultiplier and the name of the fields changes e.g. will be increased by number.

I am getting the following notice (obviously the validation doesn't work, because the field name will not be increased with the ascending number created by FormBuilderMultiplier)

Notice: Trying to get property 'value' of non-object in /.../site/templates/form-builder.inc on line 104

$forms->addHookAfter('FormBuilderProcessor::processInputDone', function($event) {
  $form = $event->arguments(0);
  if($form->name != 'tour-registration') return;

  $date_of_rabies_vaccination = $form->get('date_of_rabies_vaccination');
  $dorv = $date_of_rabies_vaccination->value; // line 104 in form-builder.inc

  if($dorv > time()) {
    $date_of_rabies_vaccination->error(__("The date can not be in the future."));
  } else if($dorv > strtotime("-21 DAYS")) {
    $date_of_rabies_vaccination->error(__("The date of the last rabies vaccination must be at least 21 days ago."));
  } else {
    // vaccination date was more than 21 days ago
  }

});

So how can I iterate resp. increment the field name in my hook?

Thank you very much for your help.

My environment:
ProcessWire 3.0.161, FormBuilder 0.4.0 and FormBuilderMultiplier 0.0.6

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By jploch
      Hey folks,
      for a module (a pagebuilder based on PageTable) I need to save some settings as JSON. The values are saved for each page table item (a pw page). It's working well, but I am looking for ways to improve the structure I have. As I'm not that experienced with JSON, maybe someone more experienced can take a look and tell me if my approach is good practice.

      My goal is to make all the items accessible by page id, without looping over them (using objects instead of arrays):
      // access from template with pw page var $jsonObject->items->{$page}->cssClass; Her is an example of my JSON structure:
      { "items": { "3252": { "id": "3252", "cssClass": "pgrid-main", "breakpoints": { "base": { "css": { "grid-column-end": "auto", "grid-row-end": "auto", "grid-column-start": "auto", "grid-row-start": "auto", "align-self": "auto", "z-index": "auto", "padding-left": "60px", "padding-right": "60px", "padding-top": "60px", "padding-bottom": "60px", "background-color": "rgb(255, 255, 255)", "color": "rgb(0, 0, 0)" }, "size": "@media (min-width: 576px)", "name": "base" } } }, "3686": { "id": "3686", "cssClass": "test_global", "breakpoints": { "base": { "css": { "grid-column-end": "-1", "grid-row-end": "span 1", "grid-column-start": "1", "grid-row-start": "auto", "align-self": "auto", "z-index": "auto", "padding-left": "0px", "padding-right": "0px", "padding-top": "0px", "padding-bottom": "0px", "background-color": "rgba(0, 0, 0, 0)", "color": "rgb(0, 0, 0)" }, "size": "@media (min-width: 576px)", "name": "base" } } }, "3687": { "id": "3687", "cssClass": "block_editor-3687", "breakpoints": { "base": { "css": { "grid-column-end": "span 2", "grid-row-end": "span 1", "grid-column-start": "auto", "grid-row-start": "auto", "align-self": "auto", "z-index": "auto", "padding-left": "0px", "padding-right": "0px", "padding-top": "0px", "padding-bottom": "0px", "background-color": "rgba(0, 0, 0, 0)", "color": "rgb(0, 0, 0)" }, "size": "@media (min-width: 576px)", "name": "base" } } }, "3696": { "id": "3696", "cssClass": "block_editor-3696", "breakpoints": { "base": { "css": { "grid-column-end": "span 2", "grid-row-end": "span 1", "grid-column-start": "auto", "grid-row-start": "auto", "align-self": "auto", "z-index": "auto", "padding-left": "0px", "padding-right": "0px", "padding-top": "0px", "padding-bottom": "0px", "background-color": "rgba(0, 0, 0, 0)", "color": "rgb(0, 0, 0)" }, "size": "@media (min-width: 576px)", "name": "base" } } } }, "breakpointActive": "base", "breakpointActiveSize": "@media (min-width: 576px)" }
    • By jploch
      Fieldtype Page Table Grid
      This is a sneak preview of a side project I've been working on for quite some time now. A lot of work and thought has gone into this, so I will most likely release this as a commercial module at some point in the near future.

      As a designer (and developer) I get the appeal of a WYSIWYG editor. After playing around with some WYSIWYG page builder tools, I always felt something was wrong about them. So I decided to build my own PW version based on PageTable.

      Here is a small demo (using AdminThemeCanvas, but its working with other admin themes as well) :
      There is also a complete website that I built for a friend of mine using this module and some custom blocks.
      Concept
      This fieldtype shares a lot of features with PageTableExtended: it's also an extension of PageTable and renders the block templates in the backend and frontend (native PW templates and fields). You can also add your own css via module settings.
      The difference is, this fieldtype also gives you the ability to rearrange and resize elements in a visual way as well as enable inline editing for text, ckeditor and file fields. Similar (and promising) attempts have been made, but I wanted something based on native CSS grid instead of a CSS framework...so I built my own version. Most CSS frameworks are based on flexbox, which is great for layouting elements horizontally. With CSS grid, you can place elements horizontally and vertically, allowing for layouts that were not previously possible with CSS. Similar to webflow, this fieldtype uses javascript (in the backend) to let you manipulate CSS grid in a visual way to design fully responsive websites (or parts of them). It should still be possible to include a CSS framework if you like (just add the classes to your block markup and include the CSS via module settings).
      The CSS grid layout manipulations are saved in a single field as a JSON array and used to generate a dynamic stylesheet that you simply include in your main template (no inline styles). The styles are saved within the breakpoint you select and cascade down to smaller breakpoints. That means you can specify just the basic breakpoint and adjust other breakpoints if needed. The exception is the mobile breakpoint which will display everything in one column as a default (you can change the layout here too).
      The fieldtype also comes with an optional style panel to manipulate some additional CSS properties directly on the page. You can customize the panel or disable it completely from the module settings (and just use a CSS file that you include via module settings). The style panel is based on inputfields (nothing is saved to the database). This means that you just have to install the module and all fields are available to all blocks automatically (this can be customized). It also has the benefit that your installation is not flooded with fields; this module only installs one field.
      Don't want to give your customer all that power? Design features can be disabled for certain roles. The grid editor role can just edit the content and use the inline editing feature to edit content quickly. You can then also grant access individually to the style panel, resize or drag functionality.
      Features
      Blocks are just pages Blocks are defined by native PW templates and fields Manipulate CSS grid in a visual way to design fully responsive websites (or parts of them) Design features can be disabled for certain roles Inline editing of text, ckeditor and file fields The layout is 100% CSS grid (very small css file size) Simply drag and resize to manipulate grid items directly inside the backend Manipulate grid columns and rows directly on the page (use any number of columns you want) All style manipulations are saved as JSON and used to generate a dynamic stylesheet that you just include in your main template (no inline styles) Nested groups/grids (child pages of nested blocks are created under group parent) Global blocks work with page reference field (changes on one page, changes all blocks on all pages) Manual and auto placement of grid items Define custom icons for your blocks via native template settings (template -> advanced -> icon) Option to load lazysizes in the backend to enable lazy loading of assets with class lazyload Works with all default and ui-kit based admin themes If you have any questions or feedback, let me know.
    • By bernhard
      I built this module because I needed a versatile solution to replace tags and simple if-blocks in some E-Mails and PDF documents.
      If you only need to replace static tags (no if-conditions), then you can use default PW api and need no module:
      $str = "My favourite color is {color}."; $texttools = $sanitizer->getTextTools(); echo $texttools->populatePlaceholders($str, ['color' => 'red']); // output: My favourite color is red. Usage:
      See the two example Files in the folder /replacements


      Methods:
      replacementsTable()
      Renders an overview of all available replacements (see the example in the Module's config file:

      Create new Replacements:
      Simply copy the sample file and adopt to your needs.

      Download:
      https://gitlab.com/baumrock/RockReplacer
    • By bernhard
      DEPRECATED
      I'm using this module in several projects, but it will likely not see any updates in the future. I'm not happy with it and I'm looking for ways to develop better solutions. RockTabulator was my first try, but I'm also not 100% happy with that. The tabulator library is great, but my module implementation is not. I hope to get a good solution soon, but it will be a lot of work...
      ---
      Some of you might have followed the development of this module here: https://processwire.com/talk/topic/15524-previewdiscussion-rockdatatables/ . It is the successor of "RockDataTables" and requires RockFinder to get the data for the grid easily and efficiently. It uses the open source part of agGrid for grid rendering.

      WHY?
      ProcessWire is awesome for creating all kinds of custom backend applications, but where it is not so awesome in my opinion is when it comes to listing this data. Of course we have the built in page lister and we have ListerPro, but none of that solutions is capable of properly displaying large amounts of data, for example lists of revenues, aggregations, quick and easy sorts by the user, instant filter and those kind of features. RockGrid to the rescue 😉

      Features/Highlights:
      100k+ rows Instant (client side) filter, search, sort (different sort based on data type, eg "lower/greater than" for numbers, "contains" for strings) extendable via plugins (available plugins at the moment: fullscreen, csv export, reload, batch-processing of data, column sum/statistics, row selection) all the agGrid features (cell renderers, cell styling, pagination, column grouping etc) vanilla javascript, backend and frontend support (though not all plugins are working on the frontend yet and I don't plan to support it as long as I don't need it myself)
      Limitations:
      While there is an option to retrieve data via AJAX the actual processing of the grid (displaying, filtering, sorting) is done on the client side, meaning that you can get into troubles when handling really large datasets of several thousands of rows. agGrid should be one of the most performant grid options in the world (see the official example page with a 100k row example) and does a lot to prevent problems (such as virtual row rendering), but you should always have this limitation in mind as this is a major difference to the available lister options that do not have this limitation.
      Currently it only supports AdminThemeUikit and I don't plan to support any other admin theme.

      Download: https://gitlab.com/baumrock/FieldtypeRockGrid
      Installation: https://gitlab.com/baumrock/RockGrid/wikis/Installation
      Quikckstart: https://gitlab.com/baumrock/RockGrid/wikis/quickstart
      Further instructions: https://gitlab.com/baumrock/RockGrid/wikis/quickstart#further-instructions
      German Translation File: site--modules--fieldtyperockgrid--fieldtyperockgrid-module-php.json
      Changelog: https://gitlab.com/baumrock/FieldtypeRockGrid/raw/master/changelog.md

      Module status: alpha, License: MIT
      Note that every installation and uninstallation sends an anonymous google analytics event to my google analytics account. If you don't want that feel free to remove the appropriate lines of code before installation/uninstallation.

      Contribute:
      You can contribute to the development of this and other modules or just say thank you by
      testing, reporting issues and making PRs at gitlab liking this post buying me a drink: paypal.me/baumrock/5 liking my facebook page: facebook.com/baumrock hiring me for pw work: baumrock.com
      Support: Please note that this module might not be as easy and plug&play as many other modules. It needs a good understanding of agGrid (and JavaScript in general) and it likely needs some looks into the code to get all the options. Please understand that I can not provide free support for every request here in the forum. I try to answer all questions that might also help others or that might improve the module but for individual requests I offer paid support (please contact me via PM).

      Use Cases / Examples:
      Colored grid cells, Icons, Links etc. The Grid also has a "batcher" feature built in that helps communicating with the server via AJAX and managing resource intensive tasks in batches:

      Filters, PW panel links and instant reload on panel close:

      You can combine the grid with a chart library like I did with the (outdated) RockDataTables module:

    • By Paul Greinke
      Hi there. I wrote a custom module for one of my projects. In fact I maybe want to use my module in other projects too. In order to be variable and customizable  I need to implement some custom hooks into my module. So I can afterwards hook into the my functions in order to modify them to match the needs of the new project.
      I tried simply defining functions with the '__' prefix. But that did not work. I'm imagining something like the following:
      <?php class MyClass { public function ___someFunction() { // Do something } } // ready.php $this->addHookBefore('MyClass::someFunction', function($event) { // some customization }); Is there a way to accomplish that?
×
×
  • Create New...
