Cody Connor

plugins are not working for the InputfieldCKEditor module.

Recommended Posts

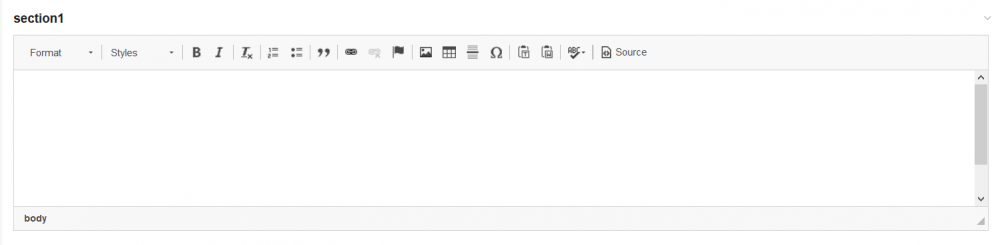

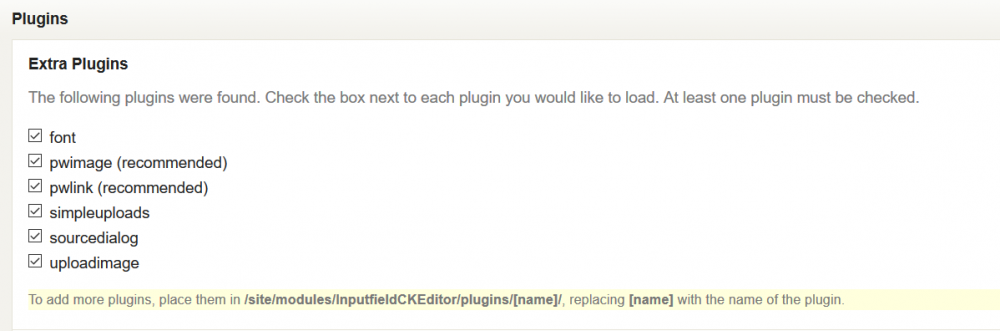

I installed the InputfieldCKEditor module and am using the ck editor in all of the fields on my processwire website.  I need to be able to drag images into the CKEditor field so I downloaded a CKEditor plugin called simpleuploads put it into /site/modules/InputfieldCKEditor/plugins/ and added the plugin to the field I am working on.  I have tried doing it many different ways and the plugins still are not working and I have no idea where to go from here.

I am working with processwire version 3.0.61.

I am using CKEditor version 4.4.2.



Share this post

Link to post
Share on other sites

I think your issue is not due to any general problem with adding plugins for CKEditor, but due to the fact that images in PW must be stored in an image field. CKEditor is a third-party tool so by itself it doesn't have any idea about PW image fields. Theoretically a person could make a custom CKEditor plugin that could add images to a PW image field but to my knowledge no such plugin is available. So for now you will need to first add your images to an image field and then add them to CKEditor from there.

  • Like 1

Share this post

Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By Robin S
      I got tired of having to open the link dialog in CKEditor in order to check where a link is pointing to, so made this simple plugin.
      Link Hover
      A plugin for CKEditor. Shows the href attribute of a link in a tooltip when the link is hovered. This saves you from having to open the link dialog in order to check where a link points to.

      This readme assumes installation in ProcessWire CMS.
      The plugin folder must be named "linkhover" – if necessary, rename the folder to remove the "-master" suffix added by GitHub. Copy the "linkhover" folder to /site/modules/InputfieldCKEditor/plugins/
      In the field settings for each CKEditor field that you want to activate the plugin for, check the "linkhover" checkbox at Input > Plugins > Extra Plugins
    • By neosin
      There are lots of great looking modules that I would like to use but I am hesitant to install them purely due to the lack of visual indication that they are compatible with PW v3+. Most of the ones I want to use say they are compatible with previous versions up to 2.7 so a few questions:
      Does this mean they are not compatible with v3 ? it would seem so since they lack the v3 tag If I try them and something doesn't work and I remove them are all traces removed or can they leave artifacts behind in the DB or filesystem? thanks in advance
    • By Jon
      Hello All,
      I have installed a simple test timestamp plugin (  which shows up in the Extra Plugin section of the field but its not showing up in the toolbar and isnt in the list of Availabe core toolbars items.
      Any ideas how I add this to the tool bar?
    • By maxi032
      I am new to PW and I am starting to like it but it is somehow hard to navigate in backend and to search for compatible modules. May I make a suggestion? When I am here: it would have been nice to be able to browse modules by compatibility version if I need to browse only those compatible with v3.x
    • By Sephiroth
      Hi, So today I will writing a small tutorial on developing templates in Processwire using Twig Template, Processwire is a highly flexible CMS which gives developers/designers/users options and allows easy extension of the platform. So here goes the tutorial
      What is Twig Template ?
      Simply put in my own words, Twig is a modern templating engine that compiles down to PHP code, unlike PHP, Twig is clean on the eyes , flexible and also quite *easy* to have dynamic layout site with ease ,without pulling your hair out. Twig is trusted by various platforms. It was created by the guys behind Symfony.
      Take this code as an example
      {% for user in users %} <h1>* {{ user }}</h1> {% endfor %} This will simply be the equivalent in PHP World
      <?php $userArray = ["Nigeria","Russia"]; foreach($userArray as $user): ?> <h1><?= $user ?></h1> <?php endforeach; The PHP code though looks simple enough however, you start to notice that you have to be concerned about the PHP tags by ensuring they are closed  properly , most times projects gets bigger and comes complex and harder to read/grasp, and also in PHP you can explicitly create variables in the template making it very hard to read as it grows and prone to getting messy WordPress is a major culprit when it comes to that regard.
      Have you ever wanted to created separate layouts for different pages and  break your sites into different parts e.g Sidebar, Comment Section, Header Section ? the regular approach would be to create individual pages for each section and simply add them as templates for the pages and with time, you can end up having tons of templates, however Twig allows you to easily inherit templates and also override the templates where you can inject content into the block easily. Don't worry if you don't understand the concept, the following parts will explain with an example of how to easily inherit layouts and templates.
      <!DOCTYPE html> <html lang="en"> <head> {{include("layout/elements/header.twig")}} </head> <body> <div class="container-fluid" id="minimal"> <header id="pageIntro"> <div class="bio_panel"> <div class="bio_section col-md-6"> <h1>Okeowo Aderemi</h1> <h2>{{ page.body }}</h2> </div> </div> <div class="clearfix"></div> </header> <section id="page-body"> <div class="container"> <div id="intro" class="col-md-7 col-lg-7"> <h1>About me</h1> <h2> {{ page.summary }} </h2> </div> {block name="content"}{/block} <a style="font-size:1.799783em; font-style:italic;color:#d29c23" href="{{pages.get('/notes').url }}">Read more articles</a> </div> <div class="clearfix"></div> </div> </section> </div> <footer> <div class="header-container headroom headroom--not-top headroom--pinned" id="header-container"> {{include("layout/elements/footer.twig")}} </div> </footer> </body> </html> This is basically a layout where we specify blocks and include other templates for the page, don't panic if you don't understand what is going on, I will simply break down the weird part as follows:
      This basically is similar to native PHP 'include', as it's name suggests it simply includes the templates and injects the content into the layout , nothing out of the ordinary here if you are already familiar with php's include function.
      {{ output }}
      This simply evaluates the expression and prints the value, this  evaluate expressions, functions that return contents , in my own short words it's basically the same as <?= output ?> except for the fact that it's cleaner to read.
      {% expression %}
      unlike the previous this executes statements such as for loops and other Twig statements.
      {% for characters in attack_on_titans %} <h1> {{characters}} </h1> {% endfor %} This  executes a for loop and within the for loop, it creates a context to which variables in that context can be referenced and evaluated, unlike dealing with the opening and closing PHP tags, Twig simply blends in with markup and makes it really quick to read.
      I will simply post the contents of both the header and footer so you can see the content of what is included in the layout
      <meta charset="utf-8"/> <meta content="IE=edge" http-equiv="X-UA-Compatible"/> <meta content="width=device-width, initial-scale=1" name="viewport"/> <title> {{ page.title }} </title> <link href=" {{config.urls.templates }}assets/css/bootstrap.min.css" rel="stylesheet"/> <link href="{{config.urls.templates }}assets/css/main.min.css" rel="stylesheet"/> <link rel='stylesheet' type='text/css' href='{{config.urls.FieldtypeComments}}comments.css' /> <link rel="stylesheet" href="{{config.urls.siteModules}}InputfieldCKEditor/plugins/codesnippet/lib/highlight/styles/vs.css"> <script type="text/javascript" src="{{config.urls.siteModules}}InputfieldCKEditor/plugins/codesnippet/lib/highlight/highlight.pack.js"></script> <script src="{{config.urls.templates }}assets/js/vendors/jquery-1.11.3.min.js"> </script> <script src="{{config.urls.templates }}assets/js/vendors/bootstrap.min.js"> </script> <script src="{{config.urls.FieldtypeComments}}comments.js"></script> <link rel="stylesheet" type='text/css' href="{{config.urls.templates}}js/jquery.fancybox.min.css"> <script src="{{config.urls.templates}}js/jquery.fancybox.min.js"></script> {block name="javascriptcodes"}{/block} footer.php
      <nav class="site-nav pull-right"> <div class="trigger"> <a class="page-link" href="{{pages.get('/about').url}}"> <span>{</span> About <span>}</span> </a> <a class="page-link" href="{{pages.get('/notes').url}}"> <span>{</span> Journals <span>}</span> </a> <a class="page-link" target="_blank" href=""> <span>{</span> Linkedin <span>}</span> </a> <a class="twitter page-link" target="_blank" href=""> <span>{</span> Twitter <span>}</span> </a> </div> </nav> There's nothing special here, other than twig simply injecting these fragments into the main layout , the next part is the most interesting and important concept and benefit that Twig has to offer
      {% block content %}{% endblock %}
      This tag simply creates a placeholder in which the content would be provided by the template inheriting this layout, in lay terms it simply means child templates will provide content for that block, the 'content' simply uses the name 'content' to refer to that specific block, so assuming we were to inherit this template it would simply look like this.
      Inheriting Template Layout
      {% extends 'layout/blog.twig' %} {% block content %} <div class="container blog-container"> <section class="blog"> <header class="blog-header"> <h1> {{page.title}} </h1> <h5 class="blog_date"> {{page.published|date("F d, Y")}} </h5> <br> </br> </header> <div class="blog_content"> <hr class="small" /> {{page.body}} <hr class="small" /> </div> </section> </div> {% endblock %} {% block nav %} <div class="col-md-4 col-xs-4 col-sm-4 prev-nav"> <a href="{{page.prev.url}}"> ← Prev </a> </div> <div class="col-md-4 col-xs-4 col-sm-4 home-nav"> <a href="{{homepage.url}}"> Home </a> </div> <div class="col-md-4 col-xs-4 col-sm-4 next-nav"> <a href="{{}}"> Next → </a> </div> {% endblock %} In this snippet you can easily notice how each blocks previously created in the header and layout are simply referenced by their names, by now you will notice that twig doesn't care how you arrange the order of each block, all Twig does is to get the contents for each blocks in the child templates and inject them in the layout theme, this allows flexible templating and also extending other layouts with ease.
      Twig in Processwire
      Thanks to @Wanze we have a Twig Module for Processwire and it's currently what i use to build PW solutions to clients
      The Modules makes it easy to not only use Twig in PW but also specify folders to which it reads the twig templates, and also injects Processwire objects into it, which is why i can easily make reference to the Pages object, another useful feature in this module is that you can use your existing template files to serve as the data provider which will supply the data to be used for twig template.
      take for example, assuming I wanted the homepage to display the top six blog posts on it, TemplateEngineTwig will simply load the home.php ( Depending on what you set as the template), it is also important that your twig file bears the same name as your template name e.g home.php will render into home.tpl here is an example to further explain my point.
      <?php //Get the Top 6 Blog Posts $found=$pages->find("limit=6,include=hidden,template=blog-post,sort=-blog_date"); $view->set("posts",$found);
      The $view variable is the TemplateEngine which in this case would be Twig, the set method simply creates a variables posts which holds the data of the blog posts, the method allows our template 'blog.twig' to simply reference the 'posts' variable in Twig Context. Here is the content of the 'blog.twig' template
      {% extends 'layout/blog.twig' %} {% block content %} <div class="block_articles col-md-5 col-lg-5"> {% for post in posts %} <div class="article_listing"> <span class="article_date"> {{post.published}}</span> <h2 class="article_title"> <a href="{{post.url}}">{{post.title}}</a> </h2> </div> {% endfor %} {% endblock %} So home.php sets the data to be used in home.tpl once Twig processes the templates and generates the output, twig takes the output from the block and injects it in the appriopriate block in the layout, this makes Processwire templating more flexible and fun to work with.
      The major advantage this has; is that you can easily inherit layouts and provide contents for them with ease, without the need of running into confusions when handling complex layout issues,an example could be providing an administrator dashboard for users on the template side without allowing users into the Processwire back-end. You can also come up with several layouts and reusable templates.
      Feel free to ask questions and any concerns  in this approach or any errors I might have made or overlooked.
