MoritzLost

TrelloWire - Turn your pages into Trello cards

Recommended Posts

TrelloWire

This is a module that allows you to automatically create Trello cards for ProcessWire pages and update them when the pages are updated. This allows you to setup connected workflows. Card properties and change handling behaviour can be customized through the extensive module configuration. Every action the module performs is hookable, so you can modify when and how cards are created as much as you need to. The module also contains an API-component that makes it easy to make requests to the Trello API and build your own connected ProcessWire-Trello workflows.

Warning: This module requires ProcessWire 3.0.167 which is above the current stable master release at the moment.

Features

  • All the things the module can do for you without any custom code:
    • Create a new card on Trello whenever a page is added or published (you can select applicable templates).
    • Configure the target board, target list, name and description for new cards.
    • Add default labels and checklists to the card.
    • Update the card whenever the page is updated (optional).
    • When the status of the card changes (published / unpublished, hidden / unhidden, trashed / restored or deleted), move the card to a different list or archive or delete it (configurable).
  • You can extend this through hooks in many ways:
    • Modifiy when and how cards are created.
    • Modify the card properties (Target board & list, title, description, et c.) before they are sent to Trello.
    • Create your own workflows by utilizing an API helper class with many convenient utility methods to access the Trello API directly.

Feedback & Future Plans

Let me know what you think! In particular:

  • If you find any bugs report them here or on Github, I'll try to fix them.
  • This module was born out of a use-case for a client project where we manage new form submissions through Trello. I'm not sure how many use-cases there are for this module. If you do use it, tell me about it!
  • The Trello API is pretty extensive, I'll try to add some more helper methods to the TrelloWireApi class (let me know if you need anything in particular).
  • I'll think about how the module can support different workflows that include Twig – talk to me if you have a use-case!
  • Next steps could be a dashboard to manage pages that are connected to a Trello card, or a new section in the settings tab to manage the Trello connection. But it depends on whether there is any interest in this 🙂

Links

Module configuration


  • Like 13
  • Thanks 1

Share this post


Link to post
Share on other sites

This sounds great, even though I don't use trello 🙂 A short screencast would be great to get a quick impression 🙂

  • Like 3

Share this post


Link to post
Share on other sites
28 minutes ago, bernhard said:

This sounds great, even though I don't use trello 🙂 A short screencast would be great to get a quick impression 🙂

And some background on why you built this would be really interesting too! Looks great!

  • Like 3

Share this post


Link to post
Share on other sites
1 hour ago, bernhard said:

This sounds great, even though I don't use trello 🙂 A short screencast would be great to get a quick impression 🙂

Thanks! I was hoping the screenshot would do that 😆 Maybe I can give the screencast a go this weekend ... though I'm just now realizing I don't even have a headset any more 😅

1 hour ago, elabx said:

And some background on why you built this would be really interesting too! Looks great!

Lockdown because of Covid-19 mostly 😅

No but really, the README on Github has two examples, and the first one is basically the client project that started this off. This project is a lead generation platform with multiple contact / data collection forms. Our client's team manages all requests on a Trello board. This works really well once everybody is used to it, they use many custom labels and lists to organize all requests / leads. Currently all the new leads are entered manually, but after the relaunch every request will create both a ProcessWire page and a Trello card for the lead. After additional data is entered through one of the forms, the cards are updates with more information and appropriate labels. This is what the status change handling options are for; if the ProcessWire page is trashed, the Trello card can be archived and so on ...

  • Like 3
  • Thanks 1

Share this post


Link to post
Share on other sites

Oh wow! I discovered Trello just last week (yes, more free time during lockdown...). We were planning to use it as a project management tool for my (non-tech) team to enriched the content of the website (yes, again, lockdown...). Basically, I created some lists : "to do", "done", "added to website". The module will allow me to create the page (unpublished) with an automated checklist (text, image, translations), so people will choose one card, assign to self and work on the subject. When everything will be checked, they will move to "done", until I added the new content to the website (I'm the only one having backend access and I want it stay like this).

So for now, it's working. And I like the fact I could add some automatic text without having to copy manually. Could I ask something? I'm not sure I understand what is wirePopulateStringTags
Do I can use this to pull out the creation date or the child pages?
Can it could be possible to add a trigger on "publishing" a page in status change handling?
And last question. I guess via a hook, I should be able to create a button to automating card creation for existing pages?

Thanks a lot!

Mel

  • Like 1

Share this post


Link to post
Share on other sites

Hi @mel47, I'm happy to hear that!

13 hours ago, mel47 said:

So for now, it's working. And I like the fact I could add some automatic text without having to copy manually. Could I ask something? I'm not sure I understand what is wirePopulateStringTags
Do I can use this to pull out the creation date or the child pages?

Yes, you can! You can use this to output fields from the page to the Trello card. For example, by default the card body contains a link to the page: {httpUrl}, this will be the page's url after parsing. You can use both custom fields as well as system fields. For example:

**Page title: {title}**

Page content:

{body}

Page was created at {created}

This approach is somewhat limited. For example, the {created} placeholder will output the raw timestamp, and as far as I'm aware there's no way to change that to a proper date format. But that's why all methods are hookable. For example, if you want to append the (properly formatted) creation date to the body of all cards (when they are created or updated), you can hook TrelloWireCard::setBody:

<?php
// site/ready.php
namespace ProcessWire;

wire()->addHookBefore('TrelloWireCard::setBody', function (HookEvent $e) {
    $body = $e->arguments(0);
    $card = $e->object;
    if ($card->page) {
        $body .= sprintf("\n\nCreated at: %s", date('Y-m-d', $card->page->created));
        $e->arguments(0, $body);
    }
});

You can hook different methods of TrelloWire or TrelloWireCard depending on when you want to modify the cards, there's a complete list of hookable methods in the README.



13 hours ago, mel47 said:

Can it could be possible to add a trigger on "publishing" a page in status change handling?

Currently the only things you can do through the module configuration when a page is published is (1) create a new card for this page or (b) restore the card associated with this page if it was previously archived. It's also possible to update the card whenever the page is saved, though that doesn't differentiate between status changes.

If you want to perform a specific action after a page is published (like, for example, tick one of the checklist items), you can do that through hooks and use the TrelloWireApi class to perform the action through the Trello API. If you need some help with that let me know what you want to do!

Quote

And last question. I guess via a hook, I should be able to create a button to automating card creation for existing pages?

Yes, you can create cards manually in your template files. In that case, I would first deactivate the automatic card creation through the configuration. Then you can create cards manually:

// replace with a check for your button
if ($buttonWasClicked) {
    $TrelloWire = $modules->get('TrelloWire');
    $page = wire('page');
    $card = $TrelloWire->buildCardData($page);
    // dont create cards for pages that are already associated with a card
    if (!$card->id) {
        $TrelloWire->createCardForPage($card, $page);
    }
}

Let me know if it's working for you! Something on my To-Do list for this module is to add some "recipes" for stuff like that 🙂

6 hours ago, bernhard said:

That's the old version of https://processwire.com/api/ref/wire-text-tools/populate-placeholders/ and it does what it says: Populate placeholders in a string with corresponding variables (thx for reminding me about that! 😄 ).

I think both methods are equivalent, wirePopulateStringTags just passes through to the populatePlaceholders method. Some of those methods are really well hidden in the documentation, those are super handy and should definitely be more visible!

  • Like 1

Share this post


Link to post
Share on other sites

Hi

Thanks for the answer. For now, I was able to create the button for existing pages. However I'm stuck with triggering after publishing a page. I want to move to a different list.

I'm there now, but I'm missing the part concerning retrieval of the lists. I tried different things but no success, I'm still learning hooks and API, I don't understand everything...

$this->pages->addHookAfter('publishReady', function(HookEvent $event) {
    $processor = $event->object;
    $page = $event->arguments('page');

    if($page->template != 'content') return;

    $TrelloWire = $processor->wire('modules')->get('TrelloWire');
    $card = $TrelloWire->buildCardData($page);

    $TrelloWire->moveCard($card->id, ?????);
});

Thanks for any help

Mel

Share this post


Link to post
Share on other sites
17 hours ago, mel47 said:

I'm there now, but I'm missing the part concerning retrieval of the lists. I tried different things but no success, I'm still learning hooks and API, I don't understand everything...

You need to know the ID of the list you want to move the card to. To get all lists of a board, you need to know the ID of that board first. In general, you can check the Trello API docs and perform the query you need using the TrelloWireApi class included in the module.

Take note that all the API methods are defined on the TrelloWireApi class, not TrelloWire itself. So you need to use $TrelloWire->api()->moveCard()!

For this particular case, the TrelloWireApi class has a helper method to retrieve both boards and lists associated with your account:

// get the module and the api helper class
$TrelloWire = wire('modules')->get('TrelloWire');
$TrelloWireApi = $TrelloWire->api();

// this will return an array of boards (with name and id)
$boards = $TrelloWireApi->boards();

// alternatively, you can use the target board defined through the module configuration
$boardId = $TrelloWire->TargetBoard;

// this returns an array of lists on the board
$lists = $TrelloWireApi->lists($boardId);

Once of you have the array of lists, take note of it's ID, this is what you need to move a card to it. You can do this dynamically by searching through the array and search for the correct name or whatever, but I'd just dump the array of lists, grab the ID you need and put it in a constant somewhere 🙂 This also saves an API call each time, and those actually have a noticable impact on performance because of network overhead.

$targetId = 'some-id'; // get this ID from the lists() method above!
$TrelloWireApi->moveCard($card->id, $targetId);

Let me know if something isn't working for you!

  • Thanks 1

Share this post


Link to post
Share on other sites

Thanks! Got it! Put it here if someone needed.

const ADDED_BOARD = '';  //put here the id as previously described by MoritzLost

$this->pages->addHookAfter('publishReady', function(HookEvent $event) {

    $processor = $event->object;
    $page = $event->arguments('page');

    if($page->template != 'content') return;

    $TrelloWire = wire('modules')->get('TrelloWire');
	$TrelloWireApi = $TrelloWire->api();

    $card = $TrelloWire->buildCardData($page);

	if ($card->id) {
   			 $TrelloWireApi->moveCard($card->id, ADDED_BOARD);
   			 $page->message($this->_('Moved Trello card to "Added" Board'));
	}
});

Mel

  • Like 1

Share this post


Link to post
Share on other sites

@mel47 Great 🤙 Though I think you have mixed up boards and lists; The method TrelloWireApi::moveCard only moves a card to a different list (within the same or a different board). So your constant ADDED_BOARD should probably be named ADDED_LIST instead to avoid confusion!

Share this post


Link to post
Share on other sites

Oups, too newbie with Trello... but it do what I wanted!

  • Like 1

Share this post


Link to post
Share on other sites

Hello @MoritzLost

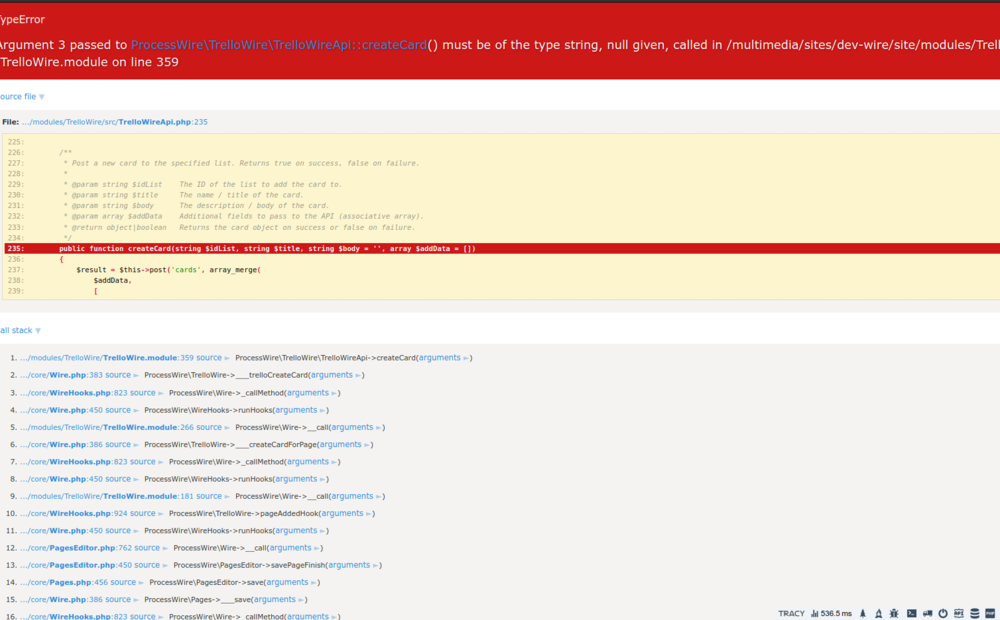

Found a bug. If you let empty "body" in config, I get this error. Put any text and problem solved.
Except that, everything working fine so far!
Thanks.


Share this post


Link to post
Share on other sites

@mel47 Thanks for the report! I have just pushed a fix for the issue in release 1.0.1. The title and body arguments to TrelloWireApi::createCard() are now nullable, and the body defaults to an empty string if not set. This also means that the Hook for TrelloWireCard::setBody now gets called even if the body is empty, which it wouldn't previously. I have also added a Changelog.

Let me know if you find any more bugs!

Share this post


Link to post
Share on other sites

Looks like a great module. I have it installed (API also looks like connected successfully, but none of the pages are being sent over to Trello as cards. All the  Is there a log that shows API requests or does anyone have a suggestion?

  • Like 1

Share this post


Link to post
Share on other sites

@maddmac Unfortunately, I recently started having problems with the Trello API as well, and right now I'm not sure that the module will work correctly. I have asked the support if they have changed something in their API-backend, but nothing came of it. Anyway, I have discovered some minor problems with the way the module sends it's requests as well as some major problems with ProcessWire's WireHttp class which prevents the module from connecting to the Trello API using cURL. Unfortunately, I wasn't able to get it to work using sockets or fopen as well. Now, I have submitted a pull request to ProcessWire's core that fixes the issues with the WireHttp class, but as of now it hasn't been merged yet. I have also started work on fixing the issues with the module itself - the dev version is available as a separate branch on Github. The problem is that this branch won't work at all without the fixes to the WireHttp class included in the pull request.

So right now, I'm not sure how to put out a release that will work for everyone. The likely path it that I will have to wait until the pull request is merged, and then push out a new release that includes all the related fixes, updating the required ProcessWire version to whichever version the pull request is available in.

Unfortunately, the only surefire way to get the module working correctly at the moment is to (1) apply the changes from my pull request to your installation of ProcessWire and (2) manually download the dev version from this branch of the TrelloWire module.

Sorry I can't provide a better solution at the moment. I'll keep this thread updated as soon as I can solve those issues!

BTW I also plan to add more logging / error reporting, but I first want to get the module working properly again ...

  • Like 2
  • Thanks 1

Share this post


Link to post
Share on other sites

Thank you sir. I've patched my install with your updates and its working. I haven't seen any issues caused by your changes to the core yet but I'll keep my eyes open. This could be a game changer for our process.

  • Like 1

Share this post


Link to post
Share on other sites

@maddmac That's great, good to know it's working in other environments as well ^^ Let me know if you run into any problems!

Share this post


Link to post
Share on other sites

Now that I have been playing around with this. I realized that I would like to utilize custom fields within the cards. Being able to send attached fields from the chosen PW template would make a great addition. Hoping this may be accomplished by a hook.

Fond this

https://stackoverflow.com/questions/49458850/setting-custom-field-values-on-a-card-with-the-trello-api

Share this post


Link to post
Share on other sites

@maddmac Thanks for the suggestion! As far as I can tell from the documentation on creating cards, custom fields can't be send in the same POST request the card is created with. But you can utilize a hook to add custom fields whenever a card is created / updated (see the hook documentation for the module). Something like this:

wire()->addHookAfter('TrelloWire::createCardForPage', function (HookEvent $e) {
	$TrelloWire = $e->object;
	$page = $e->arguments(1);
	$TrelloWireCard = $TrelloWire->buildCardData($page);

	$api = $TrelloWire->api();
	$cardId = $TrelloWireCard->id;
	$customFieldId = 'id-of-the-custom-field'; // replace with actual custom field id
	$api->put(
		sprintf('cards/%1$s/customField/%2$s/item', $cardId, $customFieldId),
		['custom-field-data' => $page->my_custom_field]
	);
});

Quick and untested, might need some adjustments. I haven't worked with custom fields yet, so I'm not sure what data a custom fields needs (the documentation is also handwavy about it), but this should be a good starting point.

A the moment this will only work correctly with the dev version of the module (branch JSON-request-body on Github) and with a core that includes the pull request mentioned above.

  • Like 1

Share this post


Link to post
Share on other sites

Important update: I've just updated to module to version 2.0.0 which fixes the issues with the API requests and makes the module work correctly again. However, the module now requires ProcessWire 3.0.167 or above! Read on below for an explanation.

Since publishing this module, I ran into several problems with API requests not working correctly. I found that the reason was both an issue with the way the module formats it's API requests, as well as some issues with ProcessWire's cURL implementation, which means that some requests wouldn't work correctly (namely PUT and DELETE requests). I then submitted a pull request to the ProcessWire core which fixes those issues, which were thankfully accepted by ryan. The fixes are now live and available in ProcessWire 3.0.167, and I've updated the TrelloWire module to fix some internal issues as well, so the module should now work correctly once again. Unfortunately, this means that ProcessWire versions below 3.0.167 won't work correctly.

New options: Switch the network implementation used by the module
There's a new configuration option available that you can use to force the module to use cURL, fopen or socket connections respectively. Check out the documentation for usage information!

If you can't update to 3.0.167 ...
You can still install and use the module on older ProcessWire versions (though the installation will ask for confirmation if you are below 3.0.167). The module will try to use fopen to connect to the API on any ProcessWire installation below 3.0.167, but I can't promise it will work correctly. You can also try socket connections using the configuration option above, but I couldn't get it to work in my test environment.

Let me know if you need support or something isn't working for you!

@maddmac Just tagging you to let you know you don't need to use the dev branch from Github anymore 🙂

  • Like 4
  • Thanks 1

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By joshua
      As we often use Matomo (former known as Piwik) instead of Google Analytics we wanted to embed Matomo not only in the template code but also via the ProcessWire backend.
      That's why I developed a tiny module for the implementation.
      Right now it's not heavily tested, so I would call it an "alpha" status.
      The module provides the possibility to connect to an existing Matomo installation with the classical site tracking and also via the Matomo Tag Manager.
      If you have also PrivacyWire installed, you can tell MatomoWire to only load the script, if the user has accepted cookies via PrivacyWire.
      To offer an Opt-Out solution you can choose between the simple Opt-Out iFrame, delivered by your Matomo installation, or a button to choose cookies via PrivacyWire.
      You'll find the current (alpha) state in this git repo: https://github.com/blaueQuelle/matomowire
      As soon as it's better tested, I'll add it to the module repo.
      I'm looking forward to hear your feedback!
    • By FireWire
      Hello community!

      I want to share a new module I've been working on that I think could be a big boost for multi-language ProcessWire sites.

      Some background, I was looking for a way for our company website to be efficiently translated as working with human translators was pretty laborious and a lack of updating content created a divergence between languages. I, and several other devs here, have talked about translation integrations and have recognized the power that DeepL has. DeepL is an AI deep learning powered service that delivers translation quality beyond any automated service available. After access to the API was opened up to the US, I built Fluency, a DeepL translation integration for ProcessWire.
      Fluency brings automated translation to every multi-language field in the admin, and also provides a translation tool allowing the user to translate their text to any language without it being inside a template's field. With Fluency you can:
      Translate any plain textarea or text input Translate any CKEditor content (yes, with markup) Translate page names for fully localized URLs on every page Translate your in-template translation function wrapped strings Translate modules DeepL offers translations to the following languages: English (US), English (UK), German, French, Spanish, Portuguese (EU), Portuguese (Brazil, Italian, Dutch, Polish, Russian, Japanese, Chinese (Simplified)
      Installation and usage is completely plug and play. Whether you're building a new multi-language site, need to update a site to multi-language, or simply want to stop manually translating a site and make any language a one-click deal, it could not be easier to do it. Fluency works by having you match the languages configured in ProcessWIre to DeepL's. You can have your site translating to any or all of the languages DeepL translates to in minutes (quite literally).
      Let's break out the screenshots...
      When the default language tab is shown, a message is displayed to let users know that translation is available. Clicking on each tab shows a link that says "Translate from English". Clicking it shows an animated overlay with the word "Translating..." cycling through each language and a light gradient shift. Have a CKEditor field? All good. Fluency will translated it and use DeepL's ability to translate text within HTML tags. CKEditor fields can be translated as easily and accurately as text/textarea fields.

      Repeaters and AJAX created fields also have translation enabled thanks to a JavaScript MutationObserver that searches for multi-language fields and adds translation as they're inserted into the DOM. If there's a multi-language field on the page, it will have translation added.

      Same goes for image description fields. Multi-language SEO friendly images are good to go.

      Creating a new page from one of your templates? Translate your title, and also translate your page name for native language URLs. (Not available for Russian, Chinese, or Japanese languages due to URL limitations). These can be changed in the "Settings" tab for any page as well so whether you're translating new pages or existing pages, you control the URLs everywhere.

      Language configuration pages are no different. Translate the names of your languages and search for both Site Translation Files (including all of your modules)

      Translate all of the static text in your templates as well. Notice that the placeholders are retained. DeepL is pretty good at recognizing and keeping non-translatable strings like that. If it is changed, it's easy to fix manually.

      Fluency adds a "Translate" item to the CMS header. When clicked this opens up a modal with a full translation tool that lets the user translate any language to any language. No need to leave the admin if you need to translate content from a secondary language back to the default ProcessWire language. There is also a button to get the current API usage statistics. DeepL account owners can set billing limitations via character count to control costs. This may help larger sites or sites being retrofitted keep an eye on their usage. This tool is available for all users with the page-edit permission.

      It couldn't be easier to add Fluency to your new or existing website. Simply add your API key and you're shown what languages are currently available for translation from/to as provided by DeepL. This list and all configuration options are taken live from the API so when DeepL releases new languages you can add them to your site without any work. No module updates, just an easy configuration. Just match the language you configured in ProcessWire to the DeepL language you want it to be associated with and you're done. Fluency also allows you to create a list of words/phrases that will not be translated which can prevent items such as brands and company names from being translated when they shouldn't


      Limitations:
      No "translate page" - Translating multiple fields can be done by clicking multiple translation links on multiple fields at once but engineering a "one click page translate" is not feasible from a user experience standpoint. The time it takes to translate one field can be a second or two, but cumulatively that may take much longer (CKEditor fields are slower than plain text fields). There may be a workaround in the future but it isn't currently on the roadmap. No "translate site" - Same thing goes for translating an entire website at once. It would be great, but it would be a very intense process and take a very (very) long time. There may be a workaround in the future but it isn't on the roadmap. No current support for Inline CKEditor fields - Handling for CKEditor on-demand hasn't been implemented yet, this is planned for a future release though and can be done. I just forgot about it because I've never really used that feature personally.. Alpha release - This module is in alpha. Releases should be stable and usable, but there may be edge case issues. Test the module thoroughly and please report any bugs via a Gitlab issue on the repository or respond here. Please note that the browser plugin for Grammarly conflicts with Fluency (as it does with many web applications). To address this issue it is recommended that you disable Grammarly when using Fluency, or open the admin to edit pages in a private window where Grammarly may not be loaded. This is an issue that may not have a resolution as creating a workaround may not be possible. If you have insight as to how this may be solved please visit the Gitlab page and file a bugfix ticket.
      Requirements:
      ProcessWire  3.0+ UIKit Admin Theme That's Fluency in a nutshell. A core effort in this module is to create it so that there is nothing DeepL related hard-coded in that would require updating it when DeepL offers new languages. I would like this to be a future-friendly module that doesn't require developer work to keep it up-to-date.
      It's Free
      This is my first real module and I want to give it back to the community as thanks. This is the best CMS I've worked with (thank you Ryan & contributors) and a great community (thank you dear reader). The only cost to use this is a subscription fee for the DeepL Pro API. Find out more and sign up here.
      Download & Feedback
      Download the latest version here
      https://gitlab.com/SkyLundy/fluency-processwire/-/archive/master/fluency-processwire-master.zip
      Gitlab repository:
      https://gitlab.com/SkyLundy/fluency-processwire
      File issues and feature requests here (your feedback and testing is greatly appreciated):
      https://gitlab.com/SkyLundy/fluency-processwire/-/issues

      Thank you! ¡Gracias! Ich danke Ihnen! Merci! Obrigado! Grazie! Dank u wel! Dziękuję! Спасибо! ありがとうございます! 谢谢你!

    • By horst
      ---------------------------------------------------------------------------------------------------------------------------------
        when working with PW version 2.6+, please use Pim2, not Pim!
        read more here  on how to change from the older to the newer version in existing sites
      ---------------------------------------------------------------------------------------------------------------------------------
      PageImage Manipulator, API for version 1 & 2

      The Page Image Manipulator is a module that let you in a first place do ImageManipulations with your PageImages. - And in a second place there is the possibility to let it work on any imagefile that exists in your servers filesystem, regardless if it is a 'known PW-image'.

      The Page Image Manipulator is a Toolbox for Users and Moduledevelopers. It is written to be as close to the Core ImageSizer as possible. Besides the GD-filterfunctions it contains resize, crop, canvas, rotate, flip, sharpen, unsharpMask and 3 watermark methods.



      How does it work?

      You can enter the ImageManipulator by calling the method pim2Load(). After that you can chain together how many actions in what ever order you like. If your manipulation is finished, you call pimSave() to write the memory Image into a diskfile. pimSave() returns the PageImage-Object of the new written file so we are able to further use any known PW-image property or method. This way it integrates best into the ProcessWire flow.

      The three examples above put out the same visual result: a grayscale image with a width of 240px. Only the filenames will slightly differ.

      You have to define a name-prefix that you pass with the pimLoad() method. If the file with that prefix already exists, all operations are skipped and only the desired PageImage-Object gets returned by pimSave(). If you want to force recreation of the file, you can pass as second param a boolean true: pim2Load('myPrefix', true).

      You may also want to get rid of all variations at once? Than you can call $pageimage->pim2Load('myPrefix')->removePimVariations()!

      A complete list of all methods and actions are at the end of this post.

      You may also visit the post with tips & examples for users and module developers.


      How to Install
      Download the module Place the module files in /site/modules/PageImageManipulator/ In your admin, click Modules > Check for new modules Click "install" for PageImageManipulator Done! There are no configuration settings needed, just install and use it. Download    (version 0.2.0)
      get it from the Modules Directory History of origins

      http://processwire.com/talk/topic/3278-core-imagemanipulation/


      ----------------------------------------------------------------------------------------------------------


      Page Image Manipulator - Methods

      * pimLoad  or  pim2Load, depends on the version you use!

      pimLoad($prefix, $param2=optional, $param3=optional)
      param 1: $prefix - (string) = mandatory! param 2: mixed, $forceRecreation or $options param 3: mixed, $forceRecreation or $options return: pim - (class handle) $options - (array) default is empty, see the next method for a list of valid options! $forceRecreation - (bool) default is false It check if the desired image variation exists, if not or if forceRecreation is set to true, it prepares all settings to get ready for image manipulation
      -------------------------------------------------------------------

      * setOptions

      setOptions(array $options)
      param: $options - (array) default is empty return: pim - (class handle) Takes an array with any number valid options / properties and set them by replacing the class-defaults and / or the global config defaults optionally set in the site/config.php under imageSizerOptions or imageManipulatorOptions.

      valid options are:
      quality = 1 - 100 (integer) upscaling = true | false (boolean) cropping = true | false (boolean) autoRotation =true | false (boolean) sharpening = 'none' | 'soft' | 'medium' | 'strong' (string) bgcolor = (array) css rgb or css rgba, first three values are integer 0-255 and optional 4 value is float 0-1, - default is array(255,255,255,0) thumbnailColorizeCustom = (array) rgb with values for colorize, integer -255 - 255 (this can be used to set a custom color when working together with Thumbnails-Module)
        outputFormat = 'gif' | 'jpg' | 'png' (Attention: outputFormat cannot be specified as global option in $config->imageManipulatorOptions!) set {singleOption} ($value)
      For every valid option there is also a single method that you can call, like setQuality(90), setUpscaling(false), etc.
      -------------------------------------------------------------------

      * pimSave

      pimSave()
      return: PageImage-Object If a new image is hold in memory, it saves the current content into a diskfile, according to the settings of filename, imagetype, targetFilename and outputFormat. Returns a PageImage-Object!
      -------------------------------------------------------------------

      * release

      release()
      return: void (nothing) if you, for what ever reason, first load image into memory but than do not save it, you should call release() to do the dishes! 😉 If you use pimSave() to leave the ImageManipulator, release() is called automatically.
      -------------------------------------------------------------------

      * getOptions

      getOptions()
      return: associative array with all final option values example:
      ["autoRotation"] bool(true) ["upscaling"] bool(false) ["cropping"] bool(true) ["quality"] int(90) ["sharpening"] string(6) "medium" ["targetFilename"] string(96) "/htdocs/site/assets/files/1124/pim_prefix_filename.jpg" ["outputFormat"] string(3) "jpg" get {singleOption} ()
      For every valid option there is also a single method that you can call, like getQuality(), getUpscaling(), etc. See method setOptions for a list of valid options!
      -------------------------------------------------------------------

      * getImageInfo

      getImageInfo()
      return: associative array with useful informations of source imagefile example:
      ["type"] string(3) "jpg" ["imageType"] int(2) ["mimetype"] string(10) "image/jpeg" ["width"] int(500) ["height"] int(331) ["landscape"] bool(true) ["ratio"] float(1.5105740181269) ["bits"] int(8) ["channels"] int(3) ["colspace"] string(9) "DeviceRGB" -------------------------------------------------------------------

      * getPimVariations

      getPimVariations()
      return: array of Pageimages Collect all pimVariations of this Pageimage as a Pageimages array of Pageimage objects. All variations created by the core ImageSizer are not included in the collection.
      -------------------------------------------------------------------

      * removePimVariations

      removePimVariations()
      return: pim - (class handle) Removes all image variations that was created using the PIM, all variations that are created by the core ImageSizer are left untouched!
      -------------------------------------------------------------------
      * width

      width($dst_width, $sharpen_mode=null)
      param: $dst_width - (integer) param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you prioritize the width, like with pageimage. Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * height

      height($dst_height, $sharpen_mode=null)
      param: $dst_height - (integer) param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you prioritize the height, like with pageimage. Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * resize

      resize($dst_width=0, $dst_height=0, $sharpen_mode=null)
      param: $dst_width - (integer) default is 0 param: $dst_height - (integer) default is 0 param: $auto_sharpen - (boolean) default is true was deleted with version 0.0.8, - sorry for breaking compatibility param: $sharpen_mode - (string) possible: 'none' | 'soft' | 'medium' | 'strong', default is 'soft' return: pim - (class handle) Is a call to resize where you have to set width and / or height, like with pageimage size(). Additionally, after resizing, an automatic sharpening can be done with one of the three modes.
      -------------------------------------------------------------------

      * stepResize

      stepResize($dst_width=0, $dst_height=0)
      param: $dst_width - (integer) default is 0 param: $dst_height - (integer) default is 0 return: pim - (class handle) this performs a resizing but with multiple little steps, each step followed by a soft sharpening. That way you can get better result of sharpened images.
      -------------------------------------------------------------------

      * sharpen

      sharpen($mode='soft')
      param: $mode - (string) possible values 'none' | 'soft'| 'medium'| 'strong' return: pim - (class handle) Applys sharpening to the current memory image. You can call it with one of the three predefined pattern, or you can pass an array with your own pattern.
      -------------------------------------------------------------------

      * unsharpMask

      unsharpMask($amount, $radius, $threshold)
      param: $amount - (integer) 0 - 500, default is 100 param: $radius - (float) 0.1 - 50, default is 0.5 param: $threshold - (integer) 0 - 255, default is 3 return: pim - (class handle) Applys sharpening to the current memory image like the equal named filter in photoshop.
      Credit for the used unsharp mask algorithm goes to Torstein Hønsi who has created the function back in 2003.
      -------------------------------------------------------------------

      * smooth

      smooth($level=127)
      param: $level - (integer) 1 - 255, default is 127 return: pim - (class handle) Smooth is the opposite of sharpen. You can define how strong it should be applied, 1 is low and 255 is strong.
      -------------------------------------------------------------------

      * blur

      blur()
      return: pim - (class handle) Blur is like smooth, but cannot called with a value. It seems to be similar like a result of smooth with a value greater than 200.
      -------------------------------------------------------------------

      * crop

      crop($pos_x, $pos_y, $width, $height)
      param: $pos_x - (integer) start position left param: $pos_y - (integer) start position top param: $width - (integer) horizontal length of desired image part param: $height - (integer) vertical length of desired image part return: pim - (class handle) This method cut out a part of the memory image.
      -------------------------------------------------------------------

      * canvas

      canvas($width, $height, $bgcolor, $position, $padding)
      param: $width = mixed, associative array with options or integer, - mandatory! param: $height = integer, - mandatory if $width is integer! param: $bgcolor = array with rgb or rgba, - default is array(255, 255, 255, 0) param: $position = one out of north, northwest, center, etc, - default is center param: $padding = integer as percent of canvas length, - default is 0 return: pim - (class handle) This method creates a canvas according to the given width and height and position the memory image onto it.
      You can pass an associative options array as the first and only param. With it you have to set width and height and optionally any other valid param. Or you have to set at least width and height as integers.
      Hint: If you want use transparency with rgba and your sourceImage isn't of type PNG, you have to define 'png' as outputFormat with your initially options array or, for example, like this: $image->pimLoad('prefix')->setOutputFormat('png')->canvas(300, 300, array(210,233,238,0.5), 'c', 5)->pimSave()
      -------------------------------------------------------------------

      * flip

      flip($vertical=false)
      param: $vertical - (boolean) default is false return: pim - (class handle) This flips the image horizontal by default. (mirroring)
      If the boolean param is set to true, it flips the image vertical instead.
      -------------------------------------------------------------------

      * rotate

      rotate($degree, $backgroundColor=127)
      param: $degree - (integer) valid is -360 0 360 param: $backgroundColor - (integer) valid is 0 - 255, default is 127 return: pim - (class handle) This rotates the image. Positive values for degree rotates clockwise, negative values counter clockwise. If you use other values than 90, 180, 270, the additional space gets filled with the defined background color.
      -------------------------------------------------------------------

      * brightness

      brightness($level)
      param: $level - (integer) -255 0 255 return: pim - (class handle) You can adjust brightness by defining a value between -255 and +255. Zero lets it unchanged, negative values results in darker images and positive values in lighter images.
      -------------------------------------------------------------------

      * contrast

      contrast($level)
      param: $level - (integer) -255 0 255 return: pim - (class handle) You can adjust contrast by defining a value between -255 and +255. Zero lets it unchanged, negative values results in lesser contrast and positive values in higher contrast.
      -------------------------------------------------------------------

      * grayscale

      grayscale()
      return: pim - (class handle) Turns an image into grayscale. Remove all colors.
      -------------------------------------------------------------------

      * sepia

      sepia()
      return: pim - (class handle) Turns the memory image into a colorized grayscale image with a predefined rgb-color that is known as "sepia".
      -------------------------------------------------------------------

      * colorize

      colorize($anyColor)
      param: $anyColor - (array) like css rgb or css rgba - but with values for rgb -255 - +255,  - value for alpha is float 0 - 1, 0 = transparent  1 = opaque return: pim - (class handle) Here you can adjust each of the RGB colors and optionally the alpha channel. Zero lets the channel unchanged whereas negative values results in lesser / darker parts of that channel and higher values in stronger saturisation of that channel.
      -------------------------------------------------------------------

      * negate

      negate()
      return: pim - (class handle) Turns an image into a "negative".
      -------------------------------------------------------------------

      * pixelate

      pixelate($blockSize=3)
      param: $blockSize - (integer) 1 - ??, default is 3 return: pim - (class handle) This apply the well known PixelLook to the memory image. It is stronger with higher values for blockSize.
      -------------------------------------------------------------------

      * emboss

      emboss()
      return: pim - (class handle) This apply the emboss effect to the memory image.
      -------------------------------------------------------------------

      * edgedetect

      edgedetect()
      return: pim - (class handle) This apply the edge-detect effect to the memory image.
      -------------------------------------------------------------------

      * getMemoryImage

      getMemoryImage()
      return: memoryimage - (GD-Resource) If you want apply something that isn't available with that class, you simply can check out the current memory image and apply your image - voodoo - stuff
      -------------------------------------------------------------------

      * setMemoryImage

      setMemoryImage($memoryImage)
      param: $memoryImage - (GD-Resource) return: pim - (class handle) If you are ready with your own image stuff, you can check in the memory image for further use with the class.
      -------------------------------------------------------------------

      * watermarkLogo

      watermarkLogo($pngAlphaImage, $position='center', $padding=2)
      param: $pngAlphaImage - mixed [systemfilepath or PageImageObject] to/from a PNG with transparency param: $position - (string) is one out of: N, E, S, W, C, NE, SE, SW, NW,
      - or: north, east, south, west, center, northeast, southeast, southwest, northwest
      default is 'center' param: $padding - (integer) 0 - 25, default is 5, padding to the borders in percent of the images length! return: pim - (class handle) You can pass a transparent image with its filename or as a PageImage to the method. If the watermark is bigger than the destination-image, it gets shrinked to fit into the targetimage. If it is a small watermark image you can define the position of it:
      NW - N - NE | | | W - C - E | | | SW - S - SE
      The easiest and best way I have discovered to apply a big transparency watermark to an image is as follows:
      create a square transparent png image of e.g. 2000 x 2000 px, place your mark into the center with enough (percent) of space to the borders. You can see an example here! The $pngAlphaImage get centered and shrinked to fit into the memory image. No hassle with what width and / or height should I use?, how many space for the borders?, etc.
      -------------------------------------------------------------------

      * watermarkLogoTiled

      watermarkLogoTiled($pngAlphaImage)
      param: $pngAlphaImage - mixed [systemfilepath or PageImageObject] to/from a PNG with transparency return: pim - (class handle) Here you have to pass a tile png with transparency (e.g. something between 150-300 px?) to your bigger images. It got repeated all over the memory image starting at the top left corner.
      -------------------------------------------------------------------

      * watermarkText

      watermarkText($text, $size=10, $position='center', $padding=2, $opacity=50, $trueTypeFont=null)
      param: $text - (string) the text that you want to display on the image param: $size - (integer) 1 - 100, unit = points, good value seems to be around 10 to 15 param: $position - (string) is one out of: N, E, S, W, C, NE, SE, SW, NW,
      - or: north, east, south, west, center, northeast, southeast, southwest, northwest
      default is 'center' param: $padding - (integer) 0 - 25, default is 2, padding to the borders in percent of the images length! param: $opacity- (integer) 1 - 100, default is 50 param: $trueTypeFont - (string) systemfilepath to a TrueTypeFont, default is freesansbold.ttf (is GPL & comes with the module) return: pim - (class handle) Here you can display (dynamic) text with transparency over the memory image. You have to define your text, and optionally size, position, padding, opacity for it. And if you don't like the default font, freesansbold, you have to point to a TrueTypeFont-File of your choice.
      Please have a look to example output: http://processwire.com/talk/topic/4264-release-page-image-manipulator/page-2#entry41989
      -------------------------------------------------------------------





      PageImage Manipulator - Example Output


    • By d'Hinnisdaël
      Format Datetime fields as Carbon instances.
      You can find the latest release and the complete readme on Github.
      Installation
      composer require daun/datetime-carbon-format Usage
      All Datetime fields will now be formatted as Carbon instances instead of strings. Some examples:
      // $page->date is a Datetime field // Output format: j/n/Y echo $page->date; // 20/10/2020 echo $page->date->add('7 days'); // 27/10/2020 echo $page->date->format('l, F j'); // Monday, October 20 echo $page->date->year; // 2020 echo $page->date->diffForHumans(); // 28 minutes ago Frontend only
      The ProcessWire admin seems to expect datetime fields to be strings. This module will only return Carbon instances on frontend page views.
      Date output format
      When casting a Carbon instance to a string (usually when outputting the field in a template), the field's date output format will be respected.
      Links
      GitHub • Readme • Carbon docs


      PS. I remember reading about a Carbon module in a recent newsletter, but couldn't find it anywhere. Was that you, @bernhard?
×
×
  • Create New...
