Does using dedicated module files help a lazy programmer?

Recommended Posts

Does using dedicated module files help a lazy programmer?

For a private helper module I wanted to built, I decided to use the possibilities of dedicated files (implemented in PW 2.5.5) and not to write all into a single module file. Until now, I totally missed or forgot about this possibility. To my excuse: on introduction I may have thought not to use it early in my modules to keep backward compatibility. And then totally forgot about it. :)

I allready use a tool for postprocessing in my sites. And I'm not familiar with all those popular node/grunt/gulp/npm/bower/and-what-else stuff out there. It looks to me a bit oversized for small to medium websites. But I also wanted not miss a comfortable, easy to use config for less and sass files, especially for those from frameworks like Bootstrap 3 / 4 or UIKit. So, what my toolbox should get added was a preprocessor (compiler) for sass (.scss) files first. I choosed the UIKit for the first shot.

The created files for a configurable module called PreAndPostProcessor and a process module called ProcessPreProcessor were:

  • PreAndPostProcessor.module
  • PreAndPostProcessor.info.json
  • PreAndPostProcessorConfig.php

  • ProcessPreProcessor.module
  • ProcessPreProcessor.info.json
  • ProcessPreProcessor.css
  • ProcessPreProcessor.js

As you can read about the differences to the old-schooled style in Ryans blog post, I focus on what I found out to be most useful for me. Starting with the Config file, I decided to use the $this->add() method in the __constructor(). It is the way what needs less code to define your inputfields for a configpage: just a collection of arrays with field or fieldset definitions.

Mandatory definitions are: type, name, label. Others are optional: description, notes, required, columnWidth, collapsed, showIf, ...
And, of course, you need the definitions specific to your fieldtypes (value, options, ...).

To group some fields into a fieldset, add a key called "children" to the fieldset array and add all field definitions to it as collection. Simple!

Spoiler

PreAndPostProcessorConfig.php:


<?php namespace ProcessWire;

class PreAndPostProcessorConfig extends ModuleConfig {

    public function __construct() {
        $this->add(array(
            array(
                'type' => 'Fieldset',
                'name' => '_compiler_conf',
                'label' => 'Compiler setup',
                'collapsed' => Inputfield::collapsedNo,
                'children' => array(
                    array(
                        'type' => 'select',
                        'name' => 'site_mode',
                        'label' => 'Set this to the mode how this site is used!',
                        #'description' => '',
                        'notes' => 'In production mode, the compiler ONLY get started if the output CSS-file is MISSING!',
                        'options' => array(
                            'PRODUCTION_MODE' => 'PRODUCTION_MODE',
                            'DEV_MODE' => 'DEV_MODE',
                        ),
                        'required' => true,
                        'columnWidth' => 100,
                    ),
                    array(
                        'type' => 'checkbox',
                        'name' => 'compiler_suppress_debugcomments',
                        'label' => 'Suppress SCSS-Source-Line_Numbers while in Debugmode',
                        'description' => 'When in Debugmode ($config->debug => true), the default behave is Nested output with SCSS-Source-Line_Numbers',
                        'notes' => 'Check this to override the default and select an output format below',
                        'showIf' => 'site_mode=DEV_MODE',
                        'columnWidth' => 100,
                    ),
                    array(
                        'type' => 'select',
                        'name' => 'compiler_output',
                        'label' => 'Select how the CSS should be generated',
                        'description' => '',
                        'notes' => 'default is: Nested',
                        'options' => array(
                            'Expanded' => 'Expanded',
                            'Nested' => 'Nested',
                            'Compact' => 'Compact',
                            'Compressed' => 'Compressed',
                            'Crunched' => 'Crunched'
                        ),
                        'required' => true,
                        'showIf' => 'site_mode=DEV_MODE, compiler_suppress_debugcomments=1',
                        'columnWidth' => 100,
                    ),
                )
            ),
            array(
                'type' => 'Fieldset',
                'name' => '_uikit_conf',
                'label' => 'Kit setup',
                'collapsed' => Inputfield::collapsedNo,
                'children' => array(
                    array(
                        'type' => 'select',
                        'name' => 'kit_type',
                        'label' => 'Select the Kit you are using',
                        #'description' => '',
                        'notes' => 'currently supported: uikit, (planned: bootstrap 4)',
                        'options' => array('uikit' => 'uikit'),
                        'value' => 'uikit',
                        'required' => true,
                        'columnWidth' => 50,
                    ),
                    array(
                        'type' => 'text',
                        'name' => 'kit_fullpath',
                        'label' => 'directory site path to your kits scss sources',
                        'description' => 'starts with "site/...", (your sitesfolder) without leading slash! But with trailing slash!',
                        'notes' => 'e.g.: site/templates/uikit/scss/ | must be writeable by PHP / PW!',
                        'placeholder' => 'site/templates/uikit/scss/',
                        'value' => '',
                        'required' => true,
                        'columnWidth' => 50,
                    ),
                    array(
                        'type' => 'text',
                        'name' => 'kit_variablesfilename',
                        'label' => 'Custom-Variablesfile (basename with extension)',
                        'description' => 'Relative to your scss kit start directory without leading slash!',
                        'notes' => 'e.g.: core/globalpwsettings.scss | must be writeable by PHP / PW!',
                        'placeholder' => 'core/globalpwsettings.scss',
                        'value' => '',
                        'required' => true,
                        'columnWidth' => 50,
                    ),
                    array(
                        'type' => 'text',
                        'name' => 'kit_startfilename',
                        'label' => 'startfile (basename with extension)',
                        'description' => 'Relative to your scss kit start directory without leading slash!',
                        'notes' => 'e.g.: uikit.scss',
                        'placeholder' => 'uikit.scss',
                        'value' => '',
                        'required' => true,
                        'columnWidth' => 50,
                    ),
                    array(
                        'type' => 'text',
                        'name' => 'kit_outputcssfile',
                        'label' => 'CSS-output-file (site path with extension!)',
                        'description' => 'starts with "site/...", (your sitesfolder) without leading slash!',
                        'notes' => 'e.g.: site/templates/styles/uikit.css | must be writeable by PHP / PW!',
                        'placeholder' => 'site/templates/styles/uikit.css',
                        'value' => '',
                        'required' => true,
                        'columnWidth' => 100,
                    ),
                )
            ),
        ));
    }
}

This is the complete config file! No other definitions or methods, also in the main module file are necessary. Unbelievable! :)



Another nice thing I discovered, is the use of the *.info.json files. So, this I have used before, but not like here. :)

The behave is like with the *Config.php files, - you write really less code, just arrays with key - value pairs and PW does the rest for you! Only difference here is, that you have to write it in JSON notation.

The ProcessPreProcessor.info.json file contains the neccessary and common parts: title, version, requires. And some others: permission, permissions, page and nav.

Page and nav are specific to Process modules. With page {name, parent, title} you define where PW should create you a page in the admin, and with nav, you can define a complete submenu for this page.

For those who are yet not familiar with the internal structure of Processmodules: you can navigate to a submenu entry by calling it: {pw-admin-url}/{main-module-url}/{submenu-url}/.

Calling the main menu url invokes the ___execute() method of the module. Calling a submenu url invoke the ___executeSubmenu() method. This all is really simple and straight forward. And it is really really helpful in cases like with the new toy for my toolbox. :)

The nav is a collection of arrays, each holding at least an url and a label. Thats enough for PW to implement the menu and submenu for you in the admin. But you also may define an icon too. Aaaand, you also can add your own custom key / value pairs to it. PW does not complain on it.

I have added a description. The nav was generated by parsing all core distribution scss files from the UIKit. They have a name and description in their first two lines. I programatically read this out and generated this nav notation for the info.json file:

Spoiler

ProcessPreProcessor.info.json:


{
    "title": "Process Pre-Processor",
    "summary": "",
    "version": 1,
    "author": "Horst Nogajski",
    "href": "",
    "icon": "",
    "requires": "ProcessWire>=3.0.18, PHP>=5.4.0, PreAndPostProcessor",
	"permission": "preprocessor",
	"permissions": {"preprocessor":"Run the Pre-Processor Config"},
	"page": {"name": "preprocessor", "parent": "setup", "title": "Pre-Processor"},
	"nav": 	[
                {"url":"globalpwsettings\/","label":"GlobalPWsettings","icon":"code","description":"Defines Sitewide Settings, also for other modules (LazySizes, etc)"},
                {"url":"alert\/","label":"Alert","icon":"code","description":"Defines styles for alert messages"},
                {"url":"animation\/","label":"Animation","icon":"code","description":"Provides a useful set of keyframe animations"},
                {"url":"article\/","label":"Article","icon":"code","description":"Defines styles for articles within your page"},
                {"url":"badge\/","label":"Badge","icon":"code","description":"Defines styles for badges"},
                {"url":"base\/","label":"Base","icon":"code","description":"Sets default values for HTML elements"},
                {"url":"block\/","label":"Block","icon":"code","description":"Defines styles to create horizontal layout blocks"},
                {"url":"breadcrumb\/","label":"Breadcrumb","icon":"code","description":"Defines styles for a breadcrumb navigation"},
                {"url":"button\/","label":"Button","icon":"code","description":"Defines styles for buttons"},
                {"url":"close\/","label":"Close","icon":"code","description":"Defines styles for a close button"},
                {"url":"column\/","label":"Column","icon":"code","description":"Provides a responsive, fluid and nestable columns for text and inline elements"},
                {"url":"comment\/","label":"Comment","icon":"code","description":"Defines styles for comment threads"},
                {"url":"contrast\/","label":"Contrast","icon":"code","description":"Utility class to adjust colors for dark or colored blocks"},
                {"url":"cover\/","label":"Cover","icon":"code","description":"Defines styles for images and videos to cover their container in a centered position"},
                {"url":"descriptionlist\/","label":"Descriptionlist","icon":"code","description":"Defines styles for description lists"},
                {"url":"dropdown\/","label":"Dropdown","icon":"code","description":"Defines styles for a toggleable dropdown"},
                {"url":"flex\/","label":"Flex","icon":"code","description":"Defines styles to create layouts with flexbox"},
                {"url":"form\/","label":"Form","icon":"code","description":"Defines styles for forms"},
                {"url":"grid\/","label":"Grid","icon":"code","description":"Provides a responsive, fluid and nestable grid"},
                {"url":"icon\/","label":"Icon","icon":"code","description":"Defines styles for icons"},
                {"url":"list\/","label":"List","icon":"code","description":"Defines styles for ordered and unordered lists"},
                {"url":"modal\/","label":"Modal","icon":"code","description":"Defines styles for modal dialogs"},
                {"url":"nav\/","label":"Nav","icon":"code","description":"Defines styles for list navigations"},
                {"url":"navbar\/","label":"Navbar","icon":"code","description":"Defines styles for the navigation bar"},
                {"url":"offcanvas\/","label":"Offcanvas","icon":"code","description":"Defines styles for an off-canvas sidebar that slides in and out of the page"},
                {"url":"overlay\/","label":"Overlay","icon":"code","description":"Defines styles for image overlays"},
                {"url":"pagination\/","label":"Pagination","icon":"code","description":"Defines styles for a navigation between pages"},
                {"url":"panel\/","label":"Panel","icon":"code","description":"Defines styles for reusable content areas"},
                {"url":"print\/","label":"Print","icon":"code","description":"Optimize page for printing"},
                {"url":"subnav\/","label":"Subnav","icon":"code","description":"Defines styles for the sub navigation"},
                {"url":"switcher\/","label":"Switcher","icon":"code","description":"Defines styles for the switcher"},
                {"url":"tab\/","label":"Tab","icon":"code","description":"Defines styles for a tabbed navigation"},
                {"url":"table\/","label":"Table","icon":"code","description":"Defines styles for tables"},
                {"url":"text\/","label":"Text","icon":"code","description":"Collection of useful text utility classes to style your content"},
                {"url":"thumbnail\/","label":"Thumbnail","icon":"code","description":"Defines styles for image thumbnails"},
                {"url":"thumbnav\/","label":"Thumbnav","icon":"code","description":"Defines styles for a thumbnail navigation"},
                {"url":"utility\/","label":"Utility","icon":"code","description":"Collection of useful utility classes to style your content"}
    ]
}



The (main) ___execute() method of the ProcessPreProcessor.module should present a submenu list with file infos. This now could be done by parsing the info.json file:

    public function ___execute() {
        // generate a navigation
        $dump = json_decode(file_get_contents(dirname(__FILE__) . '/' . basename(__FILE__, '.module') . '.info.json'));
        $nav  = $dump->nav;
        $out  = "\t\t\t<dl class='nav hnpp'>\n";
        foreach($nav as $obj) {
            $out .= "\t\t\t\t<dt><a href='./{$obj->url}'>{$obj->label}</a> ></dt>\n";
            $out .= "\t\t\t\t<dd>{$obj->description}</dd>\n";
        }
        $out .= "\t\t\t</dl>\n";
        return $out;
    }



To make it even more friendly for lazy devs, :), I created one method that is called from all sub-execute methods by simply passing their own name over into this function that loads and parse the scss file and displays its config page:

Spoiler

    public function ___executeGlobalPWsettings()  { return $this->run(__FUNCTION__); }  // Defines sitewide settings, also for other modules (LazySizes, etc)
    public function ___executeAlert()             { return $this->run(__FUNCTION__); }  // Defines styles for alert messages
    public function ___executeAnimation()         { return $this->run(__FUNCTION__); }  // Provides a useful set of keyframe animations
    public function ___executeArticle()           { return $this->run(__FUNCTION__); }  // Defines styles for articles within your page
    public function ___executeBadge()             { return $this->run(__FUNCTION__); }  // Defines styles for badges
    public function ___executeBase()              { return $this->run(__FUNCTION__); }  // Sets default values for HTML elements
    public function ___executeBlock()             { return $this->run(__FUNCTION__); }  // Defines styles to create horizontal layout blocks
    public function ___executeBreadcrumb()        { return $this->run(__FUNCTION__); }  // Defines styles for a breadcrumb navigation
    public function ___executeButton()            { return $this->run(__FUNCTION__); }  // Defines styles for buttons
    public function ___executeClose()             { return $this->run(__FUNCTION__); }  // Defines styles for a close button
    public function ___executeColumn()            { return $this->run(__FUNCTION__); }  // Provides a responsive, fluid and nestable columns for text and inline elements
    public function ___executeComment()           { return $this->run(__FUNCTION__); }  // Defines styles for comment threads
    public function ___executeContrast()          { return $this->run(__FUNCTION__); }  // Utility class to adjust colors for dark or colored blocks
    public function ___executeCover()             { return $this->run(__FUNCTION__); }  // Defines styles for images and videos to cover their container in a centered position
    public function ___executeDescriptionlist()   { return $this->run(__FUNCTION__); }  // Defines styles for description lists
    public function ___executeDropdown()          { return $this->run(__FUNCTION__); }  // Defines styles for a toggleable dropdown
    public function ___executeFlex()              { return $this->run(__FUNCTION__); }  // Defines styles to create layouts with flexbox
    public function ___executeForm()              { return $this->run(__FUNCTION__); }  // Defines styles for forms
    public function ___executeGrid()              { return $this->run(__FUNCTION__); }  // Provides a responsive, fluid and nestable grid
    public function ___executeIcon()              { return $this->run(__FUNCTION__); }  // Defines styles for icons
    public function ___executeList()              { return $this->run(__FUNCTION__); }  // Defines styles for ordered and unordered lists
    public function ___executeModal()             { return $this->run(__FUNCTION__); }  // Defines styles for modal dialogs
    public function ___executeNav()               { return $this->run(__FUNCTION__); }  // Defines styles for list navigations
    public function ___executeNavbar()            { return $this->run(__FUNCTION__); }  // Defines styles for the navigation bar
    public function ___executeOffcanvas()         { return $this->run(__FUNCTION__); }  // Defines styles for an off-canvas sidebar that slides in and out of the page
    public function ___executeOverlay()           { return $this->run(__FUNCTION__); }  // Defines styles for image overlays
    public function ___executePagination()        { return $this->run(__FUNCTION__); }  // Defines styles for a navigation between pages
    public function ___executePanel()             { return $this->run(__FUNCTION__); }  // Defines styles for reusable content areas
    public function ___executePrint()             { return $this->run(__FUNCTION__); }  // Optimize page for printing
    public function ___executeSubnav()            { return $this->run(__FUNCTION__); }  // Defines styles for the sub navigation
    public function ___executeSwitcher()          { return $this->run(__FUNCTION__); }  // Defines styles for the switcher
    public function ___executeTab()               { return $this->run(__FUNCTION__); }  // Defines styles for a tabbed navigation
    public function ___executeTable()             { return $this->run(__FUNCTION__); }  // Defines styles for tables
    public function ___executeText()              { return $this->run(__FUNCTION__); }  // Collection of useful text utility classes to style your content
    public function ___executeThumbnail()         { return $this->run(__FUNCTION__); }  // Defines styles for image thumbnails
    public function ___executeThumbnav()          { return $this->run(__FUNCTION__); }  // Defines styles for a thumbnail navigation
    public function ___executeUtility()           { return $this->run(__FUNCTION__); }  // Collection of useful utility classes to style your content

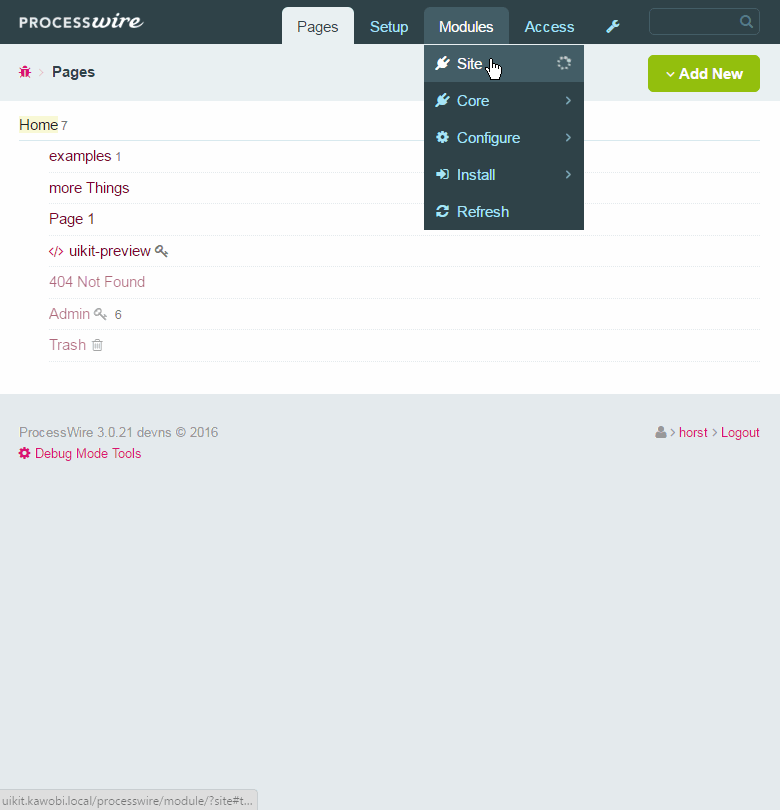

The first version work out nicely. Here is a screenshot of it:






... and to answer the initial question: Yes, it does!  :)



  • Like 17

Share this post


Link to post
Share on other sites

So we could build some profiles based on a supported frameworks  - ie: uiKit here - bundled with the module and play with it directly from PW ?



oh and WOW ! :o

  • Like 1

Share this post


Link to post
Share on other sites

thank you horst for the detailed insights!

how to you do all the scss compilation? any code snippets for that part? :)

  • Like 1

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By dimitrios
      Hello,
      this module can publish content of a Processwire page on a Facebook page, triggered by saving the Processwire page.
      To set it up, configure the module with a Facebook app ID, secret and a Page ID. Following is additional configuration on Facebook for developers:
      Minimum Required Facebook App configuration:
      on Settings -> Basics, provide the App Domains, provide the Site URL, on Settings -> Advanced, set the API version (has been tested up to v3.3), add Product: Facebook Login, on Facebook Login -> Settings, set Client OAuth Login: Yes, set Web OAuth Login: Yes, set Enforce HTTPS: Yes, add "http://www.example.com/processwire/page/" to field Valid OAuth Redirect URIs. This module is configurable as follows:
      Templates: posts can take place only for pages with the defined templates. On/Off switch: specify a checkbox field that will not allow the post if checked. Specify a message and/or an image for the post.
      Usage
      edit the desired PW page and save; it will post right after the initial Facebook log in and permission granting. After that, an access token is kept.

      Download
      PW module directory: http://modules.processwire.com/modules/auto-fb-post/ Github: https://github.com/kastrind/AutoFbPost   Note: Facebook SDK for PHP is utilized.


    • By kongondo
      FieldtypeRuntimeMarkup and InputfieldRuntimeMarkup

      Modules Directory: http://modules.processwire.com/modules/fieldtype-runtime-markup/
      GitHub: https://github.com/kongondo/FieldtypeRuntimeMarkup
      As of 11 May 2019 ProcessWire versions earlier than 3.x are not supported
      This module allows for custom markup to be dynamically (PHP) generated and output within a page's edit screen (in Admin).

      The value for the fieldtype is generated at runtime. No data is saved in the database. The accompanying InputfieldRuntimeMarkup is only used to render/display the markup in the page edit screen.

      The field's value is accessible from the ProcessWire API in the frontend like any other field, i.e. it has access to $page and $pages.

      The module was commissioned/sponsored by @Valan. Although there's certainly other ways to achieve what this module does, it offers a dynamic and flexible alternative to generating your own markup in a page's edit screen whilst also allowing access to that markup in the frontend. Thanks Valan!

      Warning/Consideration
      Although access to ProcessWire's Fields' admin pages is only available to Superusers, this Fieldtype will evaluate and run the custom PHP Code entered and saved in the field's settings (Details tab). Utmost care should therefore be taken in making sure your code does not perform any CRUD operations!! (unless of course that's intentional) The value for this fieldtype is generated at runtime and thus no data is stored in the database. This means that you cannot directly query a RuntimeMarkup field from $pages->find(). Usage and API

      Backend
      Enter your custom PHP snippet in the Details tab of your field (it is RECOMMENDED though that you use wireRenderFile() instead. See example below). Your code can be as simple or as complicated as you want as long as in the end you return a value that is not an array or an object or anything other than a string/integer.

      FieldtypeRuntimeMarkup has access to $page (the current page being edited/viewed) and $pages.

      A very simple example.
      return 'Hello'; Simple example.
      return $page->title; Simple example with markup.
      return '<h2>' . $page->title . '</h2>'; Another simple example with markup.
      $out = '<h1>hello '; $out .= $page->title; $out .= '</h1>'; return $out; A more advanced example.
      $p = $pages->get('/about-us/')->child('sort=random'); return '<p>' . $p->title . '</p>'; An even more complex example.
      $str =''; if($page->name == 'about-us') { $p = $page->children->last(); $str = "<h2><a href='{$p->url}'>{$p->title}</a></h2>"; } else { $str = "<h2><a href='{$page->url}'>{$page->title}</a></h2>"; } return $str; Rather than type your code directly in the Details tab of the field, it is highly recommended that you placed all your code in an external file and call that file using the core wireRenderFile() method. Taking this approach means you will be able to edit your code in your favourite text editor. It also means you will be able to type more text without having to scroll. Editing the file is also easier than editing the field. To use this approach, simply do:
      return wireRenderFile('name-of-file');// file will be in /site/templates/ If using ProcessWire 3.x, you will need to use namespace as follows:
      return ProcessWire\wireRenderFile('name-of-file'); How to access the value of RuntimeMarkup in the frontend (our field is called 'runtime_markup')

      Access the field on the current page (just like any other field)
      echo $page->runtime_markup; Access the field on another page
      echo $pages->get('/about-us/')->runtime_markup; Screenshots

      Backend





      Frontend


    • By kongondo
      Media Manager

      Released 31 March 2016
      https://processwireshop.pw/plugins/media-manager/
      Documentation
      http://mediamanager.kongondo.com/
      As of 10 May 2019 ProcessWire versions earlier than 3.x are not supported
      *******************************************************   ORIGINAL POST   *******************************************************
      API Example (frontend; will be added to documentation site)
      Accessing and outputting the contents of the MediaManager field(s) in your template is quite simple. The fields are accessed like many other ProcessWire fields. The fields return an array of type MediaManagerArray that need to be looped to output each media within. Assuming you created a field of type MediaManager named 'media', you can loop through it for a given page as shown below.
        @note: Each MediaManager object has the following 5 basic properties:   DATABASE (saved properties) 1. id => pageID of the page where the media lives (hidden in admin and not important to know about) 2. type => integer denoting media type (1=audio; 2=document; 3=image [for variations this will be 3x, where x is the number of the variation of an original image]; 4=video)   RUNTIME 3. typeLabel => user friendly string denoting media type (audio, document, image, video) 4. media => a ProcessWire Image/File Object including all their properties (ext, filesizeStr, height, width, description, tags, filename, basename, etc.) 5. title => title of media (@note: this is the title of the page where the media lives; may or may not be the same as the name of the media file itself). This can be used as a user-friendly name for your media $media = $page->media;// returns a MediaManagerArray. Needs to be looped through foreach ($media as $m) { echo $m->id;// e.g. 1234 (hidden page in /admin/media-manager/media-parent/) echo $m->type;// e.g. 3 (a media of type image) OR 1 (a media of type audio) echo $m->typeLabel;// e.g. 'document' (i.e. type would be 2) echo $m->title;// e.g. 'My Nice Trip' (whose media file could be my-nice-trip.mp4) /* @note: - $m->media returns an object; either a ProcessWire Image (for image media) or File object (for audio, document and video media) - This means you have access to all the properties of that object, e.g. ext, tags, description, url, filename, basename, width, height, modified, created, filesize, filesizeStr, etc as well as associated methods, e.g. size() */ echo $m->media->tags; } // only output images foreach ($media as $m) { if($m->typeLabel =='image') { echo "<img src='" . $m->media->size(100,75)->url . "'><br>"; } } // There's also a toString() method so you can do: echo $page->media; /* All your media will be output wrapped in appropriate HTML tags, i.e.: audio: <audio></audio>; document: <a></a>; image: <img>; video: <video></video>; */
      *******************************************************   ORIGINAL POST   *******************************************************

      The topic of a central media manager feature for ProcessWire has come up several times:

      https://processwire.com/talk/topic/4330-get-image-from-other-pages-via-images-field/
      https://processwire.com/talk/topic/4330-get-image-from-other-pages-via-images-field/?p=42578
      https://processwire.com/talk/topic/4330-get-image-from-other-pages-via-images-field/?p=42582
      https://processwire.com/talk/topic/425-file-manager/
      https://processwire.com/talk/topic/425-file-manager/?p=13802
      https://processwire.com/talk/topic/425-file-manager/?p=13861
      https://processwire.com/talk/topic/10763-asset-manager-asset-selector/

      More recently, regarding my Visual Page Selector module, I have been asked several times why the module does not have an in-built feature to upload images.

      There's two camps on the topic of a central media manager: those who like them (especially those coming in to PW from other CMSes) and those who don't like them (primarily because of the chaotic way some CMSes (dis)organise their media management) . I think that we can have our cake and eat it too! If done the right way, closely following the principles of and harnessing the power of ProcessWire, we can have a well-implemented, organised, feature-rich, site-wide media manager.

      Introducing Media Manager: (a commercial module)

      Alongside a number of modules I am currently working on (both free and commercial), I have been developing  a centralised Media Manager for ProcessWire. Before you cast the first stone, no, this is not going to be a one-large-media-bucket as in other CMS where it gets very messy very quickly . In the backend things are neatly stored away, yes, in pages. However, those are pages you will not see (just like repeater pages). Before anyone has a go at pages, remember a page is not that thing you see on the ProcessWire Tree (that's just its visual representation); A page is a record/row in the database    . For the end-user of Media Manager, all they will see is the 'familiar media bucket' to select their media from. As long as it works efficiently, I don't think they care about the wizardry behind the scenes  .

      The module allows for the comprehensive management of several media types:
      Audio Video Images Documents Each media type will be handled by its own sub-module so the user can pick and install/choose the type of media management they want.

      Features include:
      Access controls Centralized uploads of media Bulk management of media: tag, delete, describe, replace, etc. Bulk upload: zip; scan, single Quick upload in page edit mode Usage stats across pages (maybe?) Etc.. Would love to hear your thoughts and any feature suggestions. I think there's enough demand for such a module. If not, please let me know so that I can instead focus on other things  , thanks.

      How other CMS do it


      The more efficient (PW) way of doing it

    • By Robin S
      I have had this module sitting in a 95% complete state for a while now and have finally made the push to get it out there. Thanks to @teppo for his Hanna Code Helper module which I referred to and borrowed from during development.
      http://modules.processwire.com/modules/hanna-code-dialog/
      https://github.com/Toutouwai/HannaCodeDialog
      HannaCodeDialog
      A module for ProcessWire CMS/CMF. Provides a number of enhancements for working with Hanna Code tags in CKEditor. The main enhancement is that Hanna tags in a CKEditor field may be double-clicked to edit their attributes using core ProcessWire inputfields in a modal dialog.
      Requires the Hanna Code module.
      Installation
      Install the HannaCodeDialog module using any of the normal methods.
      For any CKEditor field where you want the "Insert Hanna tag" dropdown menu to appear in the CKEditor toolbar, visit the field settings and add "HannaDropdown" to the "CKEditor Toolbar" settings field.
      Module configuration
      Visit the module configuration screen to set any of the following:
      Exclude prefix: Hanna tags named with this prefix will not appear in the CKEditor toolbar dropdown menu for Hanna tag insertion. Exclude Hanna tags: Hanna tags selected here will not appear in the CKEditor toolbar dropdown menu for Hanna tag insertion. Background colour of tag widgets: you can customise the background colour used for Hanna tags in CKEditor if you like. Dialog width: in pixels Dialog height: in pixels Features
      Insert tag from toolbar dropdown menu
      Place the cursor in the CKEditor window where you want to insert your Hanna tag, then select the tag from the "Insert Hanna tag" dropdown.

      Advanced: if you want to control which tags appear in the dropdown on particular pages or templates you can hook HannaCodeDialog::getDropdownTags. See the forum support thread for examples .
      Edit tag attributes in modal dialog
      Insert a tag using the dropdown or double-click an existing tag in the CKEditor window to edit the tag attributes in a modal dialog.

      Tags are widgets
      Hanna tags that have been inserted in a CKEditor window are "widgets" - they have a background colour for easy identification, are protected from accidental editing, and can be moved within the text by drag-and-drop.
      ![Hanna tag widget]
      Options for tag attributes may be defined
      You can define options for a tag attribute so that editors must choose an option rather than type text. This is useful for when only certain strings are valid for an attribute and also has the benefit of avoiding typos.
      Add a new attribute for the Hanna tag, named the same as the existing attribute you want to add options for, followed by "__options". The options themselves are defined as a string, using a pipe character as a delimiter between options. Example for an existing attribute named "vegetables":
      vegetables__options=Spinach|Pumpkin|Celery|Tomato|Brussels Sprout|Potato You can define a default for an attribute as normal. Use a pipe delimiter if defining multiple options as the default, for example:
      vegetables=Tomato|Potato Dynamic options
      Besides defining static options as above, you can use one Hanna tag to dynamically generate options for another. For instance, you could create a Hanna tag that generates options based on images that have been uploaded to the page, or the titles of children of the page.
      Your Hanna tag that generates the options should echo a string of options delimited by pipe characters (i.e. the same format as a static options string).
      You will probably want to name the Hanna tag that generates the options so that it starts with an underscore (or whatever prefix you have configured as the "exclude" prefix in the module config), to avoid it appearing as an insertable tag in the HannaCodeDialog dropdown menu.
      Example for an existing attribute named "image":
      image__options=[[_images_on_page]] And the code for the _images_on_page tag:
      <?php $image_names = array(); $image_fields = $page->fields->find('type=FieldtypeImage')->explode('name'); foreach($image_fields as $image_field) { $image_names = array_unique( array_merge($image_names, $page->$image_field->explode('name') ) ); } echo implode('|', $image_names); Advanced: define or manipulate options in a hook
      You can hook HannaCodeDialog::prepareOptions to define or manipulate options for a Hanna tag attribute. Your Hanna tag must include a someattribute__options attribute in order for the hook to fire. The prepareOptions method receives the following arguments that can be used in your hook:
      options_string Any existing string of options you have set for the attribute attribute_name The name of the attribute the options are for tag_name The name of the Hanna tag page The page being edited If you hook after HannaCodeDialog::prepareOptions then your hook should set $event->return to an array of option values, or an associative array in the form of $value => $label.
      Choice of inputfield for attribute
      You can choose the inputfield that is used for an attribute in the dialog.
      For text attributes the supported inputfields are text (this is the default inputfield for text attributes so it isn't necessary to specify it if you want it) and textarea. Note: any manual line breaks inside a textarea are removed because these will break the CKEditor tag widget.
      Inputfields that support the selection of a single option are select (this is the default inputfield for attributes with options so it isn't necessary to specify it if you want it) and radios.
      Inputfields that support the selection of multiple options are selectmultiple, asmselect and checkboxes.
      You can also specify a checkbox inputfield - this is not for attributes with defined options but will limit an attribute to an integer value of 1 or 0.
      The names of the inputfield types are case-insensitive.
      Example for an existing attribute named "vegetables":
      vegetables__type=asmselect Descriptions and notes for inputfields
      You can add a description or notes to an attribute and these will be displayed in the dialog.
      Example for an existing attribute named "vegetables":
      vegetables__description=Please select vegetables for your soup. vegetables__notes=Pumpkin and celery is a delicious combination. Notes
      When creating or editing a Hanna tag you can view a basic cheatsheet outlining the HannaCodeDialog features relating to attributes below the "Attributes" config inputfield.
      Troubleshooting
      HannaCodeDialog includes and automatically loads the third-party CKEditor plugins Line Utilities and Widget. If you have added these plugins to your CKEditor field already for some purpose and experience problems with HannaCodeDialog try deactivating those plugins from the CKEditor field settings.
×
×
  • Create New...
