kunago Posted March 13, 2020 Share Posted March 13, 2020 I am using the integrated image field type with the possibility to crop images. It is an excellent feature. For one project I am trying to work with some images that need to be cropped with a fixed aspect ration, for instance 1:2. I can do the same in PHP but that does not show the user what will be the result before the image is saved and viewed. Also it is quite difficult for some to prepare images according to the aspect ratio required so nothing needed is cropped actually. I look at cropper that is a part of the ProcessPageEditImageSelect module. Cropper does have the possibility to set the aspect ratio but it is not used in the module itself. Is there any programatical way to force the cropper to use a specific aspect ratio without any need to mess around with core modules? Link to comment Share on other sites More sharing options...
dragan Posted March 13, 2020 Share Posted March 13, 2020 Hi @kunago and welcome to the PW forum. I am not sure if you refer to the actual "page-edit" / backend-GUI scenario, but I guess you do. What you can do is to duplicate the original image, and then crop that duplicated image, and save it as a variation. Or do you want to have a custom preview of all images in the page-edit instance to be always "aspect ratio 1:2"? (thumbnails) Link to comment Share on other sites More sharing options...
horst Posted March 13, 2020 Share Posted March 13, 2020 there is a thirdparty module available, that let you define different crops with absolute width x height sizes. It is called CroppableImage3. 3 Link to comment Share on other sites More sharing options...
kunago Posted March 13, 2020 Author Share Posted March 13, 2020 Hello again (by the way I really love ProcessWire), I am attaching a screenshot. Let's say I have that wide image but I need to crop an image in ration 3:1 (for example 900x300 px). I cannot force the highlight to stick to the needed ratio and resize proportionally. I am not sure the CroppableImage3 module can handle this as I looked at the description but thank you for the suggestion. Link to comment Share on other sites More sharing options...
horst Posted March 14, 2020 Share Posted March 14, 2020 @kunago: CroppableImages only purpose is the creation of variations with fixed aspect ratios. But you need to define it in pixels. Lets say you need a 3:1 result, your original image is 3000x3000 px, you need to define the outcoming pixeldimensions, for example 900x300, or 1800x600, or 3000x1000, ... Then you will get a fixed aspect ratio rectangle to select your desired area. The result then is rendered as variation with your defined pixel dimensions. Link to comment Share on other sites More sharing options...

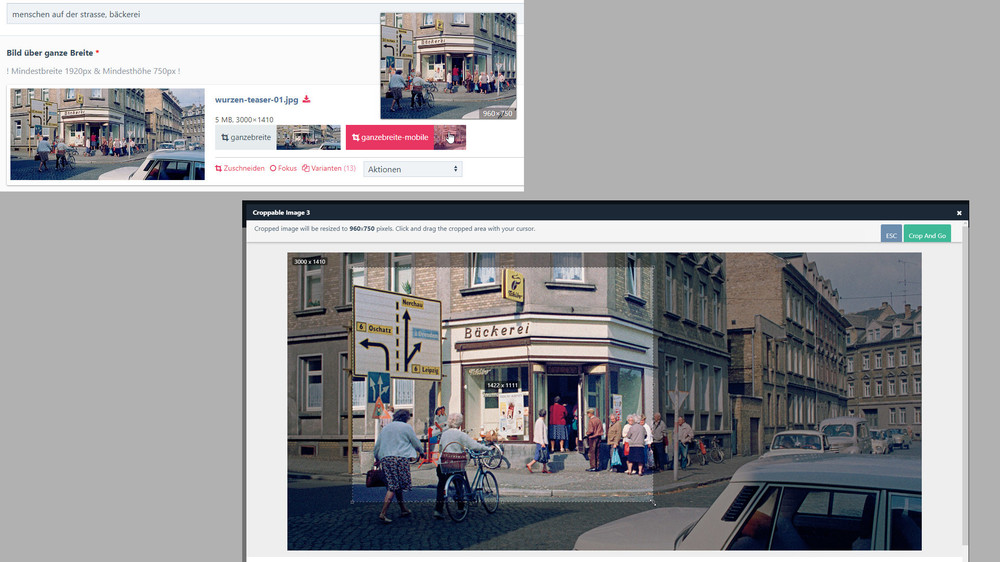

horst Posted March 14, 2020 Share Posted March 14, 2020 @kunago, here a screenshot with the selections for a 1920x750 px variation and a mobile version of 960x750 px: The live site of this example is https://www.die-wurzen-studie.de/ , where all of those fullwidth images (1920x750 px) have a mobile version of 960x750 px for the smaller screen resolutions. 1 Link to comment Share on other sites More sharing options...
kunago Posted March 14, 2020 Author Share Posted March 14, 2020 That's great. I implemented it in the meantime. It was very easy, took no time at all. Great, seriously. Just a side question - is there a way to translate the name of the crop preset? 1 Link to comment Share on other sites More sharing options...
horst Posted March 14, 2020 Share Posted March 14, 2020 1 hour ago, kunago said: Just a side question - is there a way to translate the name of the crop preset? You mean for multilanguage usage? Link to comment Share on other sites More sharing options...
kunago Posted March 14, 2020 Author Share Posted March 14, 2020 Yes, for multilanguage. Sorry, bad explanation. Link to comment Share on other sites More sharing options...
horst Posted March 14, 2020 Share Posted March 14, 2020 currently this is not supported, but I build a new version of the module and will try to include this, because it is a useful feature. Link to comment Share on other sites More sharing options...
Robin S Posted March 16, 2020 Share Posted March 16, 2020 @kunago, I think Croppable Image 3 is probably the best option for a lot of cases (e.g. you don't want the user to create a cropped image smaller than the given pixel dimensions), but inspired by your question I created this module: 4 Link to comment Share on other sites More sharing options...
