FieldtypeGridSpace by carlitoselmago

A grid selector for space design.

FieldtypeGridSpace

A grid selector for space design

An input field for placing DOM elements in horizontal grids based on Bootstrap grid system.

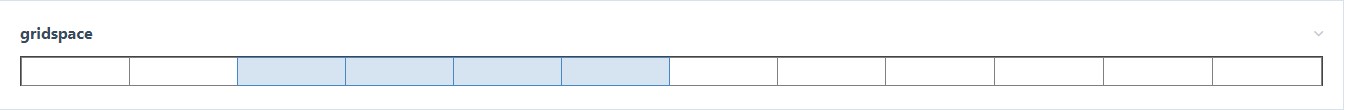

backend example

An example of use in frontend:


frontend example

PHP

foreach($items as $item){
  $gridspace=$item->gridspace;

  $gridspace=explode(",",$gridspace);
  $gridcolumnstart=intval($gridspace[0])+1;
  $gridcolumnend=intval(end($gridspace))+2;

  $grid='grid-column-start: '.$gridcolumnstart.'; grid-column-end:'.$gridcolumnend.';';

  content.='<div data-sort="'.$item->sort.'" style="'.$grid.'">Lorem ipsum<div>';
}

CSS (Use the percentage of width and the amount of columns, in this example 7 columns with a 14.28% of width - 100/7 -)

.grid {
  display: grid;
  grid-template-columns: 14.28% 14.28% 14.28% 14.28% 14.28% 14.28% 14.28%;;
}

HTML (generated in PHP)

<div class="grid">
  <div style="grid-column-start: 1;grid-column-end: 2;" >A</div>
  <div style="grid-column-start: 3;grid-column-end: 5;" >A</div>
  <div style="grid-column-start: 7;grid-column-end: 8;" >A</div>
</div>

Known bugs:


-The field cannot yet be used in repeater fields or twice at the same page.

Install and use modules at your own risk. Always have a site and database backup before installing new modules.
