Dimensions

Stores product dimensions (L×W×H) and weight with selectable units of measurement. Designed for e-commerce and catalog sites built on ProcessWire.

Author: Maxim Semenov
Website: smnv.org
Email: maxim@smnv.org

If this project helps your work, consider supporting future development: GitHub Sponsors or smnv.org/sponsor.

Features

• Four fields in one — length, width, height and weight stored as a single field value
• Flexible units — choose display units per field: mm, cm, dm, m, in, ft for length; g, kg, t, oz, lb for weight
• Normalized storage — values are always saved in mm and grams internally, so changing the display unit never corrupts existing data
• Unit conversion helpers — convert any dimension to any unit directly from the value object
• Volume calculation — volume() method returns L×W×H in the current length unit
• Optional weight field — can be hidden per-field if weight is not needed
• Selector engine support — find pages by dimension ranges using standard ProcessWire selectors
• Admin language — 28 languages for field labels in the page editor (configured globally in Modules → Configure)
• Clean admin UI — three dimension inputs arranged in a row with × separators, inline unit labels

Installation

1. Download or clone the repository into your site/modules/ directory:

cd site/modules
git clone https://github.com/mxmsmnv/FieldtypeDimensions.git

2. In the ProcessWire admin, go to Modules → Refresh, then find FieldtypeDimensions and click Install.
   InputfieldDimensions is installed automatically as a dependency.

3. Create a new field and set its type to Dimensions.

Configuration

Module-level (Modules → Configure → FieldtypeDimensions)

Supported languages: English, Deutsch, Français, Polski, Русский, Українська, 中文, Română, Español, Nederlands, Suomi, Svenska, Հայերեն, ქართული, Türkçe, 日本語, Afrikaans, Italiano, Čeština, Srpski, Lietuvių, Latviešu, Magyar, Ελληνικά, Български, Hrvatski, Azərbaycan, 한국어.

Per-field (Fields → Edit → your field)

Units Reference

Length — mm, cm, dm, m, in, ft

Weight — g, kg, t, oz, lb

Storage

Values are always persisted in millimeters (length/width/height) and grams (weight), regardless of the display unit configured on the field. Changing the unit setting on an existing field does not require data migration.

Template Usage

$dim = $page->dimensions; // DimensionsValue object

// String representation
echo $dim; // → "120 × 80 × 50 mm, 1.5 kg"

// Individual values (in the unit configured on the field)
echo $dim->length;       // 120
echo $dim->width;        // 80
echo $dim->height;       // 50
echo $dim->weight;       // 1500
echo $dim->length_unit;  // "mm"
echo $dim->weight_unit;  // "g"

// On-the-fly unit conversion
echo $dim->lengthIn('cm');  // → 12.0
echo $dim->widthIn('in');   // → 3.1496...
echo $dim->weightIn('kg');  // → 1.5

// Volume in current length units
echo $dim->volume();  // → 480000 (mm³)

// Checks
if ($dim->hasDimensions()) { /* all three size fields are filled */ }
if (!$dim->isEmpty())      { /* at least one value is set */ }

// Export to array
$arr = $dim->toArray();
// ['length' => 120, 'width' => 80, 'height' => 50, 'weight' => 1500,
//  'length_unit' => 'mm', 'weight_unit' => 'g']

Selector Engine

// Products longer than 100 mm (DB values are always in mm/g)
$items = $pages->find("template=product, dimensions.length>100");

// Products heavier than 500 g
$heavy = $pages->find("template=product, dimensions.weight>500");

// Combined dimension filter
$boxes = $pages->find("template=product, dimensions.length<=300, dimensions.height<=200");

Supported subfields for selectors: length, width, height, weight.

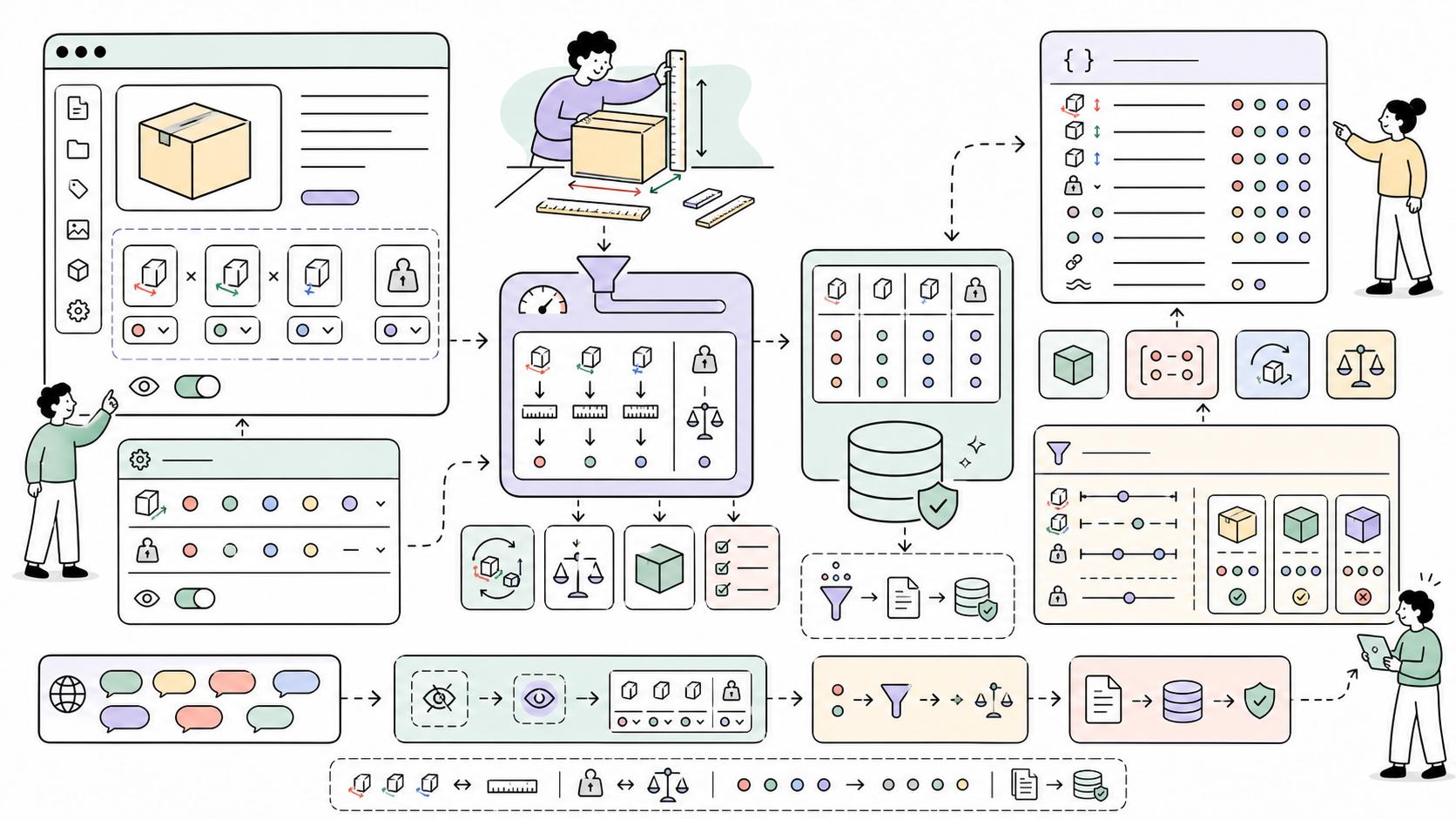

How It Works

The Fieldtype stores four numeric columns in a dedicated database table. On load, raw mm/gram values are converted to the field's configured display unit via a linear factor. On save, the entered values are multiplied back to mm/grams before writing to the database. All conversion factors are defined as constants in FieldtypeDimensions and are available statically for use in custom code.

The DimensionsValue object extends WireData and is the value returned when accessing the field on any page. It carries both the numeric values and the active unit identifiers, and exposes conversion and formatting helpers.

Security Notes

• No user-supplied strings are executed or eval'd — all inputs are cast to float before use
• Database writes use PDO prepared statements with bound parameters
• The module does not register any hooks on the admin or frontend outside of standard Fieldtype/Inputfield lifecycle methods

Author

Maxim Semenov
smnv.org · GitHub @mxmsmnv

License

MIT License. See LICENSE for details.
